Ignition Switch

Component ID: 351
Component : SWITCH-IGNITION

Connector:

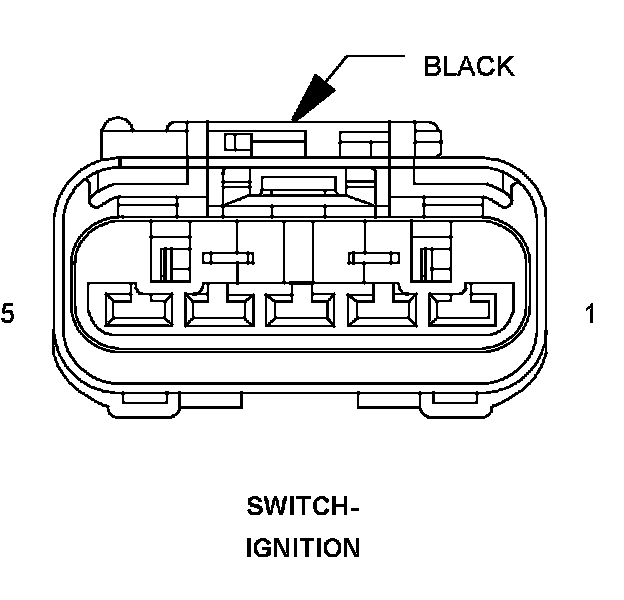

Name : SWITCH-IGNITION
Color : BLACK
# of pins : 5




Pin Description Circuit
1 GROUND Z910 20BK/WT
Pin Description Circuit
1 GROUND Z914 20BK
2 IGNITION SWITCH SENSE G20 20VT/BR
3 IGNITION SWITCH OUTPUT (RUN-START) F20 20PK/WT
4 - -
5 FUSED B(+) A106 18LB/RD
