Sensor-Side Impact-Left 1

Component ID: 318
Component : SENSOR-SIDE IMPACT-LEFT 1

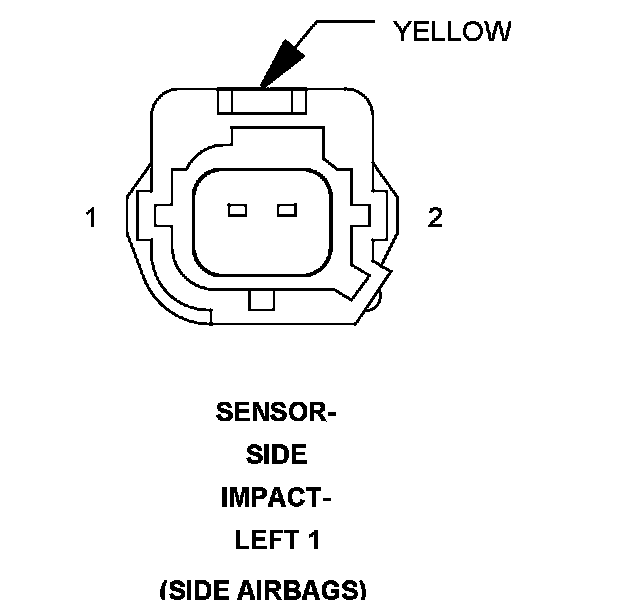

Connector:
Name : SENSOR-SIDE IMPACT-LEFT 1
Color : YELLOW
# of pins : 2
Qualifier : (SIDE AIRBAGS)




Pin Description Circuit
1 LEFT SIDE IMPACT SENSOR 1 GROUND R15 20LG/BR
2 LEFT SIDE IMPACT SENSOR 1 SIGNAL R13 20LG/TN

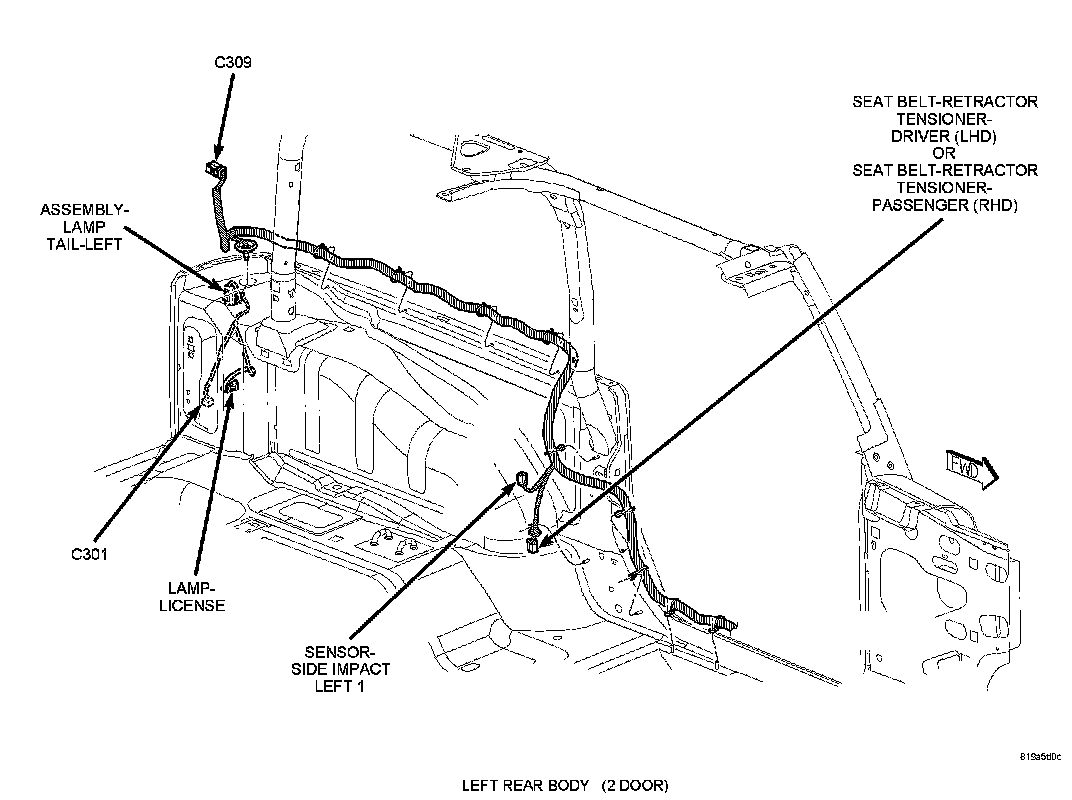

Component Location - 17

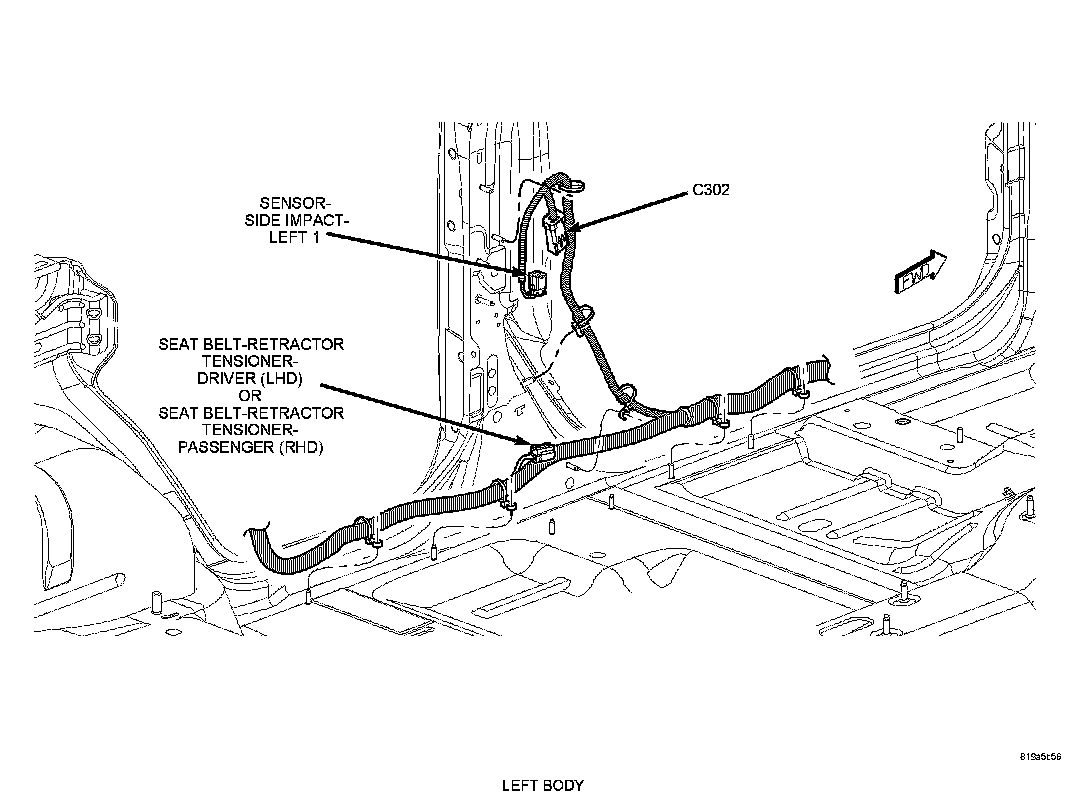

Component Location - 23
