Neutral Safety Switch

Component ID: 345
Component : SWITCH-CLUTCH INTERLOCK

Connector:
Name : SWITCH-CLUTCH INTERLOCK
Color : BLACK
# of pins : 3
Qualifier : (MTX)




Pin Description Circuit
1 CLUTCH UPSTOP SIGNAL T26 18DG/LB
2 CLUTCH INTERLOCK SIGNAL T141 18YL/OR
3 GROUND Z905 18BK

Component Location - 5




Component Location - 6

Fig. 6:

Component Location - 8

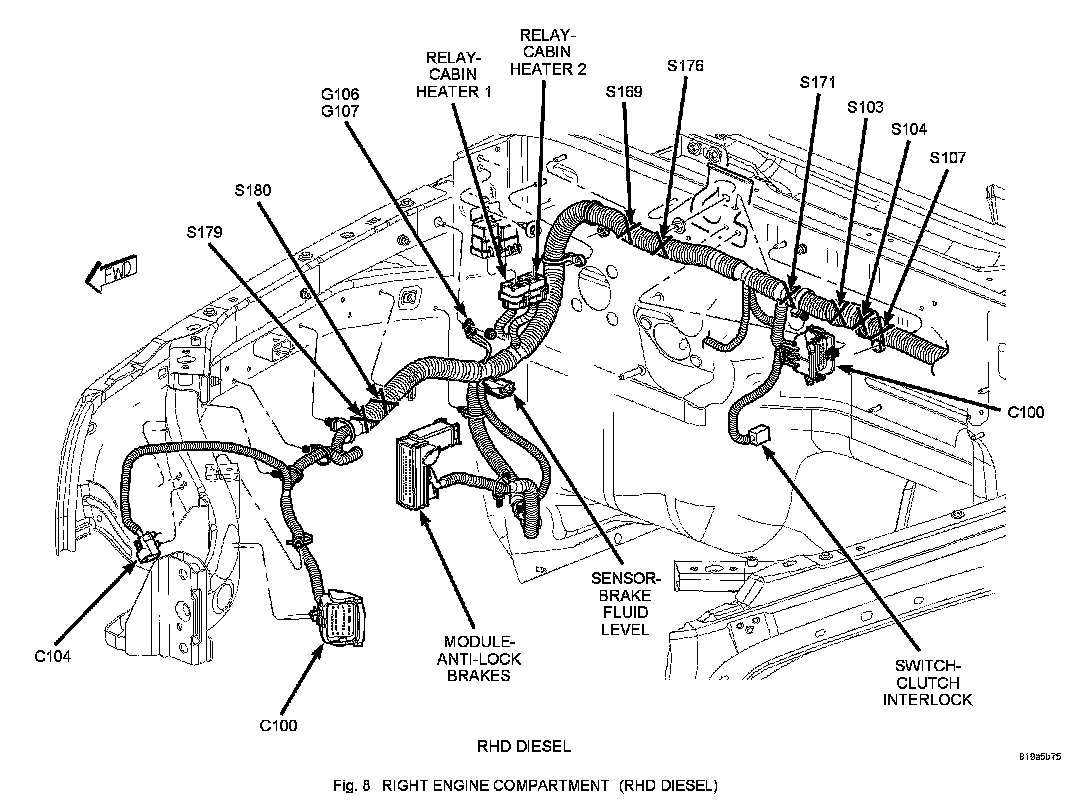

Fig. 8:

Component Location - 11

Fig. 11:
