Motor-Window-Right Front

Component ID: 168

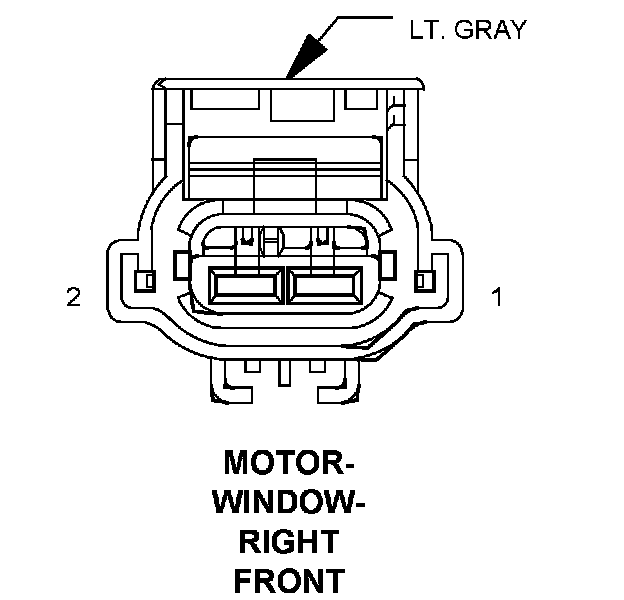

Component : MOTOR-WINDOW-RIGHT FRONT

Connector:
Name : MOTOR-WINDOW-RIGHT FRONT
Color : LT. GRAY
# of pins : 2




Pin Description Circuit
1 RIGHT FRONT WINDOW DRIVER (DOWN) Q22 14VT/WT
2 RIGHT FRONT WINDOW DRIVER (UP) Q12 14BR/LB
