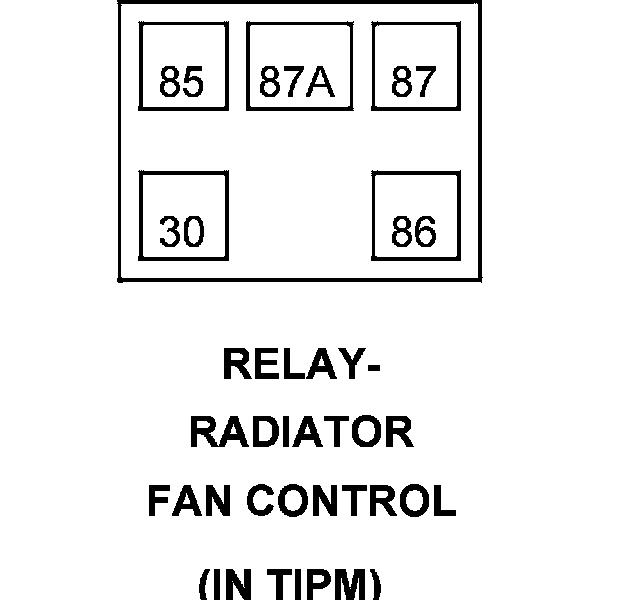

Relay-Radiator Fan Control

Component ID: 182
Component : RELAY-RADIATOR FAN CONTROL

Connector:
Name : RELAY-RADIATOR FAN CONTROL
Color :
# of pins : 0




30 FUSED B(+) INTERNAL
85 FUSED B(+) INTERNAL
86 RAD FAN CONTROL RELAY CONTROL INTERNAL
87 RAD FAN CONTROL RELAY OUTPUT N23 10DB/DG
87A - -
