Sensor-Seat Track Position-Driver

Component ID: 312
Component : SENSOR-SEAT TRACK POSITION-DRIVER

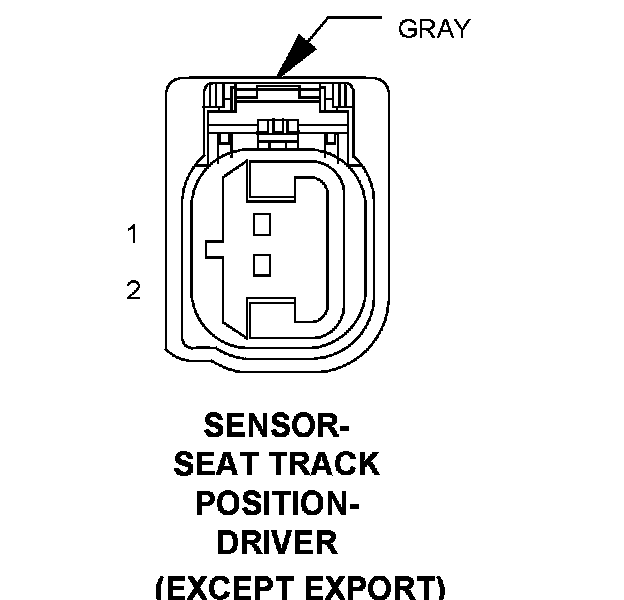

Connector:
Name : SENSOR-SEAT TRACK POSITION-DRIVER
Color : GRAY
# of pins : 2
Qualifier : (EXCEPT EXPORT)




Pin Description Circuit
1 DRIVER SEAT TRACK POSITION SENSOR SIGNAL R261 20LB/WT
2 DRIVER SEAT TRACK POSITION SENSOR SUPPLY R263 20LB/VT

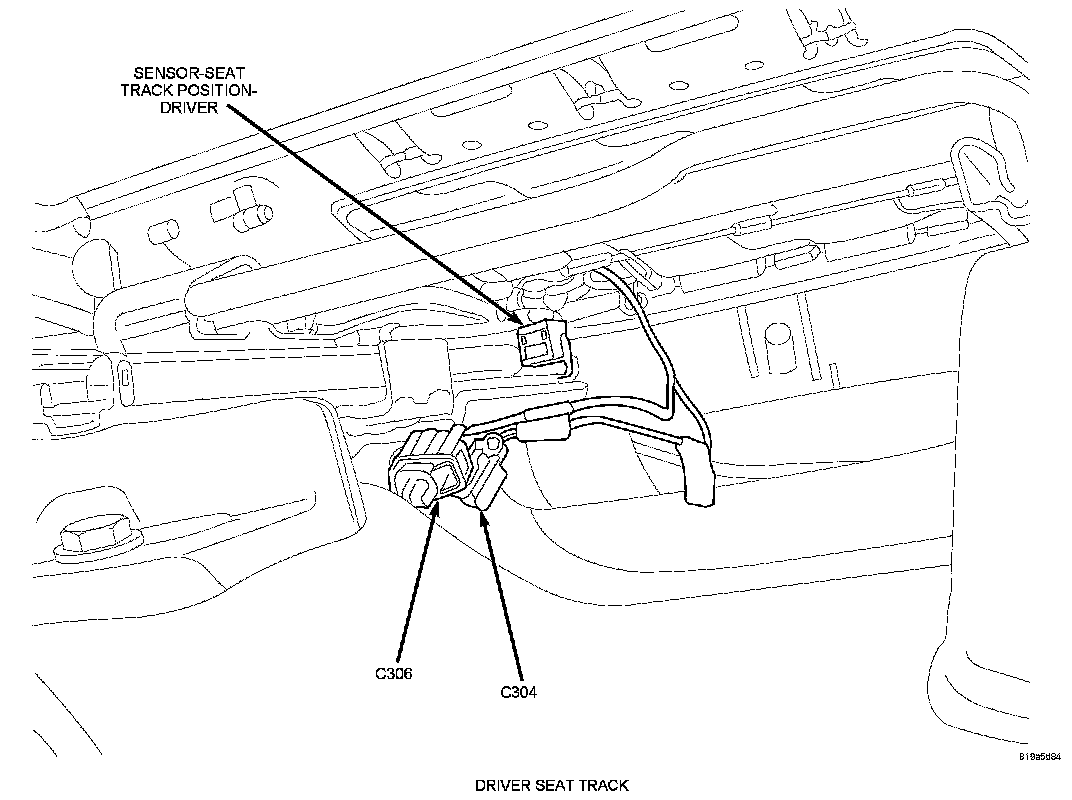

Component Location - 26
