Steering Angle Sensor, Traction Control

Component ID: 320

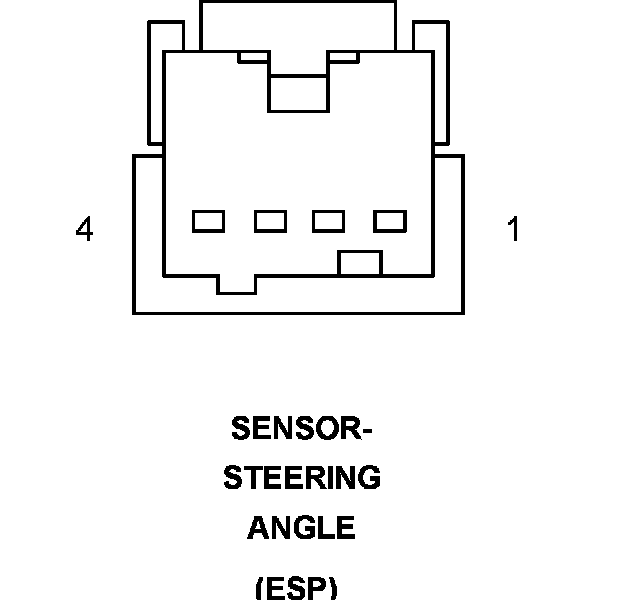

Component : SENSOR-STEERING ANGLE

Connector:
Name : SENSOR-STEERING ANGLE
Color :
# of pins : 4
Qualifier : (ESP)




Pin Description Circuit
1 CAN C BUS (+) D65 20WT/LG
2 CAN C BUS (-) D64 20WT/LB
3 GROUND Z910 20BK/WT
4 FUSED RUN/START RELAY OUTPUT F943 18PK/LG
