Transmission Control System Relay, A/T

Component ID: 189

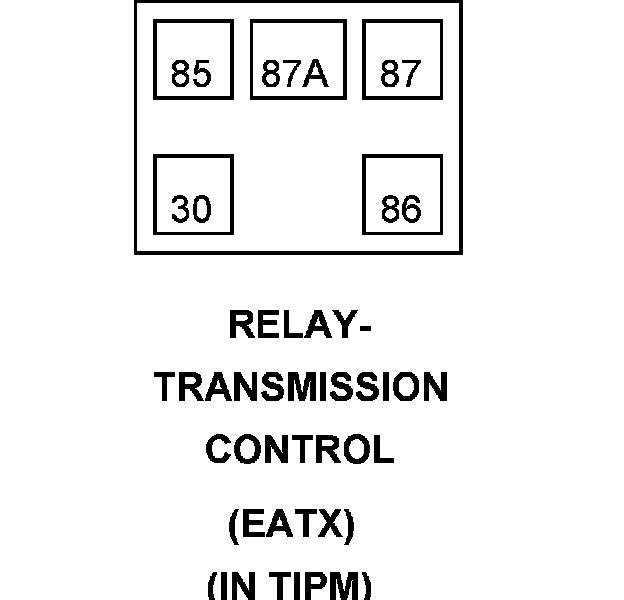

Component : RELAY-TRANSMISSION CONTROL

Connector:
Name : RELAY-TRANSMISSION CONTROL
Color :
# of pins : 0
Qualifier : (EATX)




30 FUSED B(+) INTERNAL
85 FUSED B(+) INTERNAL
86 TRANSMISSION CONTROL INTERNAL
87 TRANSMISSION CONTROL OUTPUT T16 16YL/OR
87A - -
