Sensor-Intrusion-Cargo

Component ID: 297
Component : SENSOR-INTRUSION-CARGO

Connector:
Name : SENSOR-INTRUSION-CARGO
Color : BLACK
# of pins : 3
Qualifier : (RHD)




Pin Description Circuit
1 FUSED B(+) (I.O.D.) A412 18RD
2 GROUND Z912 18BK
2 LIN BUS D122 20WT/LG
3 LIN BUS D122 20WT/LG
3 GROUND Z912 18BK

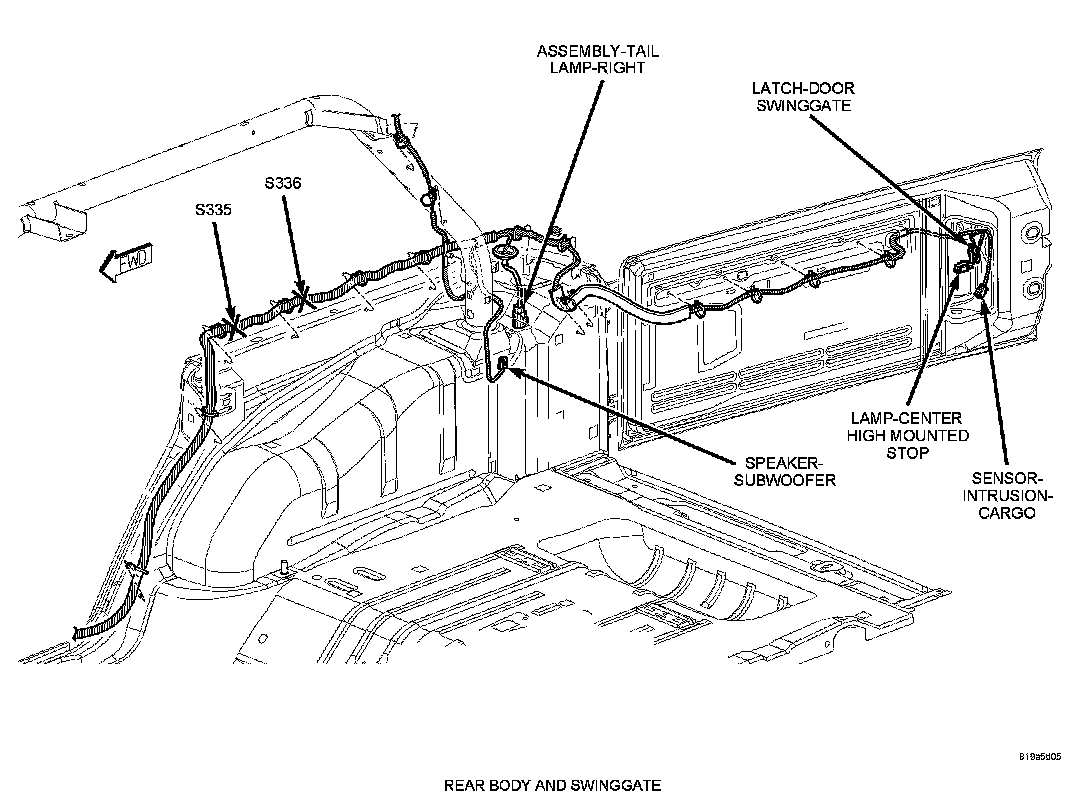

Component Location - 22
