Connector Location Index

If a link on the index chart to a figure is not provided, that means that the connector and/or figure in question does NOT apply to the vehicle model selected.

The abbreviation T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.

The abbreviation N/S means Not Shown in the illustrations.

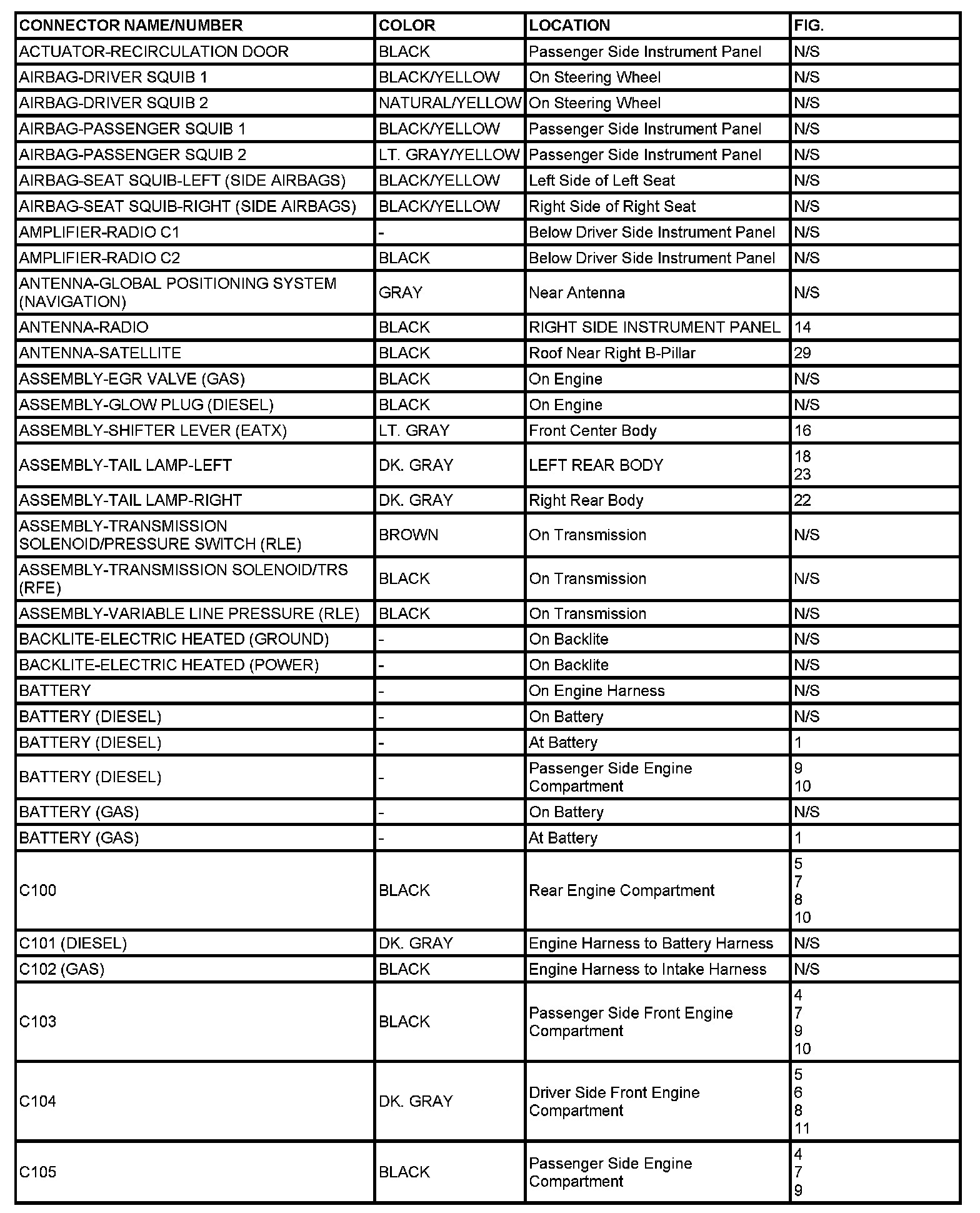

Ac-C105:

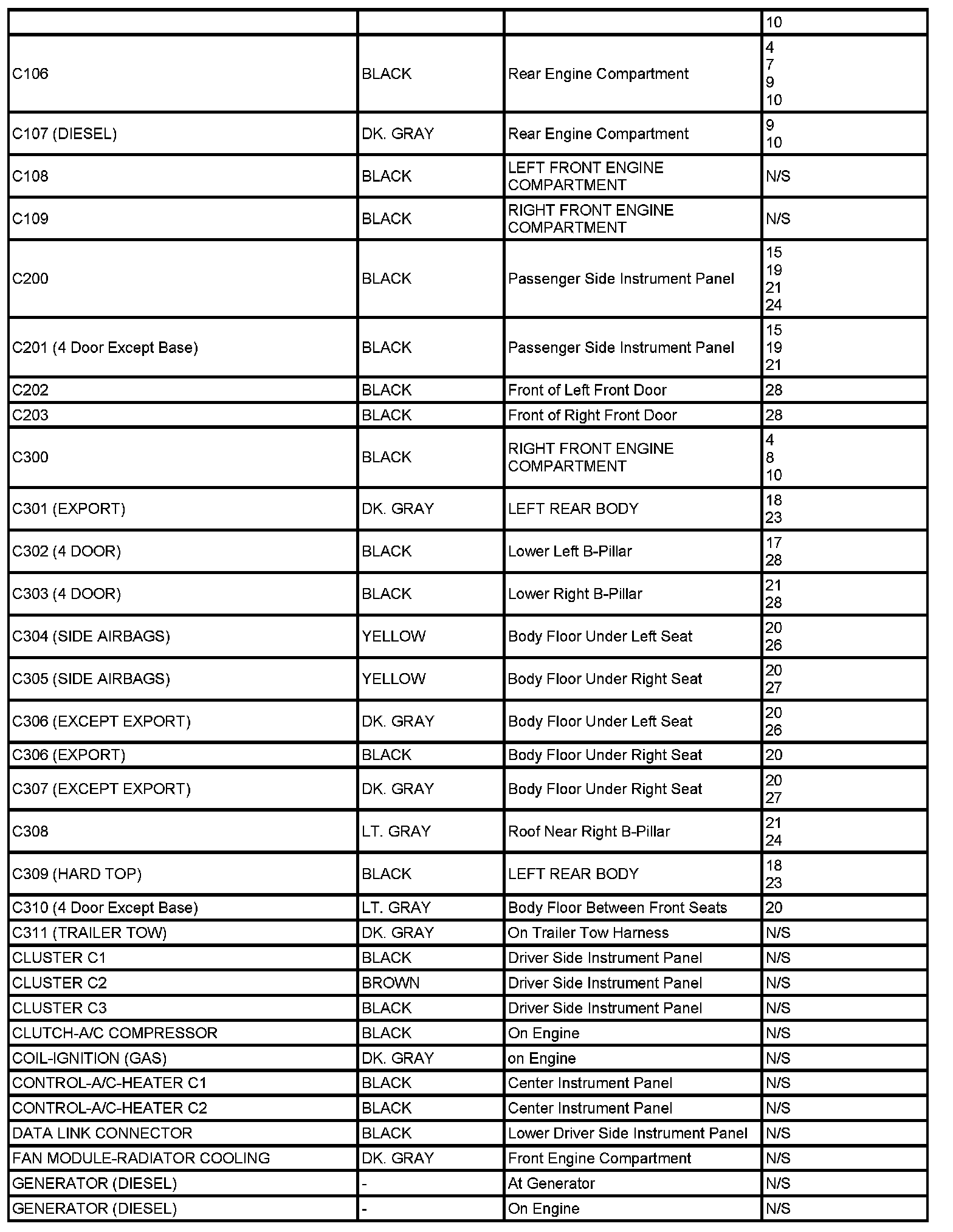

C106-Ge:

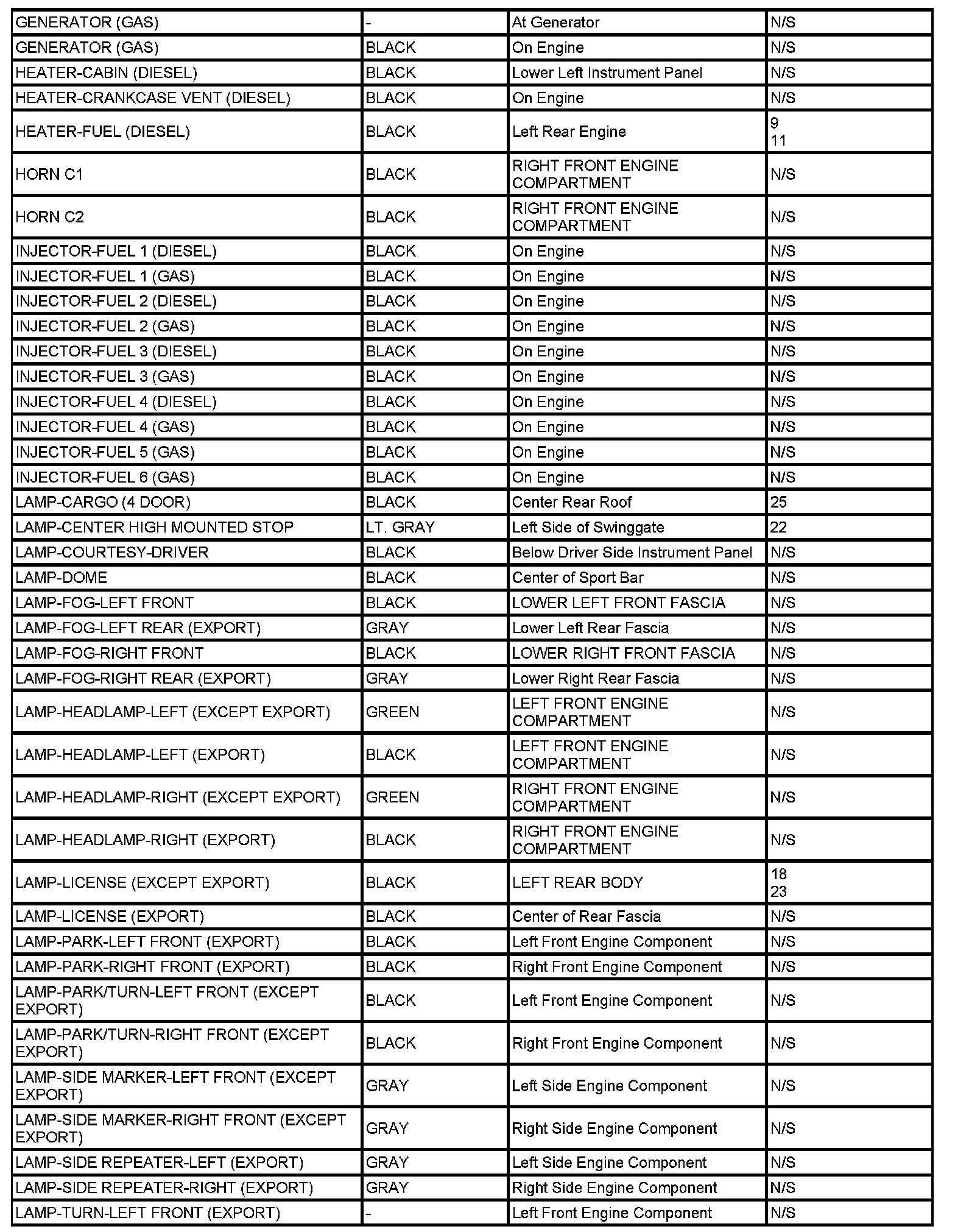

Ge-La:

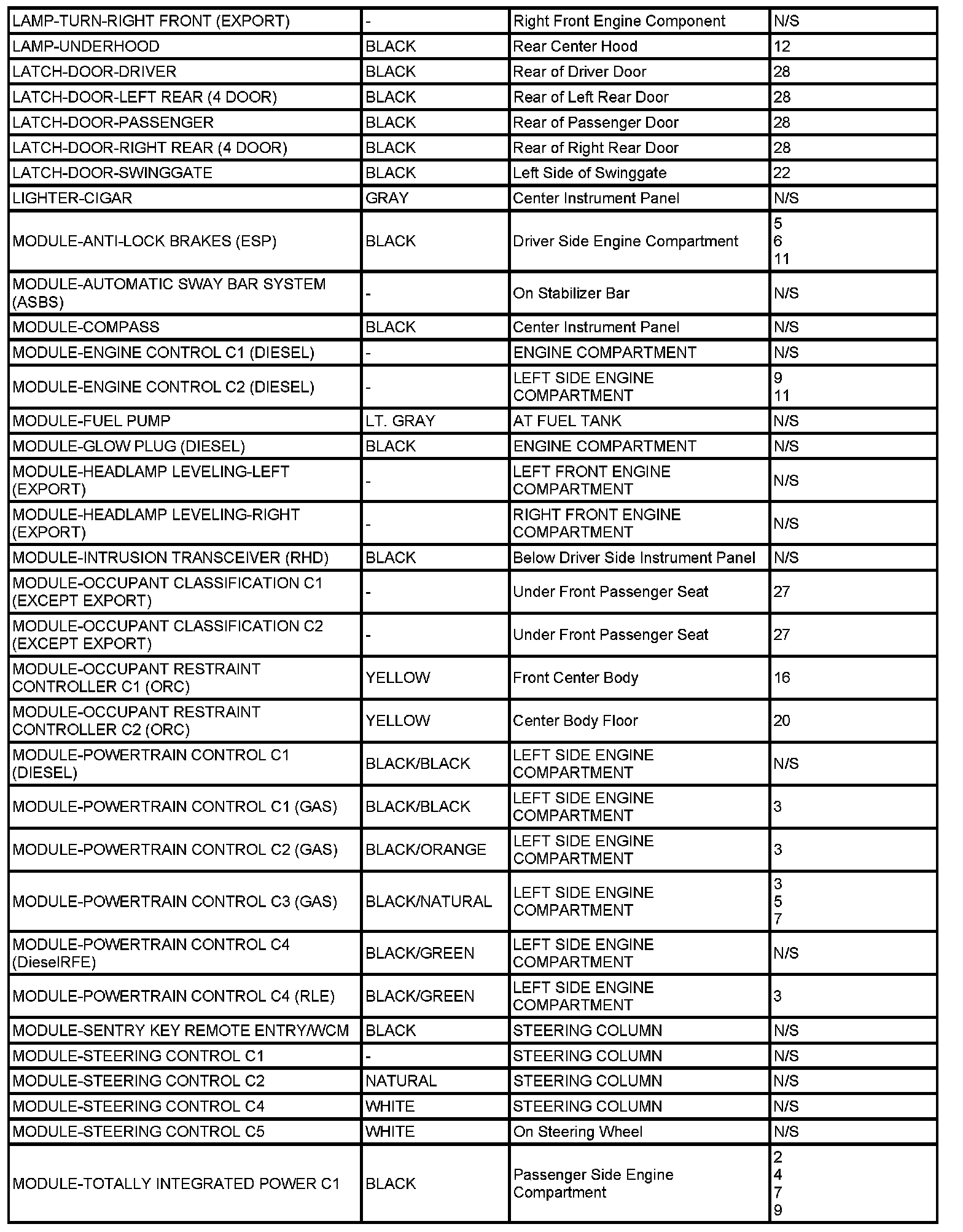

La-Mo:

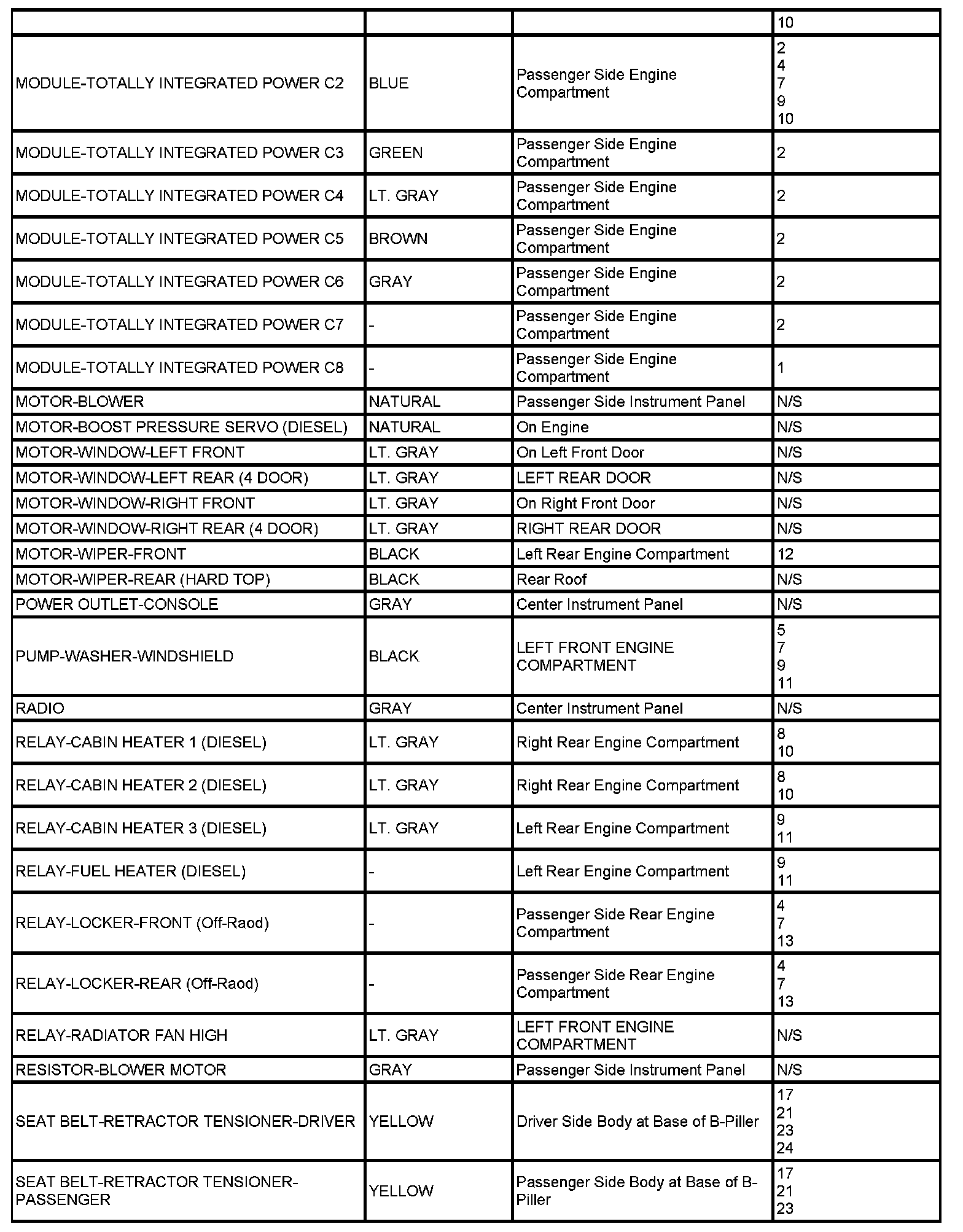

Mo-Se:

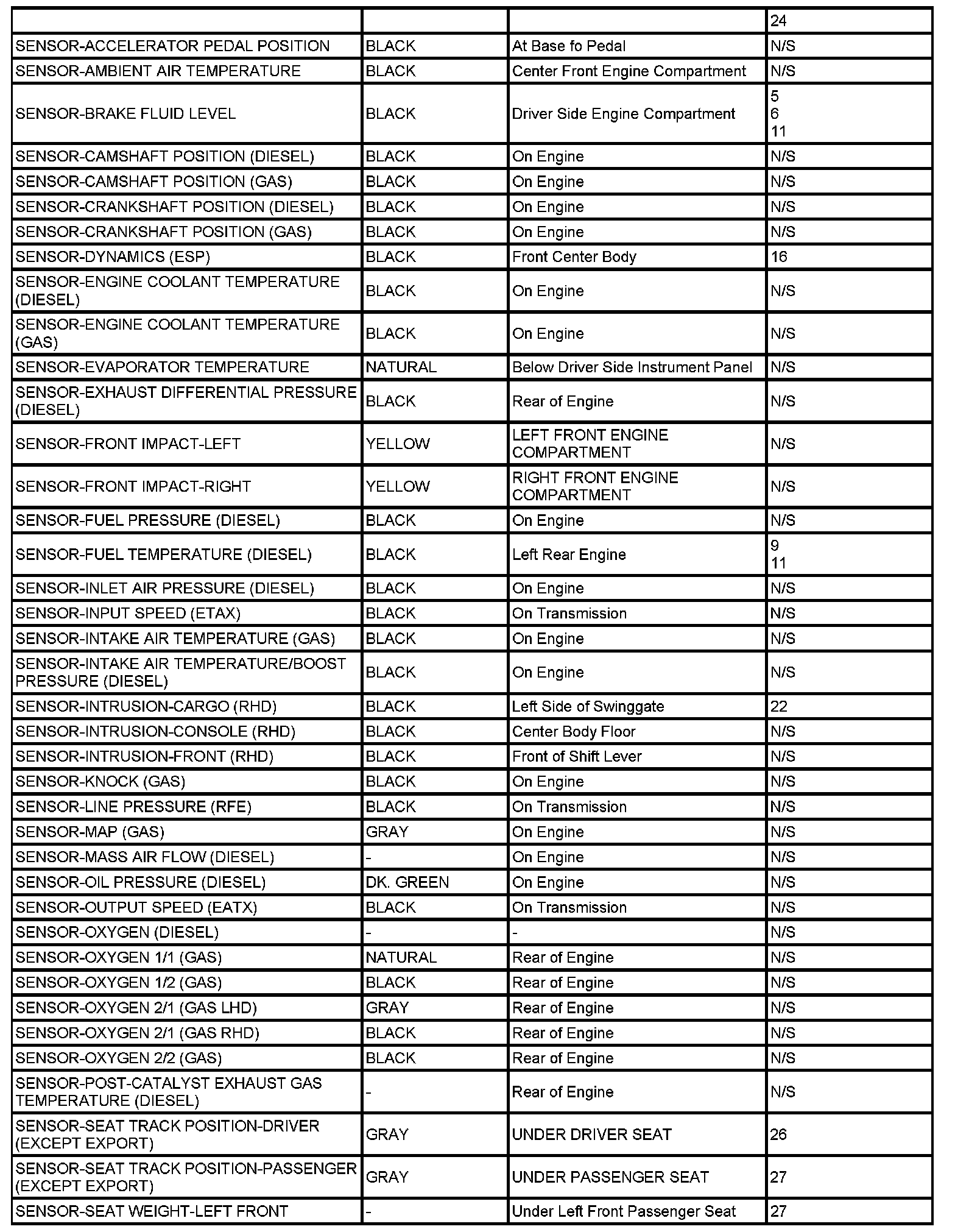

Se-Se:

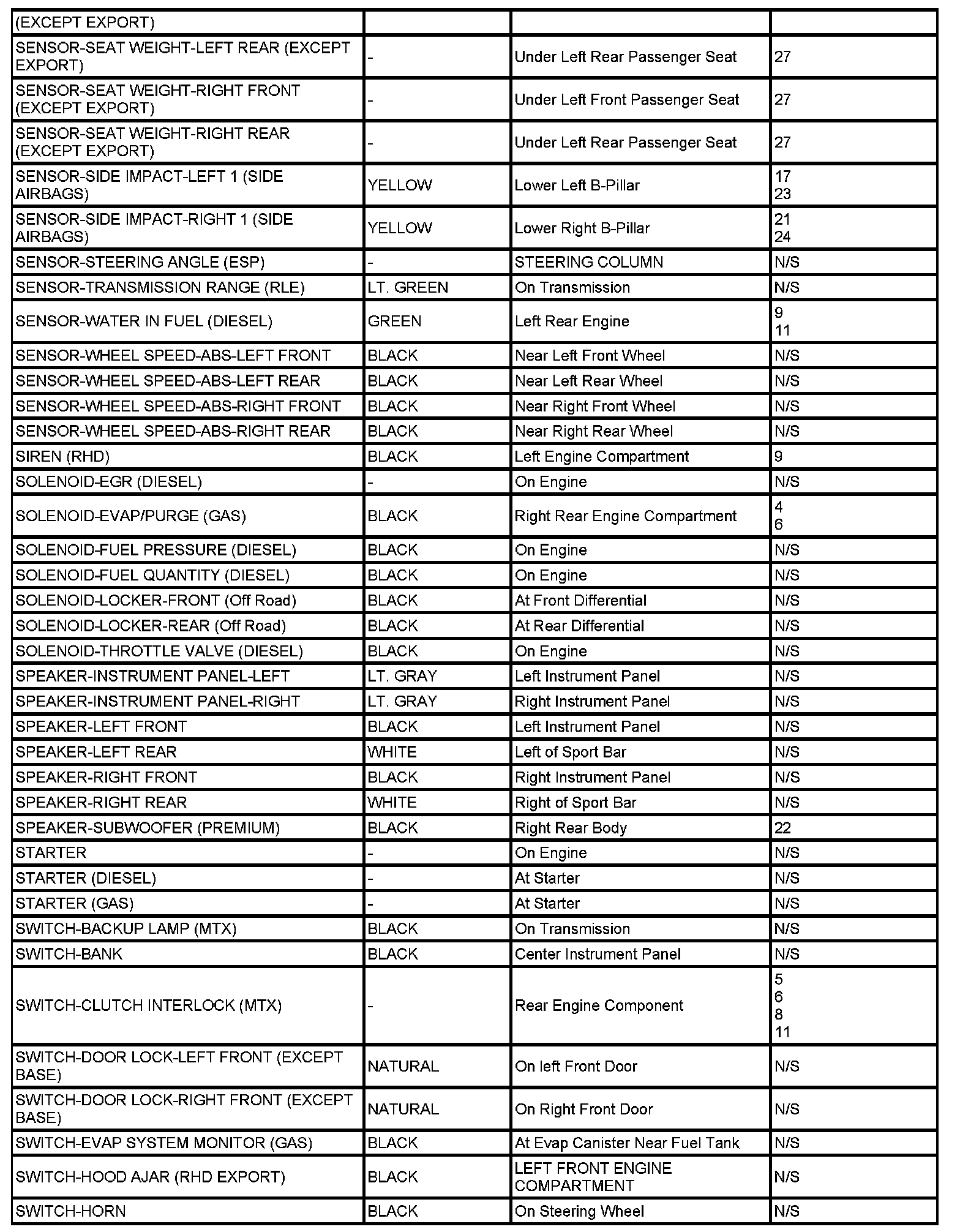

Se-Sw:

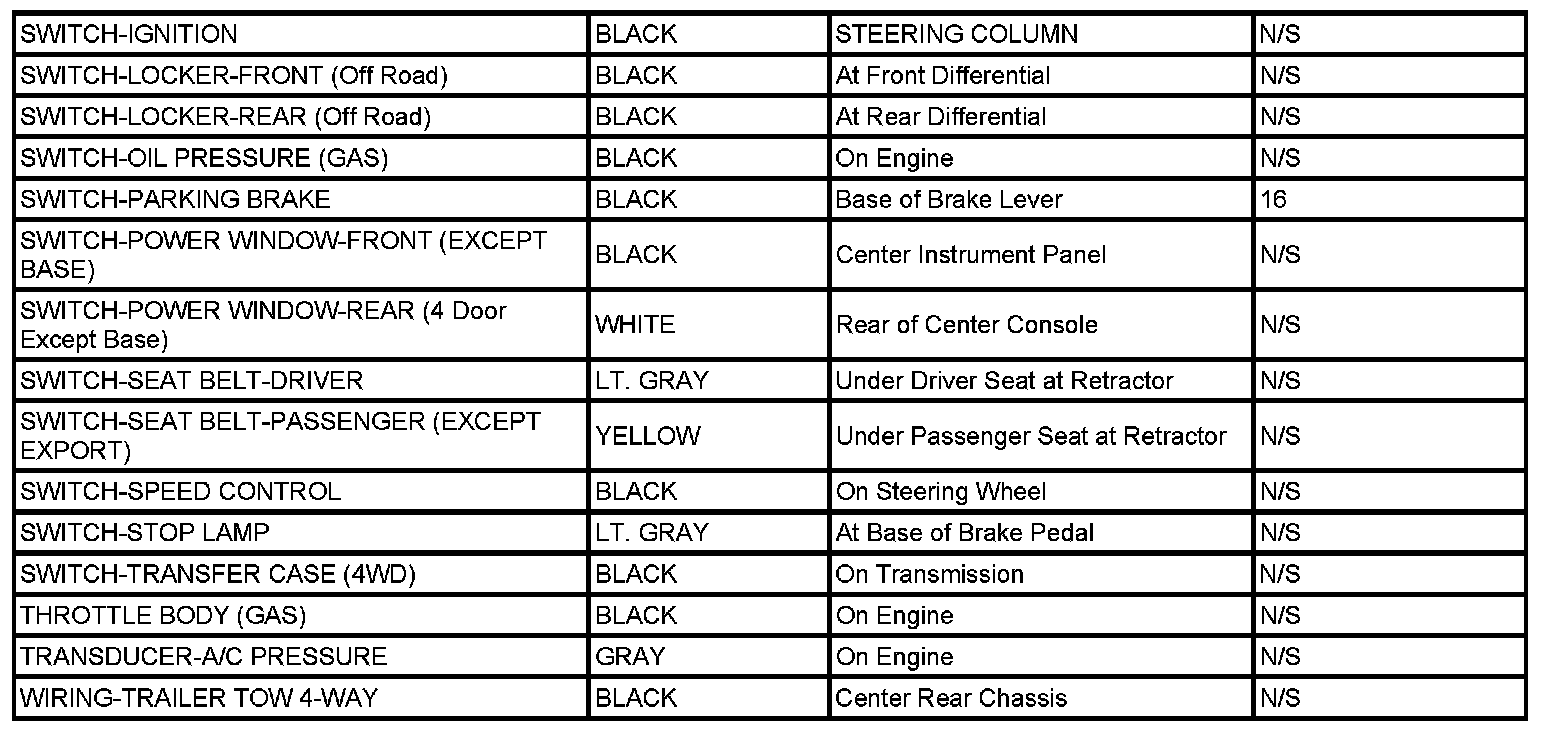

Sw-Wi:
