Accelerator Pedal Position Sensor: Diagrams

Component ID: 280
Component : SENSOR-ACCELERATOR PEDAL POSITION

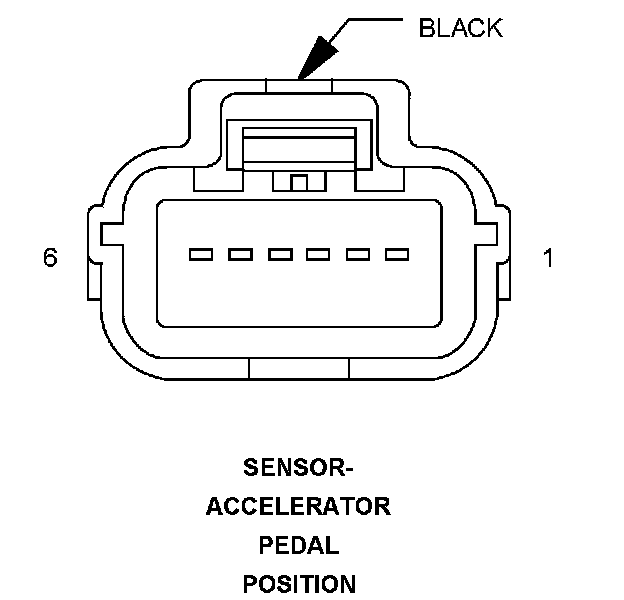

Connector:
Name : SENSOR-ACCELERATOR PEDAL POSITION
Color : BLACK
# of pins : 6




Pin Description Circuit
1 APP 1 5 VOLT SUPPLY F855 20PK/YL
2 APP 1 SIGNAL K23 20BR/WT
3 APP 1 SENSOR GROUND K167 20BR/YL
4 APP 2 SENSOR GROUND K400 20BR/VT
5 APP 2 SIGNAL K29 20WT/BR
6 APP 2 5 VOLT SUPPLY F856 20YL/PK
