Knock Sensor: Diagrams

Component ID: 300

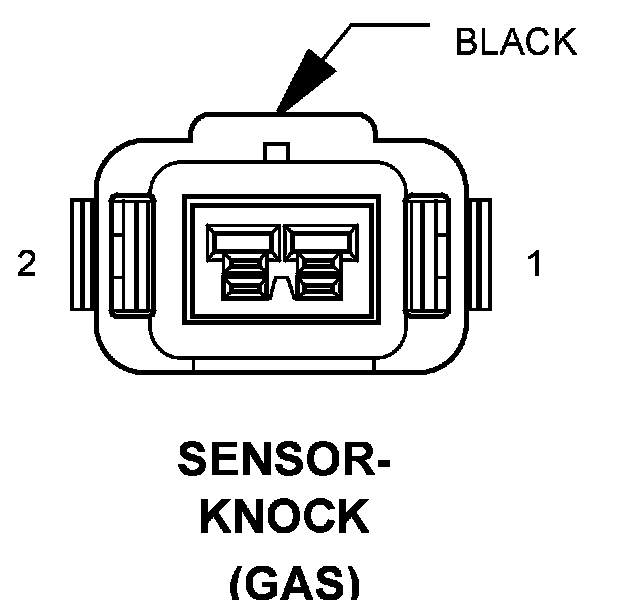

Component : SENSOR-KNOCK

Connector:
Name : SENSOR-KNOCK
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Description Circuit
1 KS SIGNAL K42 18DB/YL
2 KS RETURN K942 18BR/LG
