Main Relay (Computer/Fuel System): Diagrams

Component ID: 175

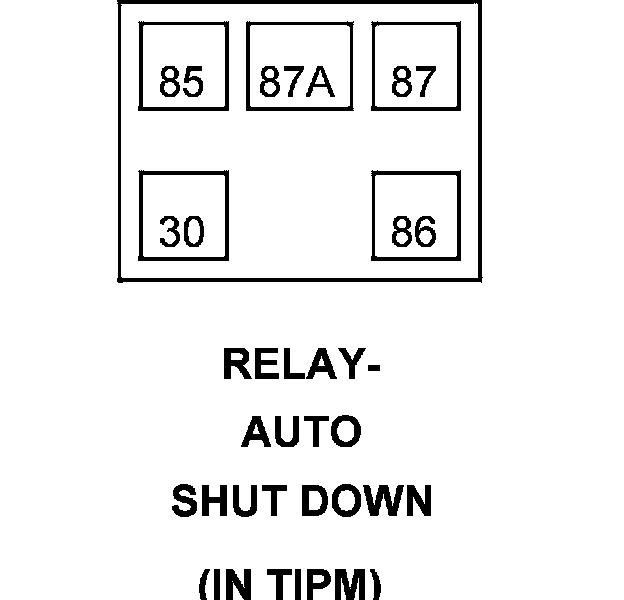

Component : RELAY-AUTO SHUT DOWN

Connector:
Name : RELAY-AUTO SHUT DOWN
Color :
# of pins : 0




30 B(+) INTERNAL
85 B(+) INTERNAL
86 ASD RELAY CONTROL K51 20BR/WT
87 ASD RELAY OUTPUT INTERNAL
87A - -
