42RLE Automatic Transmission






42RLE AUTOMATIC TRANSMISSION

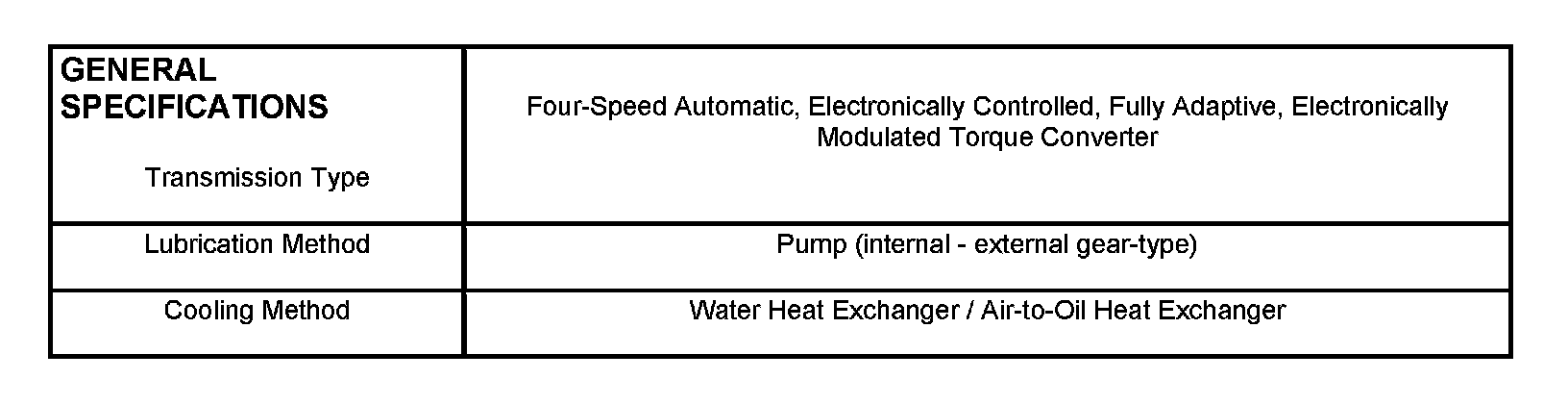

General Specifications:

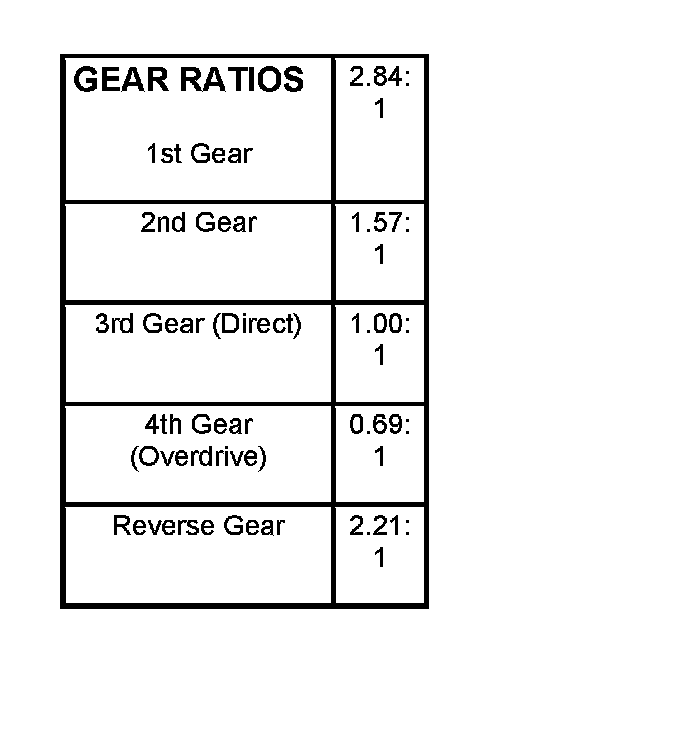

Gear Ratios:

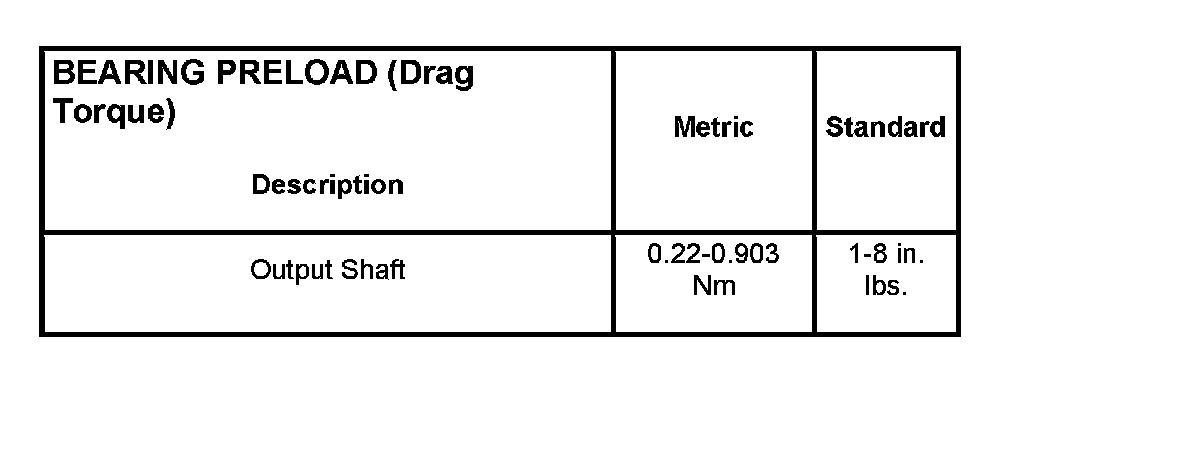

Bearing Preload:

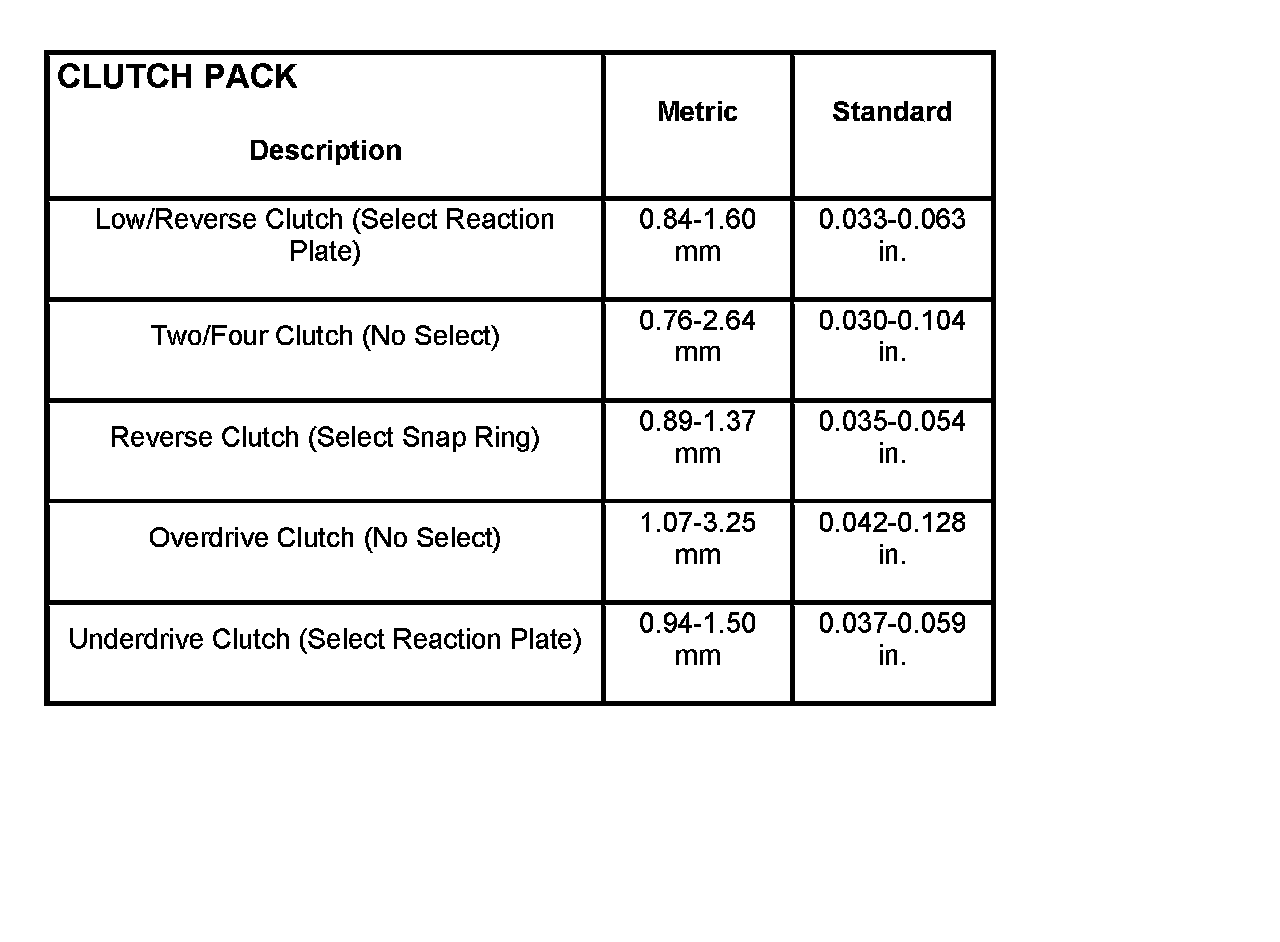

Clutch Pack:

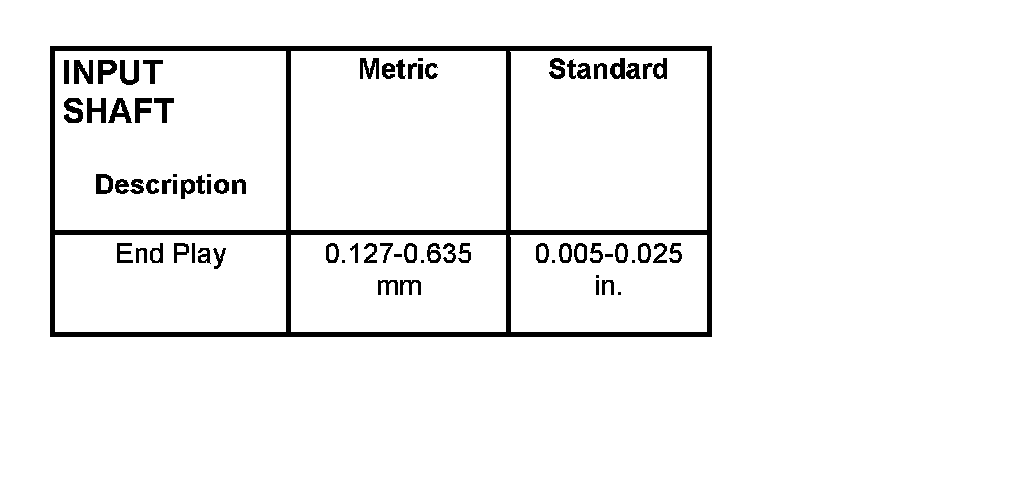

Input Shaft:

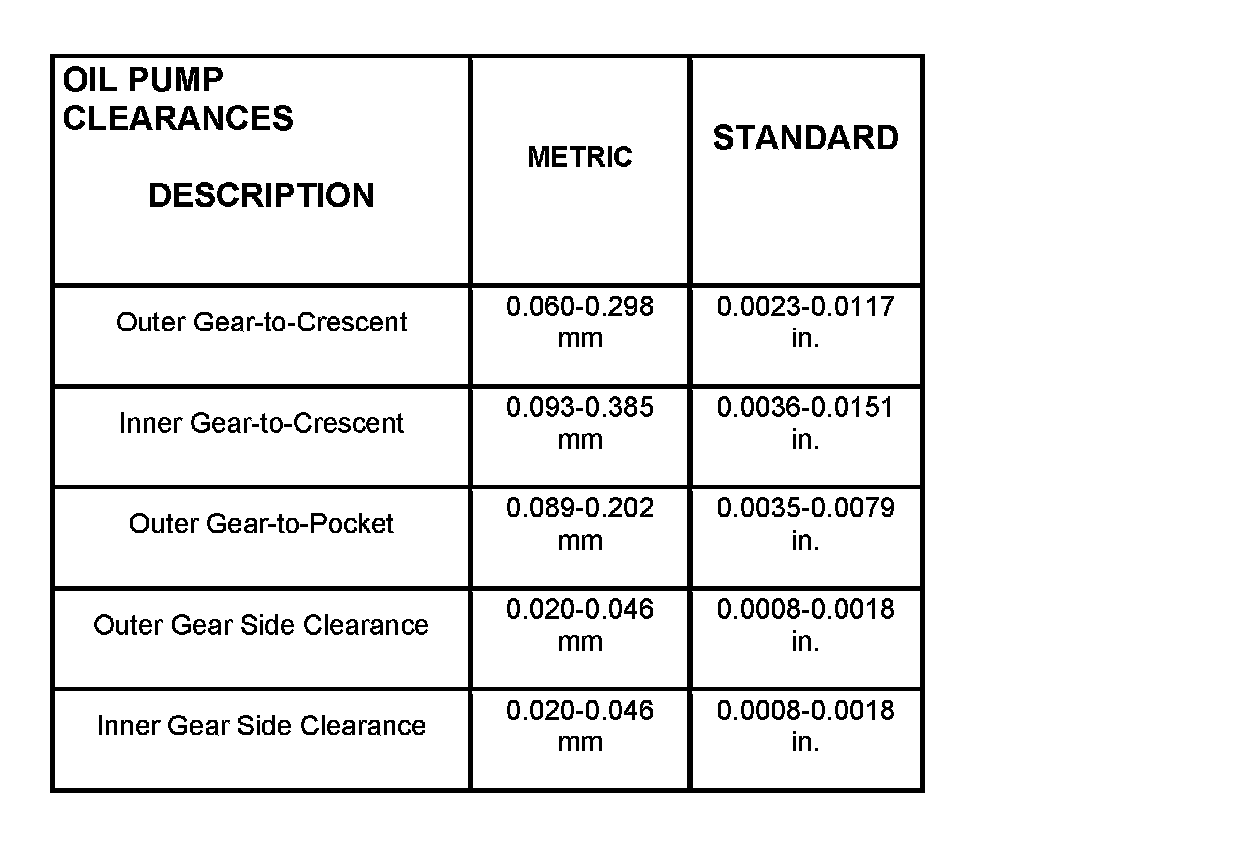

Oil Pump Clearances:

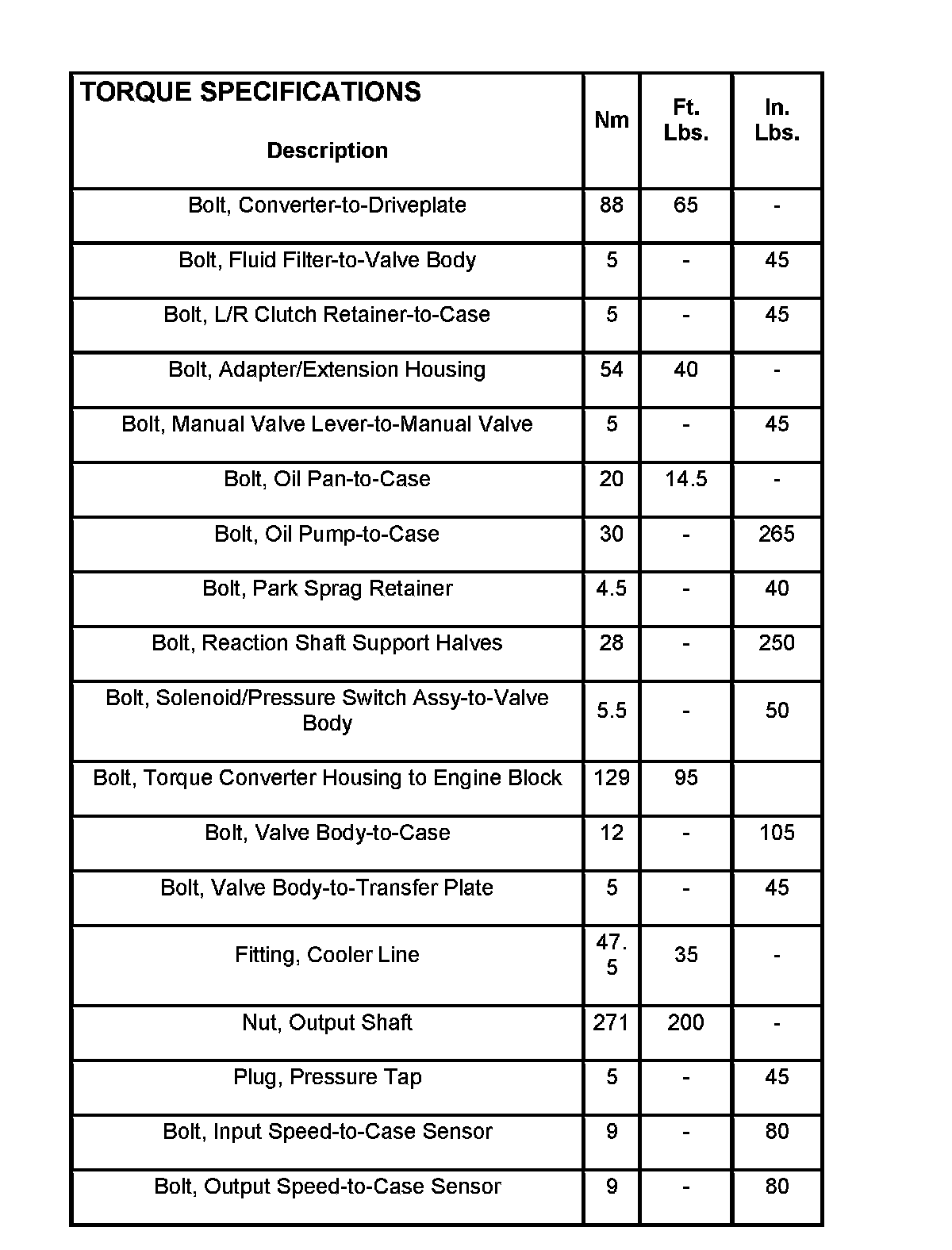

Torque Specifications:
