545RFE Automatic Transmission






TRANSMISSION

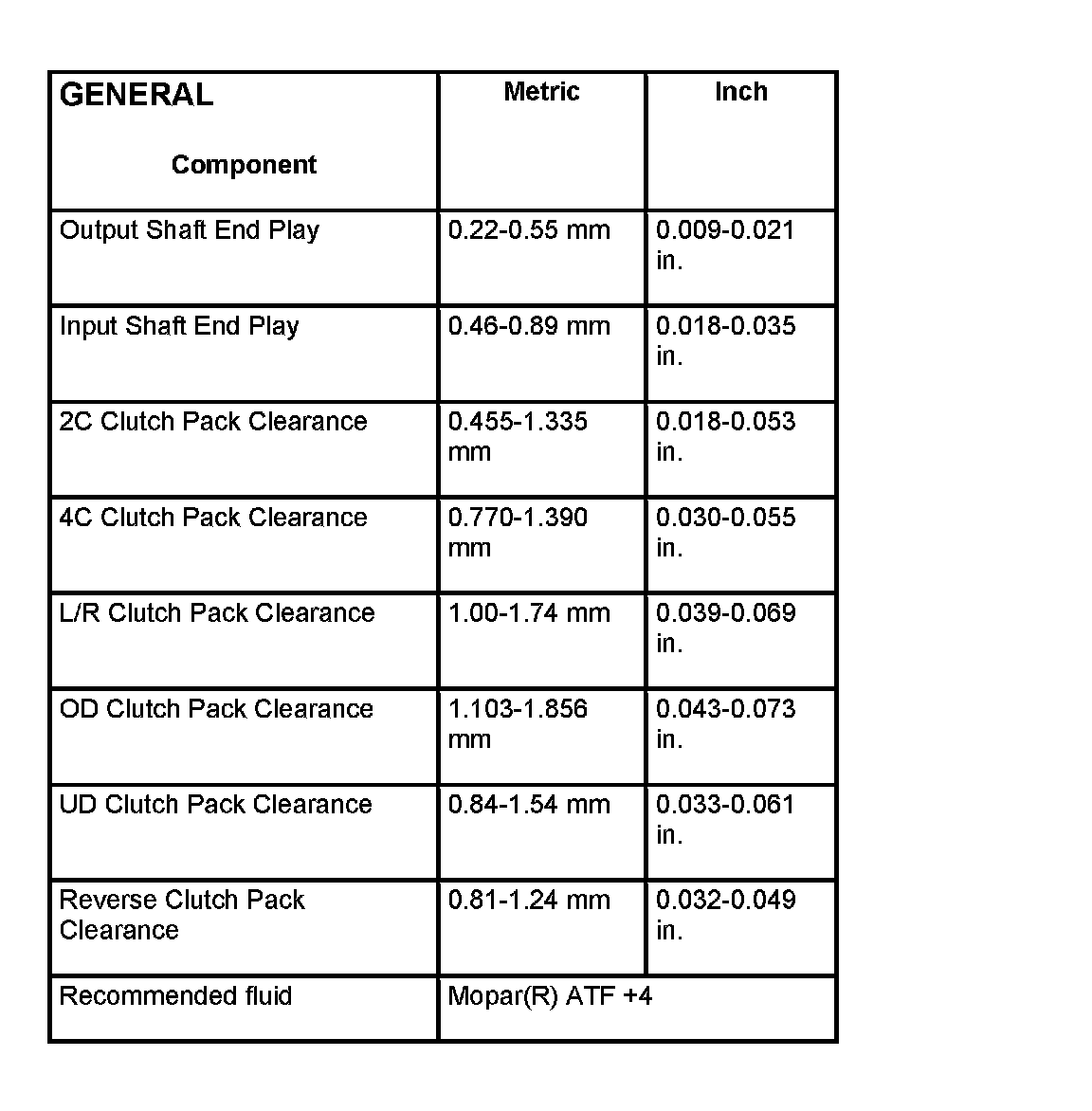

General Specifications:

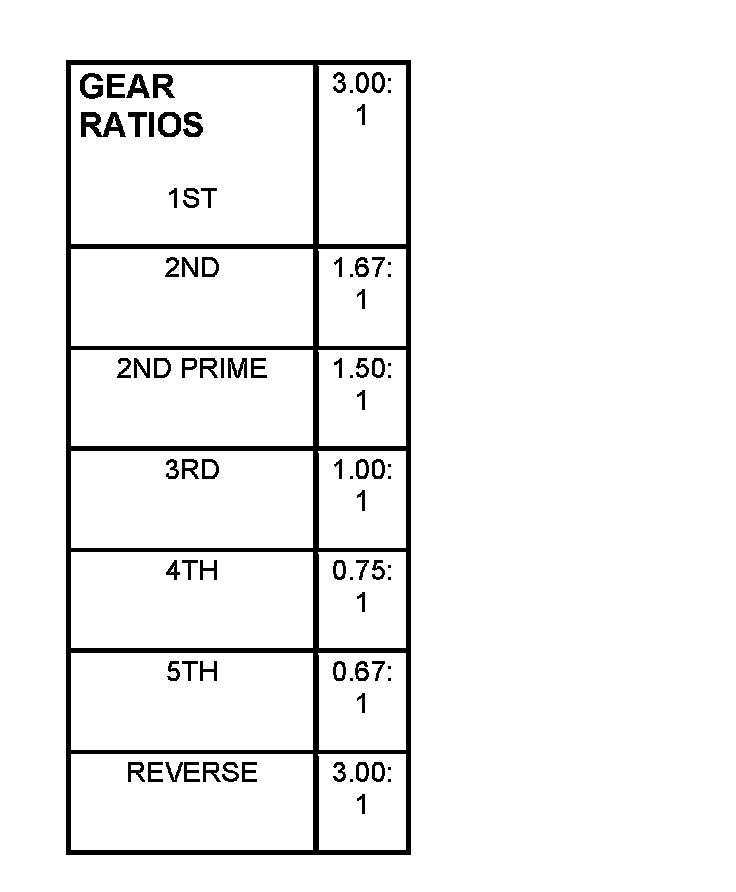

Gear Ratios:

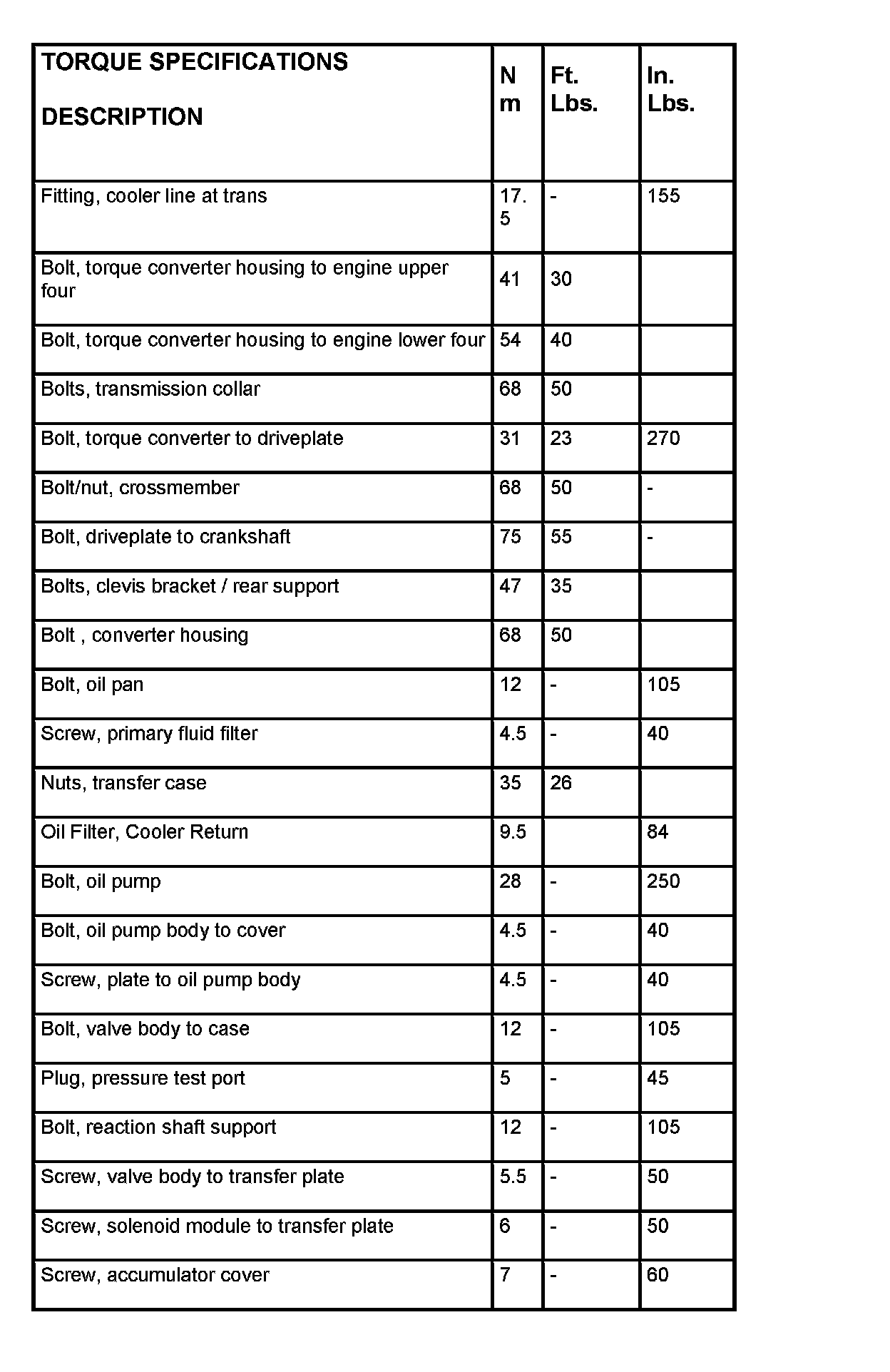

Torque Specifications (Part 1):




Torque Specifications (Part 2):
