Service Specifications
3.8L ENGINE
General Description:
General Description
Cylinder Block:
Cylinder Block
Crankshaft:
Crankshaft
Connecting Rods:
Connecting Rods
Pistons:
Pistons
Piston Pins:
Piston Pins
Piston Rings:
Piston Rings

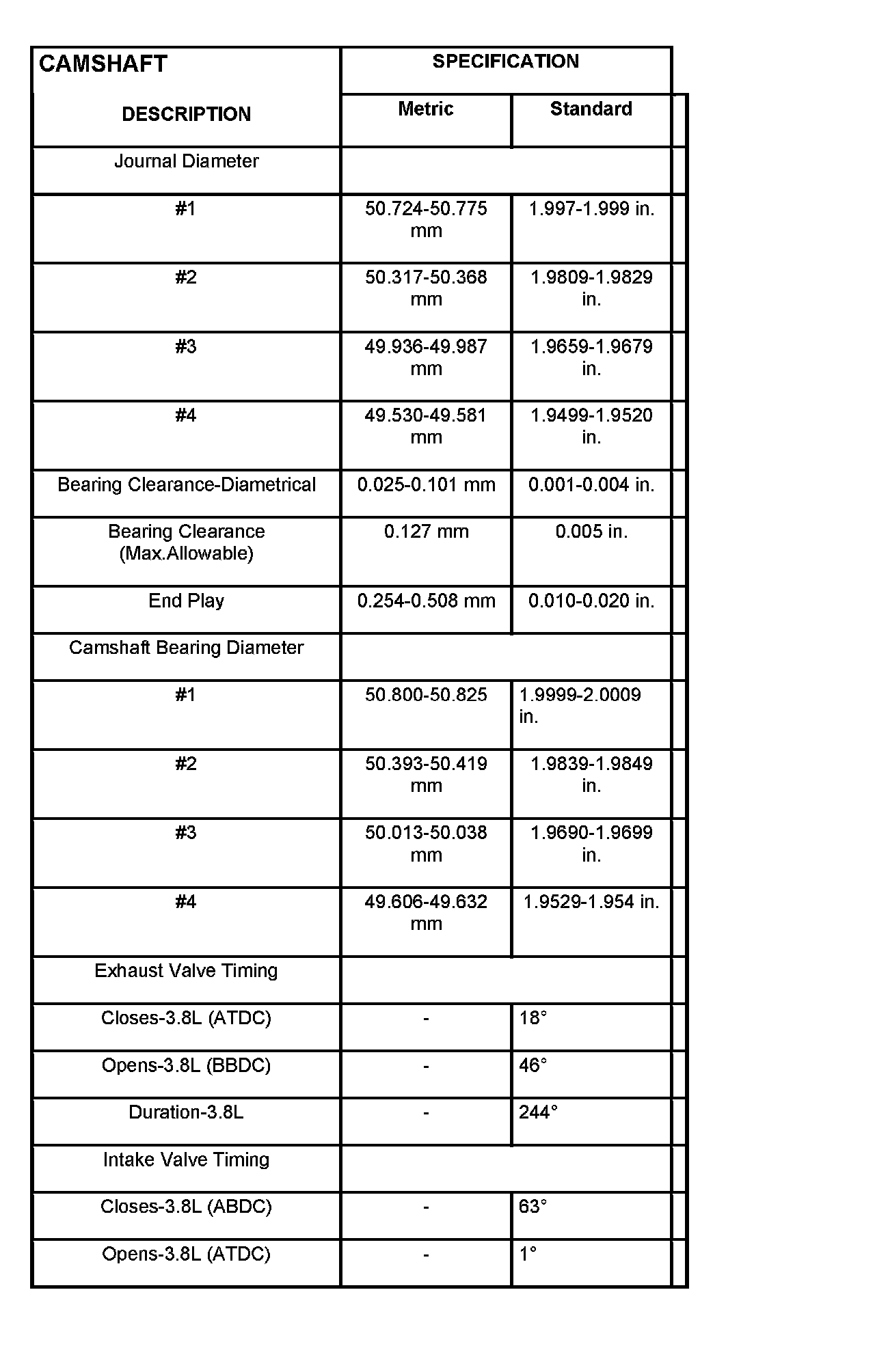

Camshaft (Part 1):
Camshaft (Part 1)

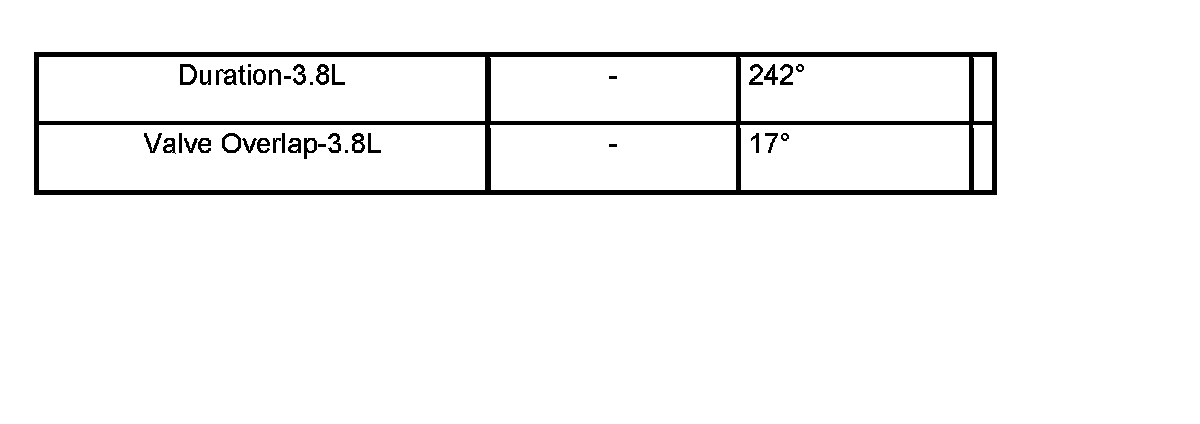

Camshaft (Part 2):
Camshaft (Part 2)

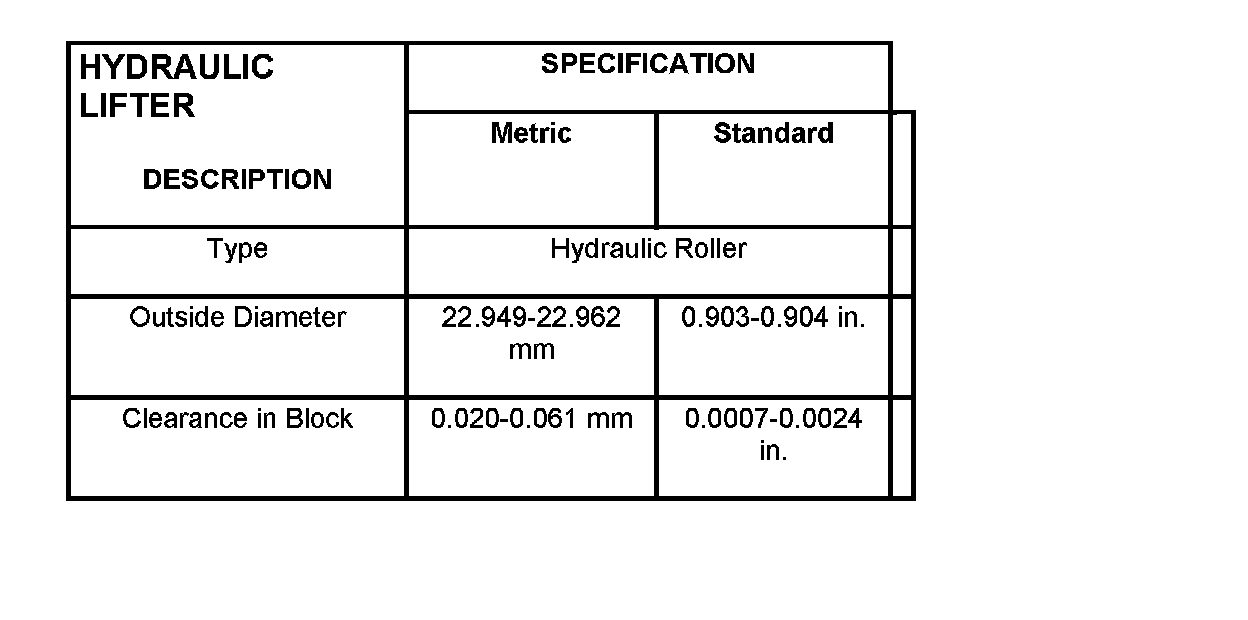

Hydraulic Lifter:
Hydraulic Lifter

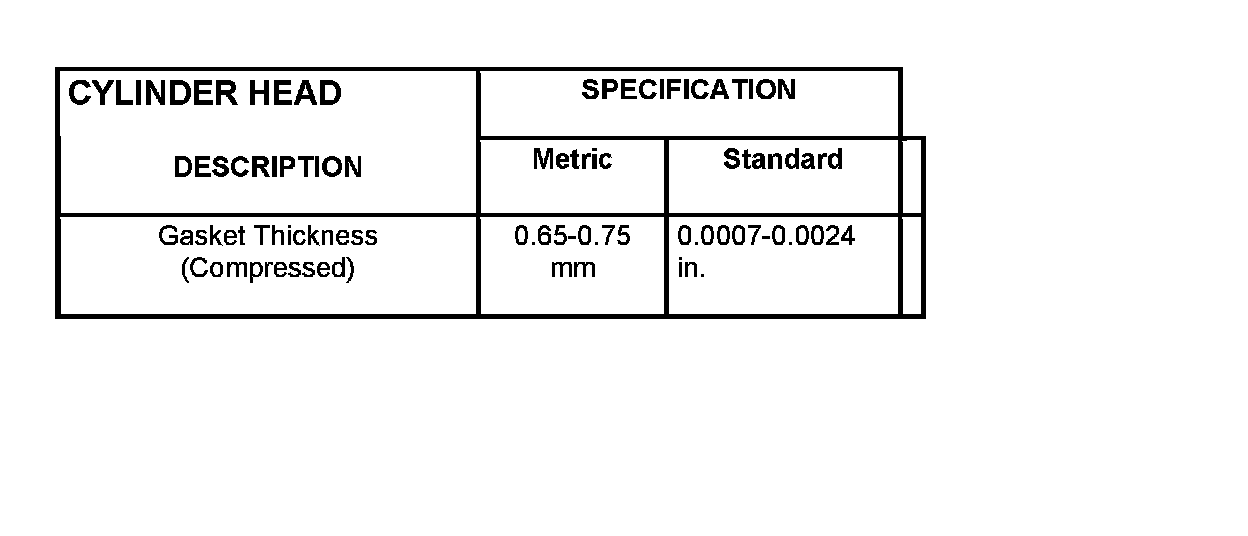

Cylinder Head:
Cylinder Head

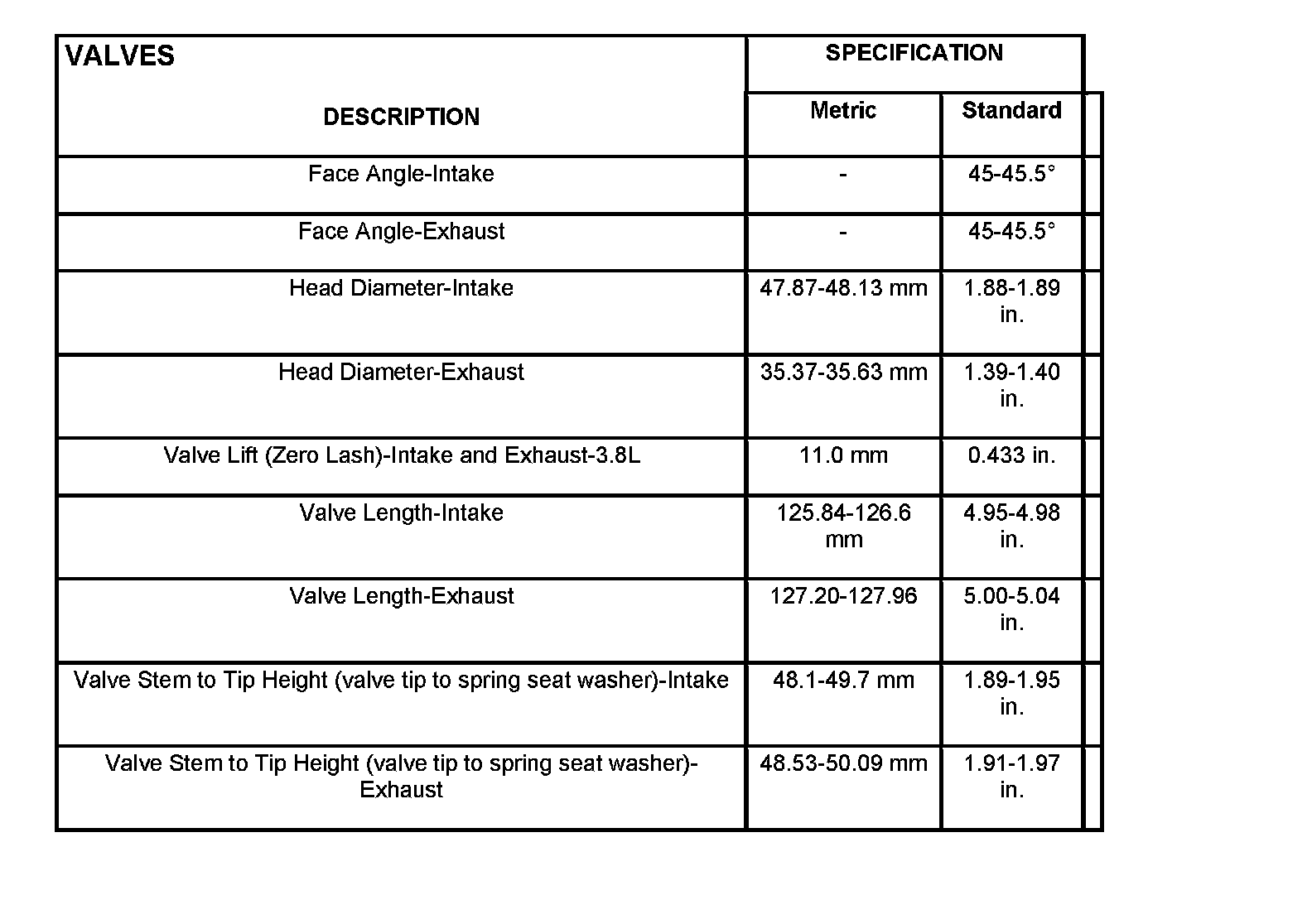

Valves:
Valves

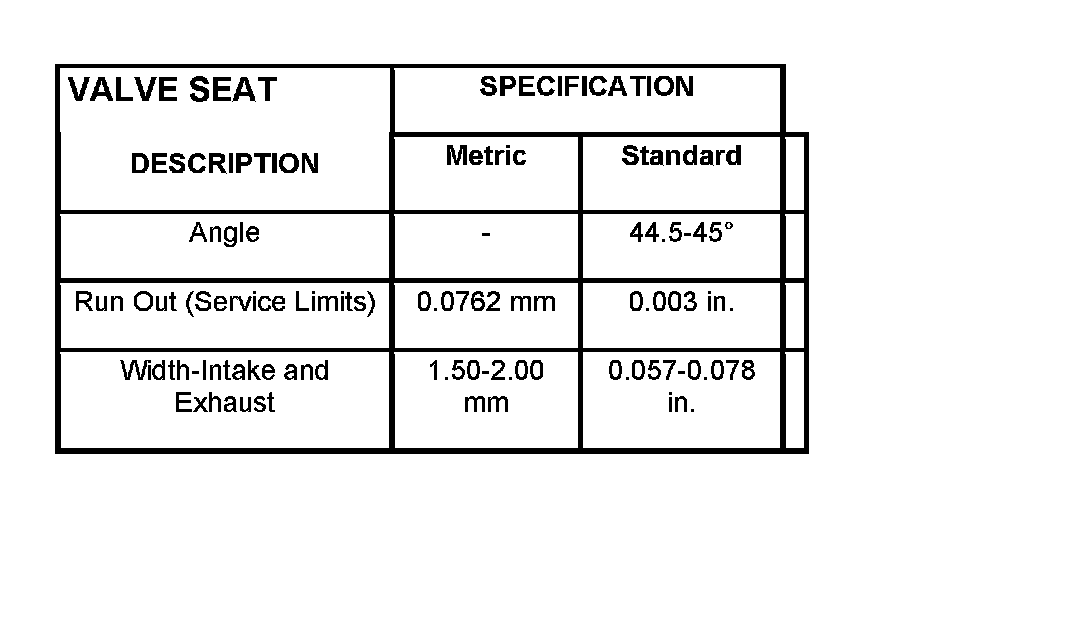

Valve Seat:
Valve Seat

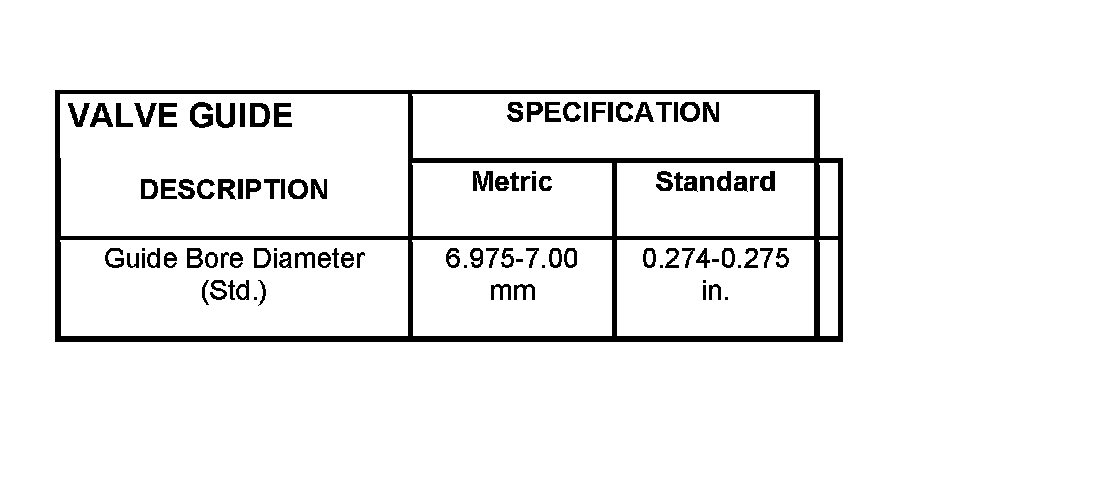

Valve Guide:
Valve Guide

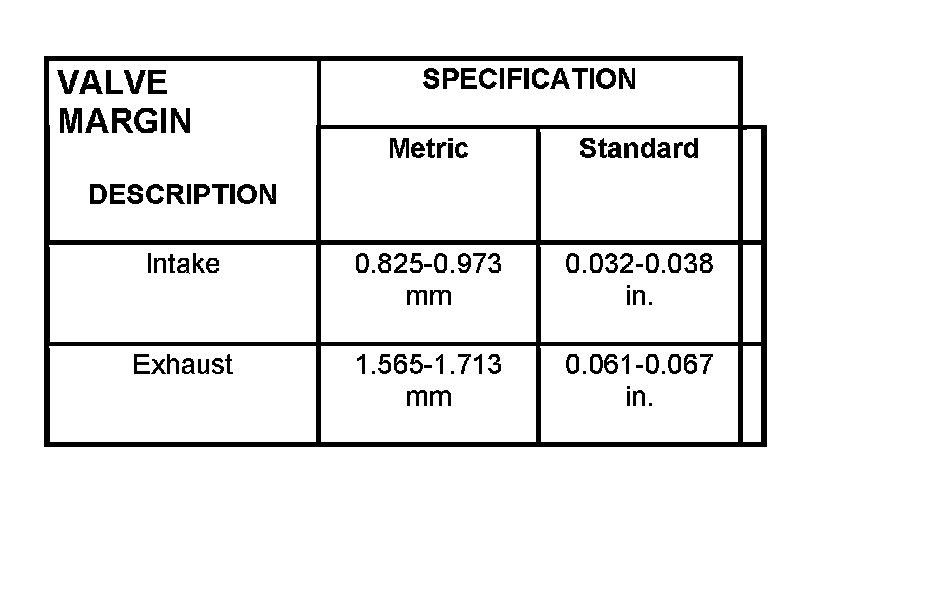

Valve Margin:
Valve Margin

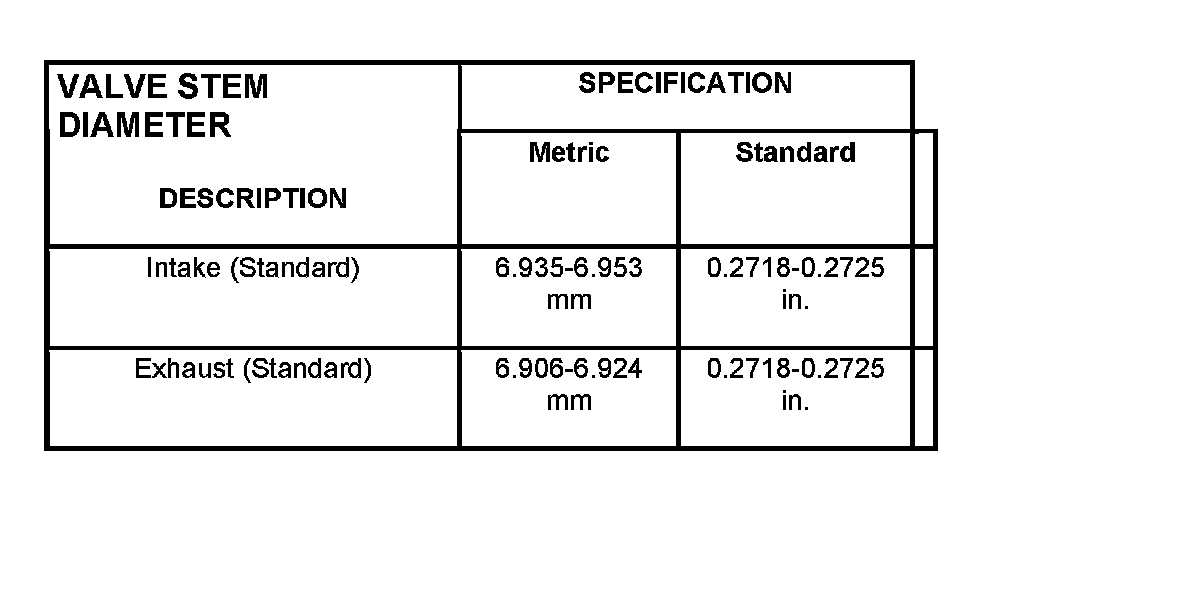

Valve Stem Diameter:
Valve Stem Diameter

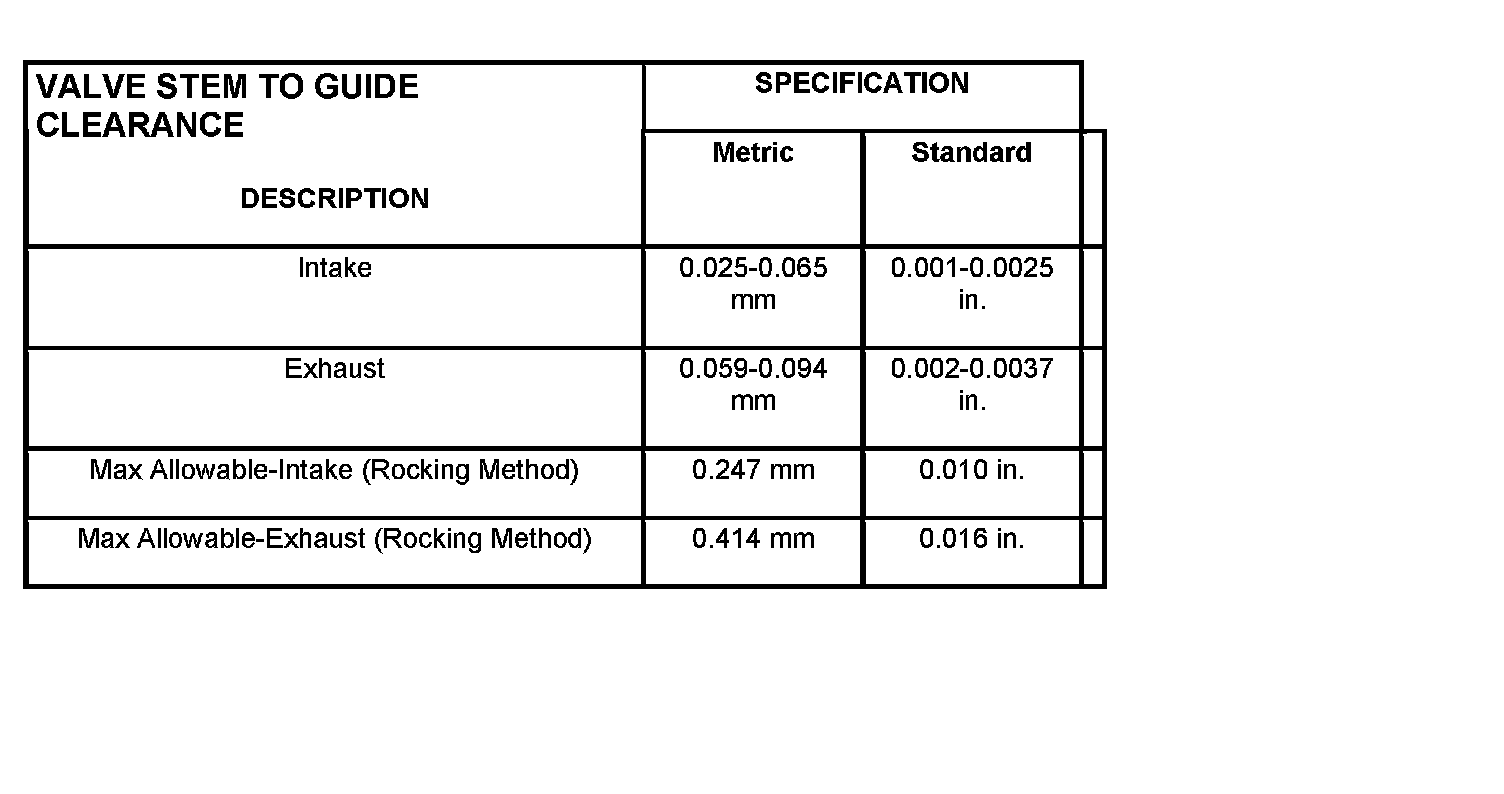

Valve Stem To Guide Clearance:
Valve Stem To Guide Clearance

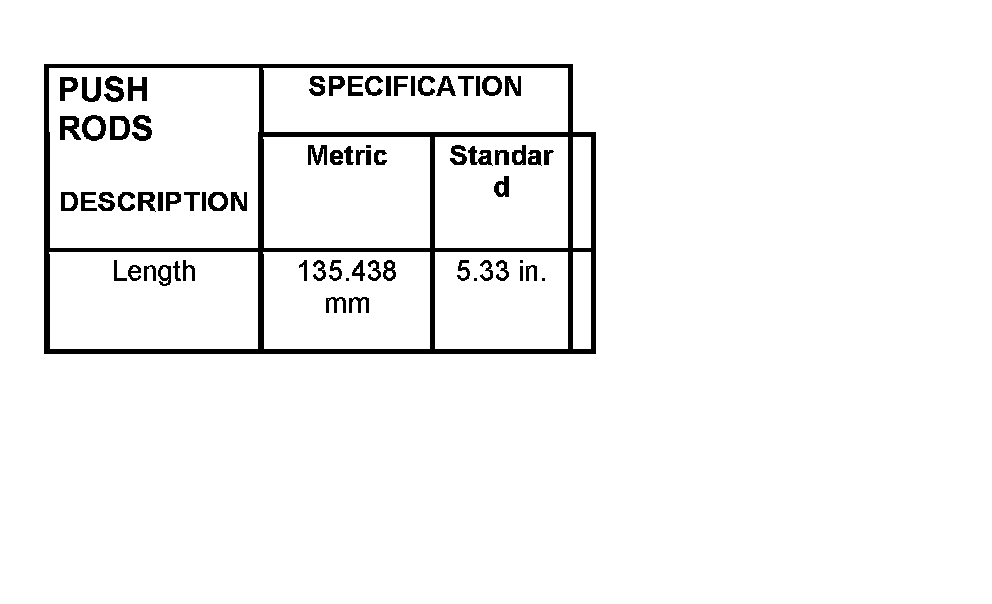

Push Rods:
Push Rods

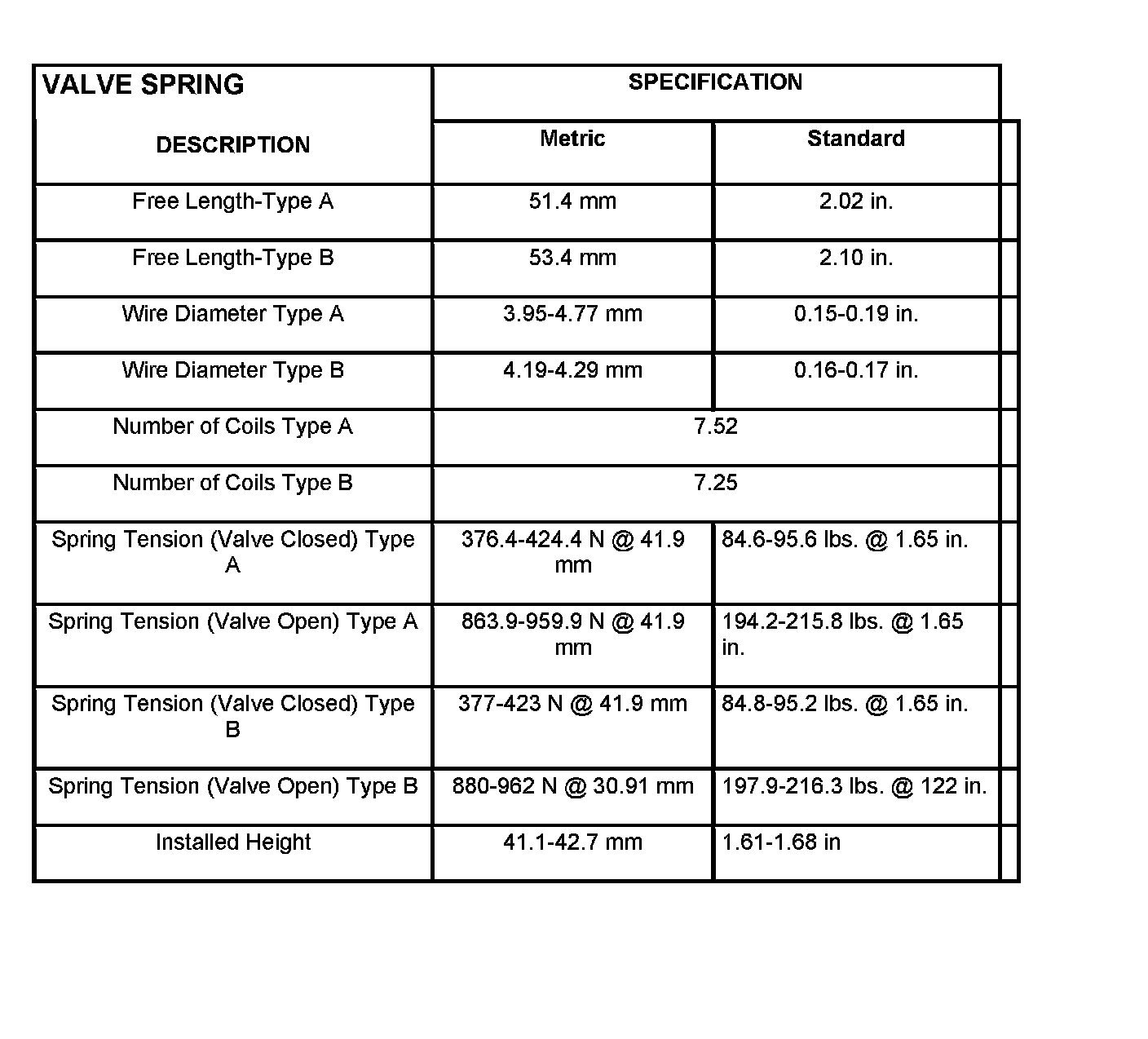

Valve Springs:
Valve Springs

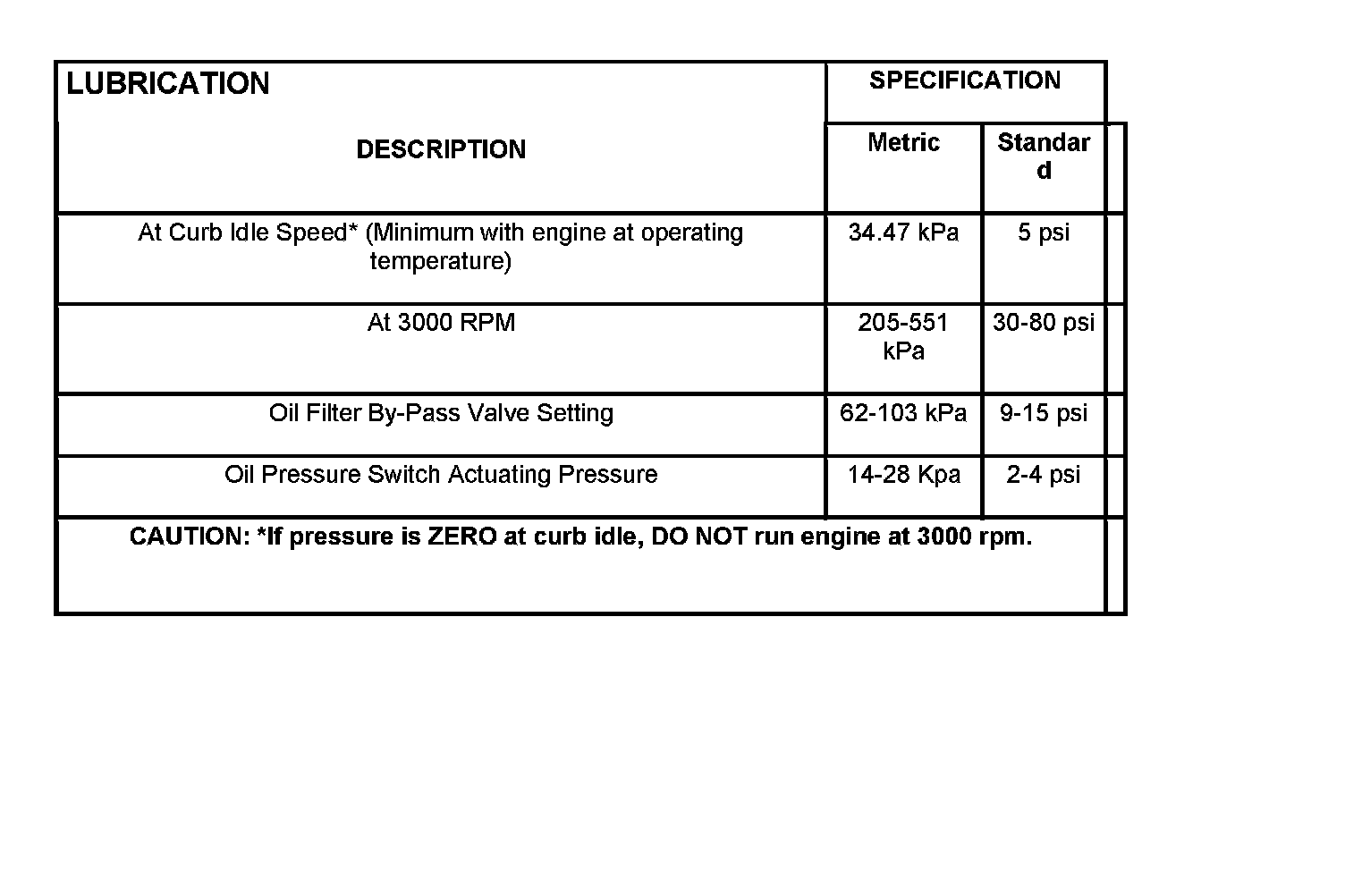

Lubrication:
Lubrication

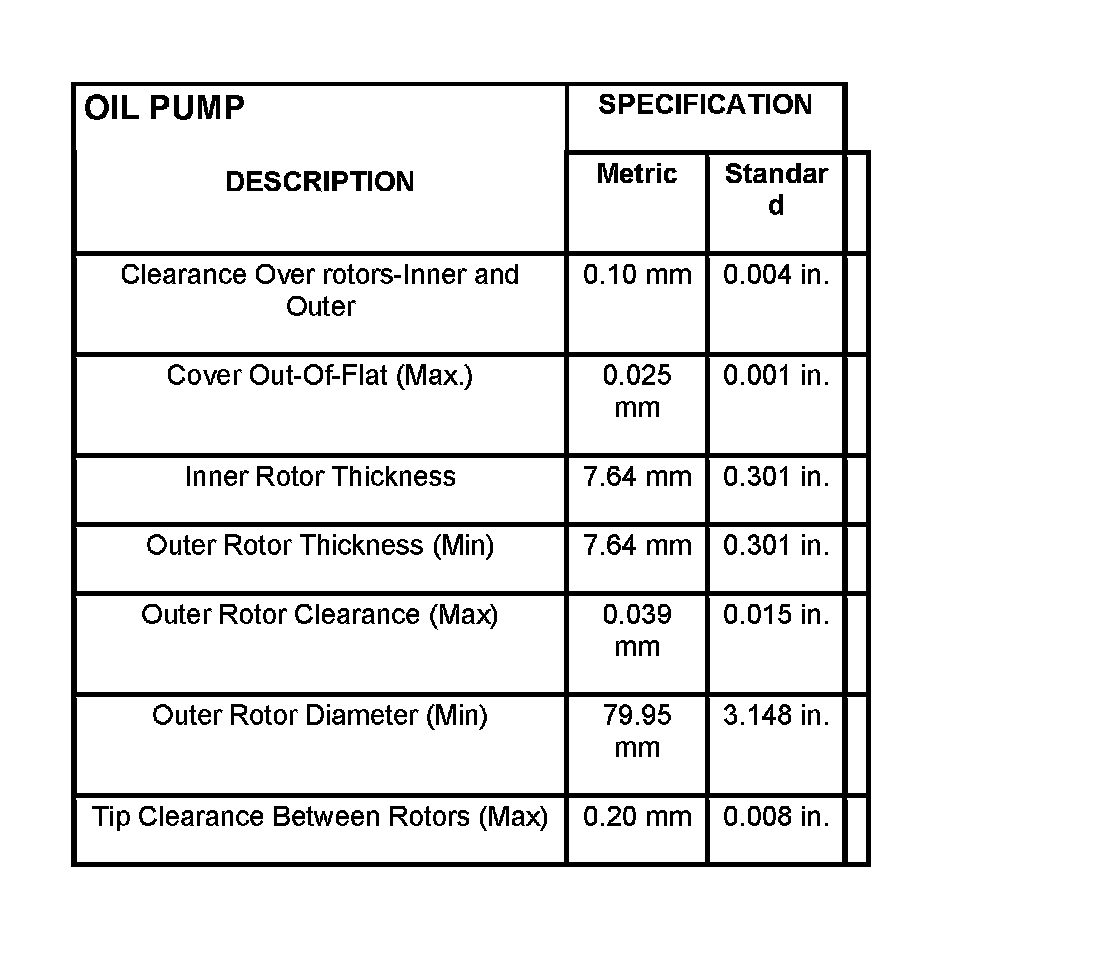

Oil Pump:
Oil Pump
