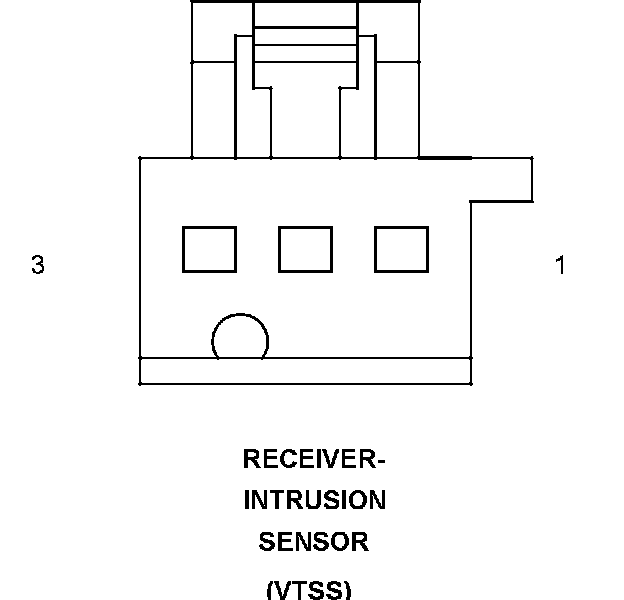

Receiver-Intrusion Sensor

Component ID: 265
Component : RECEIVER-INTRUSION SENSOR

Connector:
Name : RECEIVER-INTRUSION SENSOR
Color :
# of pins : 3
Qualifier : (VTSS)




Pin Circuit Description
1 G460 20DG/VT INTRUSION RECEIVER SENSOR SIGNAL
2 - -
3 G946 20LG/VT SENSOR GROUND
