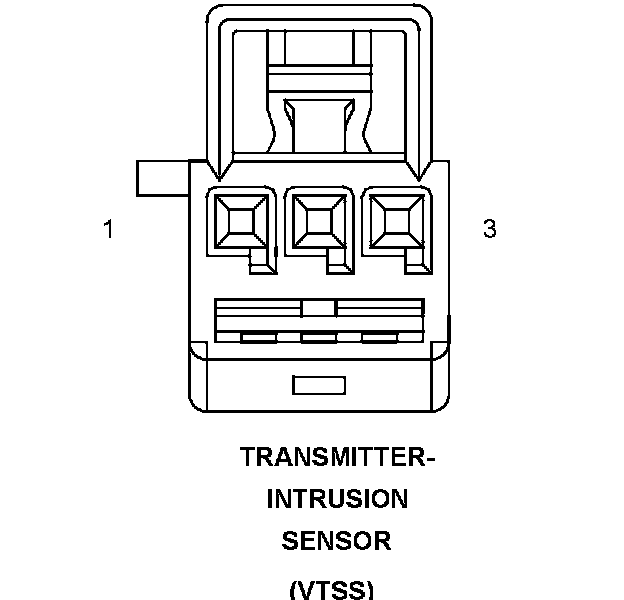

Transmitter-Intrusion Sensor

Component ID: 595
Component : TRANSMITTER-INTRUSION SENSOR

Connector:
Name : TRANSMITTER-INTRUSION SENSOR
Color :
# of pins : 3
Qualifier : (VTSS)




Pin Circuit Description
1 A645 20RD/VT INTRUSION TRANSMITTER SENSOR SIGNAL
2 - -
3 G945 20VT/DG SENSOR GROUND
