Battery

Component ID: 21
Component : BATTERY

Connector:

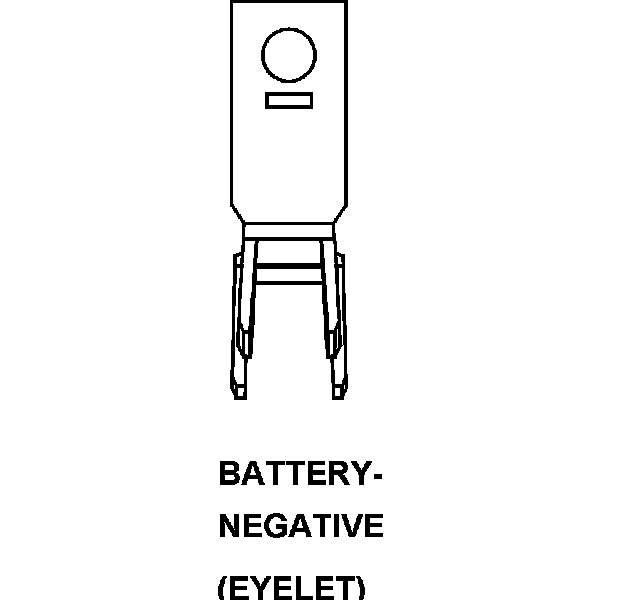

Name : BATTERY-NEGATIVE
Color :
# of pins : 1
Qualifier : (EYELET)




Pin Circuit Description
1 Z1 4BK GROUND
Pin Circuit Description
1 Z100 4BK/VT GROUND
Pin Circuit Description
1 Z1 6BK GROUND
Pin Circuit Description
1 Z100 6BK/VT GROUND

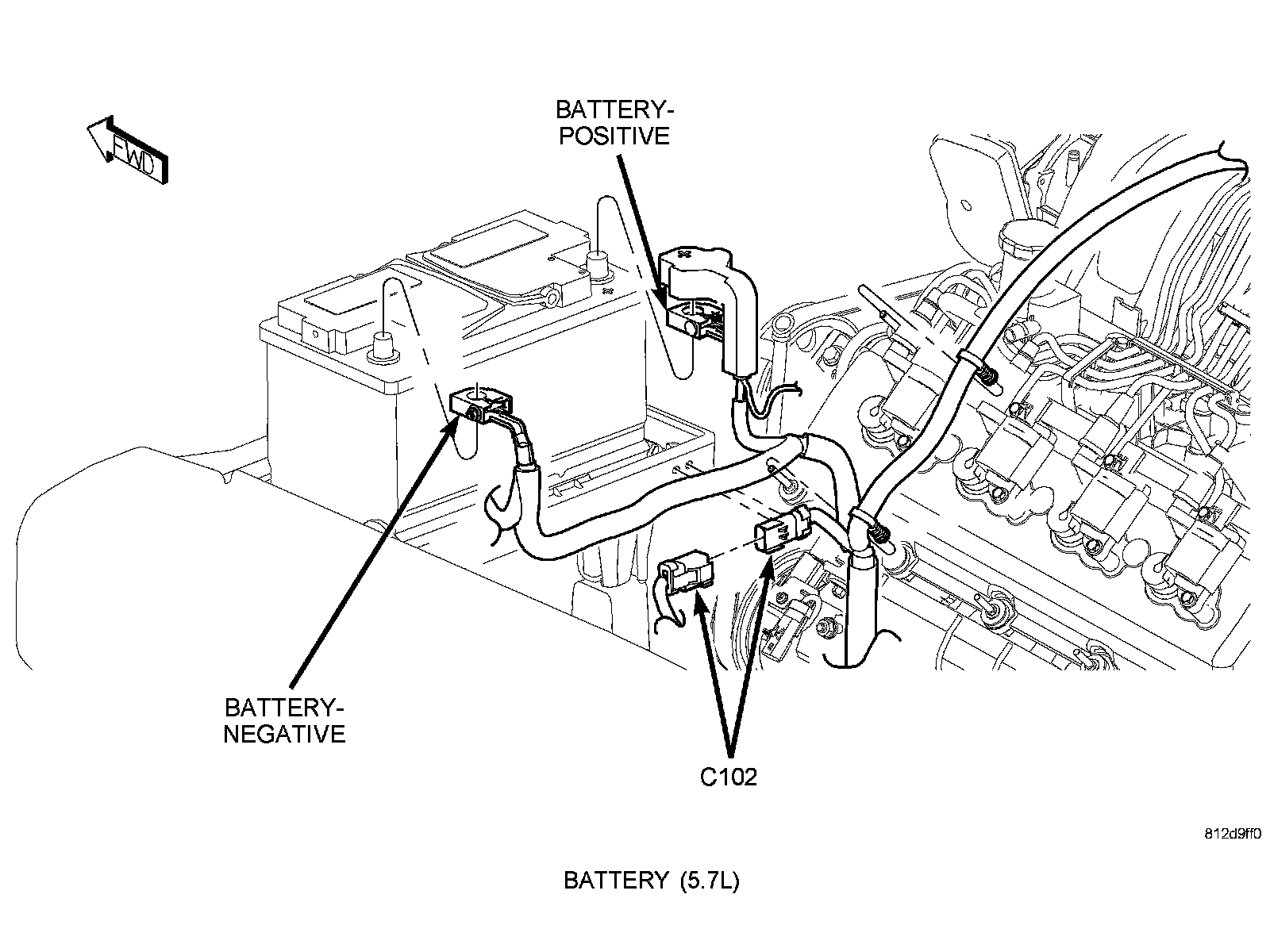

Component Location - 13




Component Location - 12






Connector:
Name : BATTERY-POSITIVE
Color :
# of pins : 1
Qualifier : (EYELET)




Pin Circuit Description
1 A1 6RD B(+)
Pin Circuit Description
1 A8 6RD B(+)

Component Location - 13




Component Location - 12
