Switch-Speed Control-Left

Component ID: 585

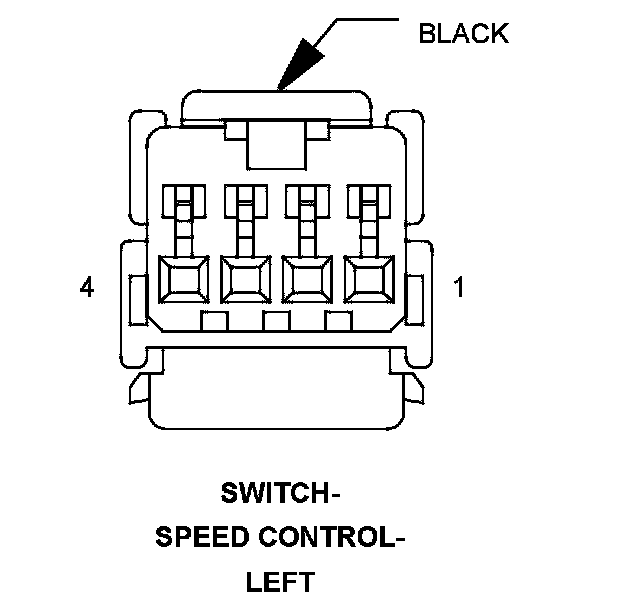

Component : SWITCH-SPEED CONTROL-LEFT

Connector:
Name : SWITCH-SPEED CONTROL-LEFT
Color : BLACK
# of pins : 4




Pin Circuit Description
1 V372 20OR/VT S/C SWITCH NO. 2 SIGNAL
2 V397 20VT/BR S/C SWITCH RETURN
3 V371 20VT/OR S/C SWITCH NO. 1 SIGNAL
4 - -

Component Location - 45
