Sensor-Side Impact-Left 2

Component ID: 530
Component : SENSOR-SIDE IMPACT-LEFT 2

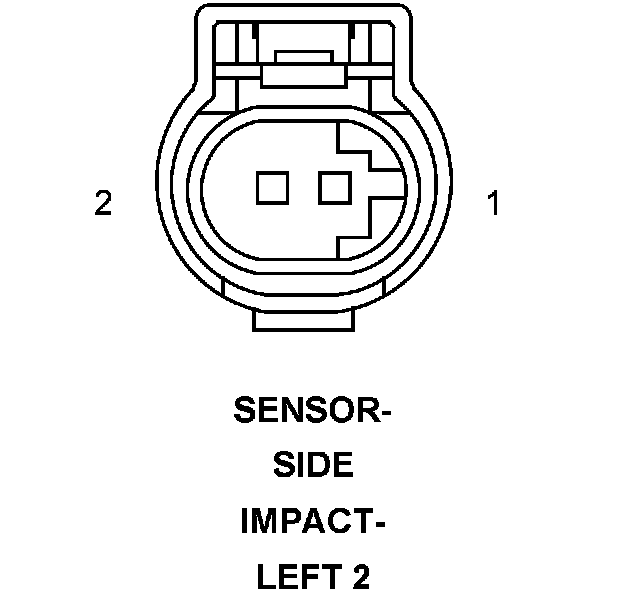

Connector:
Name : SENSOR-SIDE IMPACT-LEFT 2
Color : GRAY
# of pins : 2




Pin Circuit Description
1 R17 20LG LEFT SIDE IMPACT SENSOR 2 SIGNAL
2 R19 20LG/WT LEFT SIDE IMPACT SENSOR 2 GROUND

Component Location - 57
