Sensor-Side Impact-Left 3

Component ID: 531
Component : SENSOR-SIDE IMPACT-LEFT 3

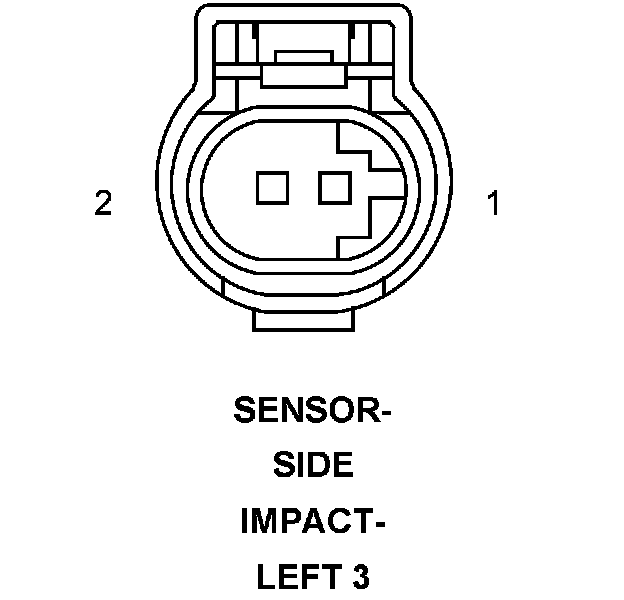

Connector:
Name : SENSOR-SIDE IMPACT-LEFT 3
Color : GRAY
# of pins : 2




Pin Circuit Description
1 R21 20LB/WT LEFT SIDE IMPACT SENSOR 3 SIGNAL
2 R23 20LB/YL LEFT SIDE IMPACT SENSOR 3 GROUND

Component Location - 57
