Switch-Bank-Lower

Component ID: 563
Component : SWITCH-BANK-LOWER

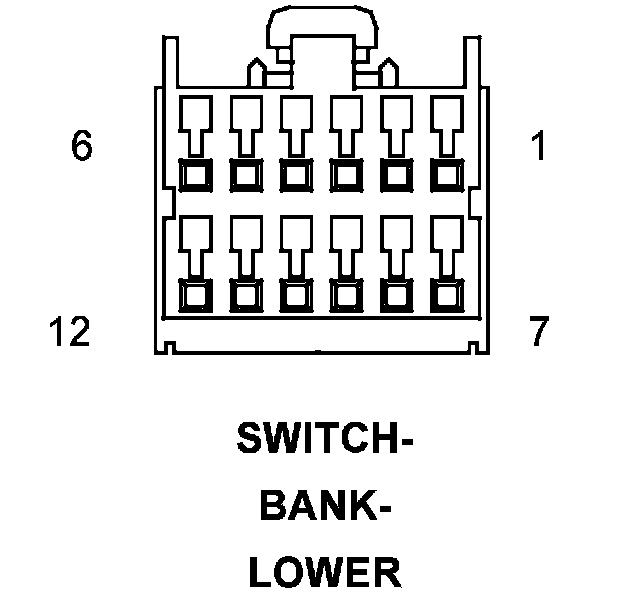

Connector:
Name : SWITCH-BANK-LOWER
Color :
# of pins : 12




Pin Circuit Description
1 - -
2 - -
3 - -
4 L91 20WT/DB HAZARD SWITCH SENSE
5 D500 20WT LIN BUS
6 Z18 18BK/LB GROUND
7 A108 20LG/RD FUSED B(+)
8 L778 20WT/LB FUSED PARK LAMP RELAY OUTPUT
9 L13 20WT/YL HEADLAMP LEVEL SENSOR SIGNAL
10 - -
11 - -
12 - -

Component Location - 41
