Switch-Bank-Upper

Component ID: 564

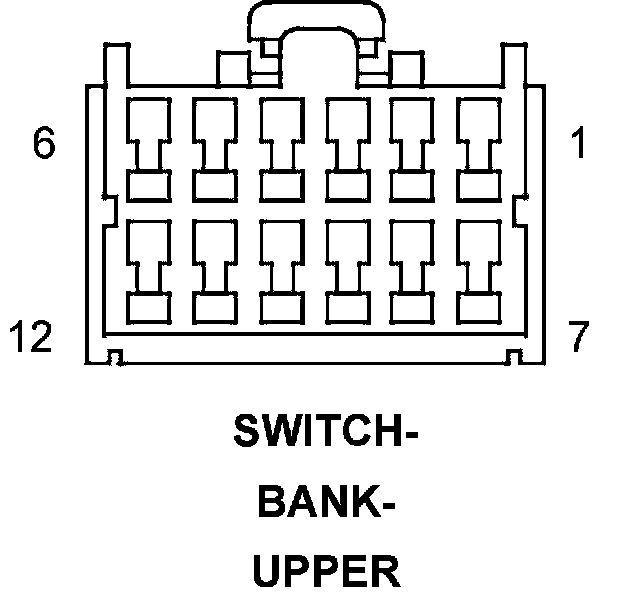

Component : SWITCH-BANK-UPPER

Connector:
Name : SWITCH-BANK-UPPER
Color :
# of pins : 12




Pin Circuit Description
1 - -
2 - -
3 - -
4 - -
5 - -
6 A108 20LG/RD FUSED B(+)
7 Z18 20BK/LB GROUND
8 D500 20WT LIN BUS
9 - -
10 - -
11 - -
12 - -

Component Location - 41
