System Diagram

Component ID: 14

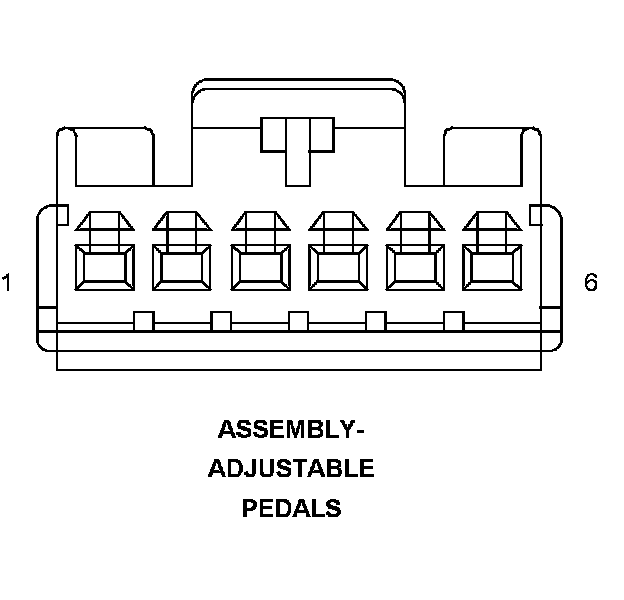

Component : ASSEMBLY-ADJUSTABLE PEDALS

Connector:
Name : ASSEMBLY-ADJUSTABLE PEDALS
Color :
# of pins : 6




Pin Circuit Description
1 P205 16LG/DB ADJUSTABLE PEDALS MOTOR FORWARD
2 P206 16LG/TN ADJUSTABLE PEDALS MOTOR REARWARD
3 G12 20VT/BR ADJUSTABLE PEDALS SENSOR SIGNAL
4 G11 20VT/TN ADJUSTABLE PEDALS SENSOR SUPPLY
5 G912 20VT/WT ADJUSTABLE PEDALS SENSOR RETURN
6 - -
