Switch-Power Window-Right Rear

Component ID: 577

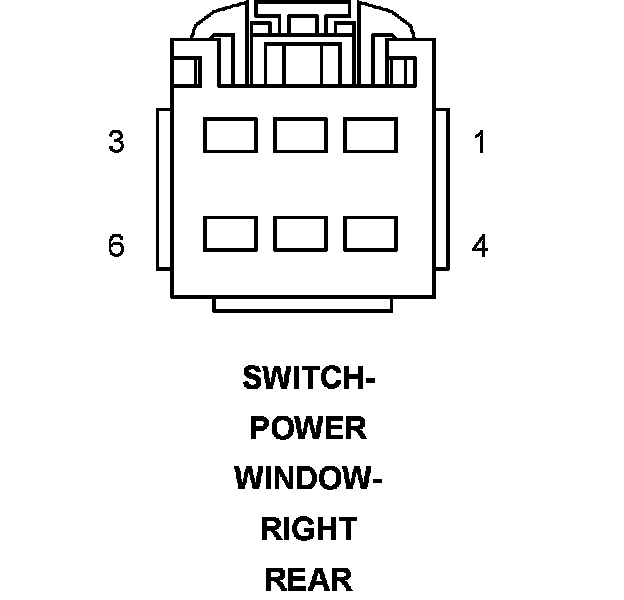

Component : SWITCH-POWER WINDOW-RIGHT REAR

Connector:
Name : SWITCH-POWER WINDOW-RIGHT REAR
Color :
# of pins : 6




Pin Circuit Description
1 Q612 16OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)
2 Q212 16OR/VT RIGHT REAR WINDOW DRIVER (DOWN)
3 Q112 16OR/BR RIGHT REAR WINDOW DRIVER (UP)
4 Q412 16OR/LB MASTER WINDOW SWITCH RIGHT REAR (UP)
5 - -
6 Q15 16OR/LB WINDOW LOCK OUT SWITCH OUTPUT

Component Location - 67
