Sunroof / Moonroof Motor

Component ID: 237
Component : MOTOR/MODULE-SUNROOF

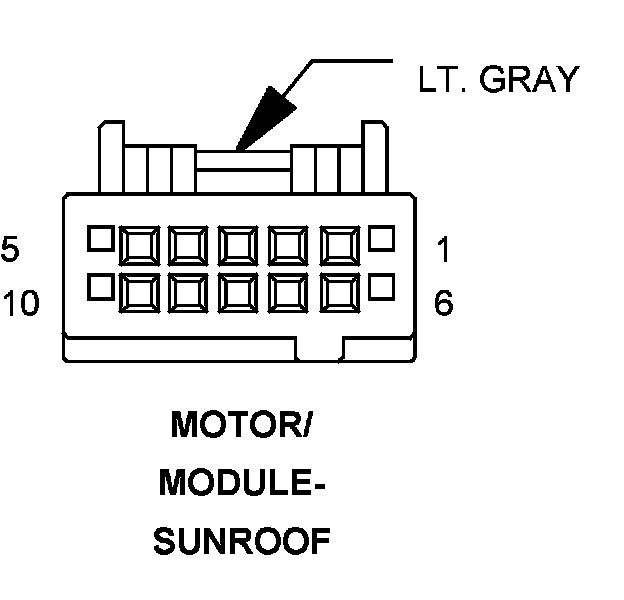

Connector:
Name : MOTOR/MODULE-SUNROOF
Color : LT. GRAY
# of pins : 10




Pin Circuit Description
1 - -
2 Q4 20OR/YL SUNROOF VENT SWITCH SENSE
3 Q3 20OR/TN SUNROOF OPEN SWITCH SENSE
4 D54 20WT CAN B BUS (-)
5 D55 20WT/OR CAN B BUS (+)
6 Z914 18BK GROUND
7 Q5 20OR/LB SUNROOF CLOSE SWITCH SENSE
8 A932 18RD FUSED B(+)
9 - -
10 Q6 20OR/LG SUNROOF SWITCH SUPPLY
