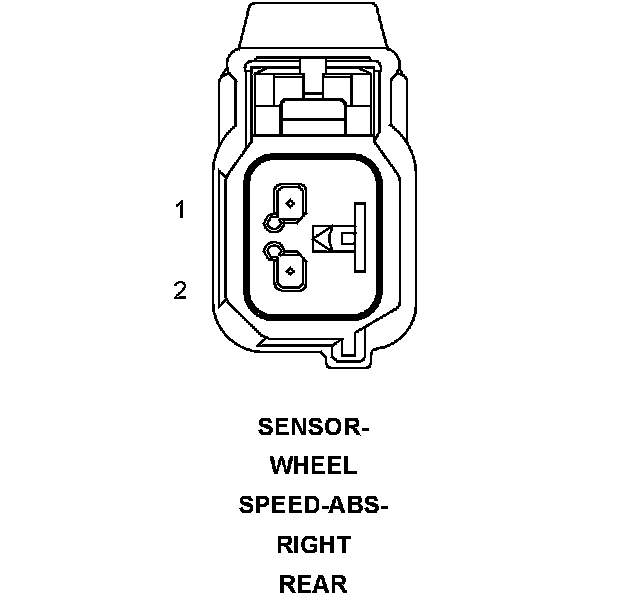

Sensor-Wheel Speed-ABS-Right Rear

Component ID: 542
Component : SENSOR-WHEEL SPEED-ABS-RIGHT REAR

Connector:
Name : SENSOR-WHEEL SPEED-ABS-RIGHT REAR
Color :
# of pins : 2




Pin Circuit Description
1 B2 20DG/LB RIGHT REAR WHEEL SPEED SENSOR SUPPLY
2 B1 20DG/DB RIGHT REAR WHEEL SPEED SENSOR SIGNAL

Component Location - 69
