Alignment: Specifications







ALIGNMENT

NOTE: Specifications are in degrees.

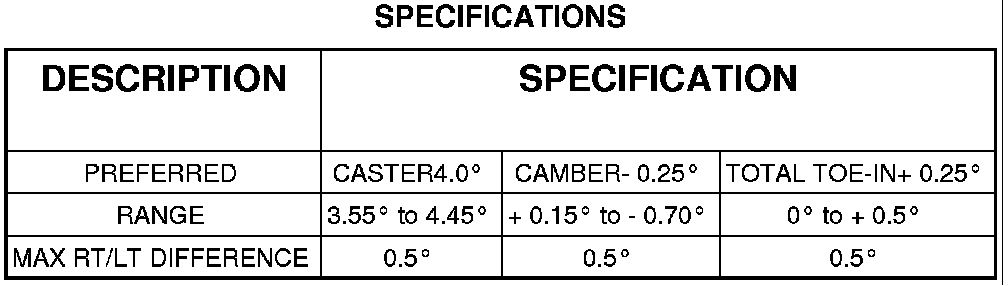

FRONT

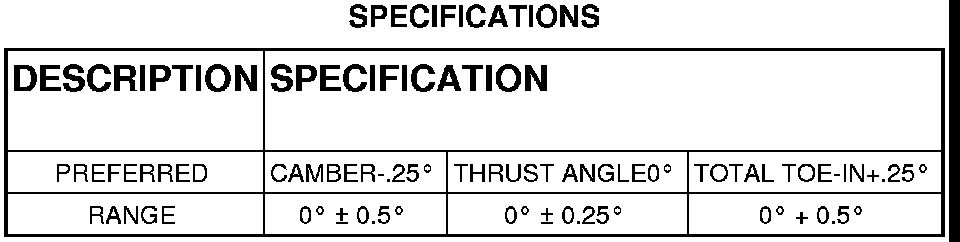

REAR AXLE

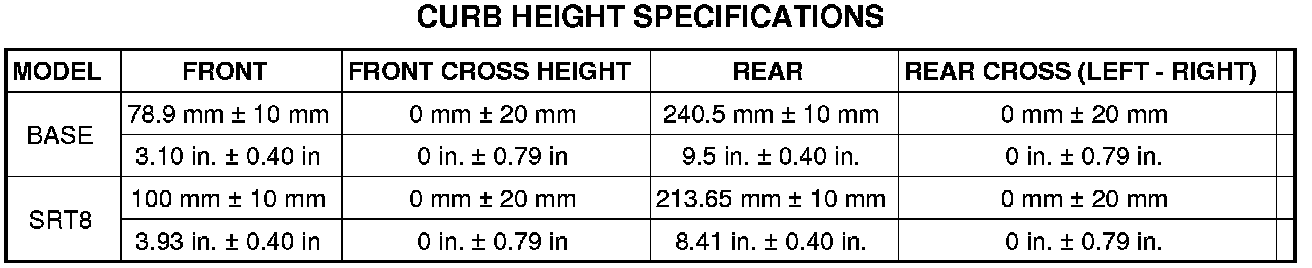

CURB HEIGHT SPECIFICATIONS
