Installation

DOOR (MEMORY) MODULE INSTALLATION






1. Position module on door trim panel and install fasteners.

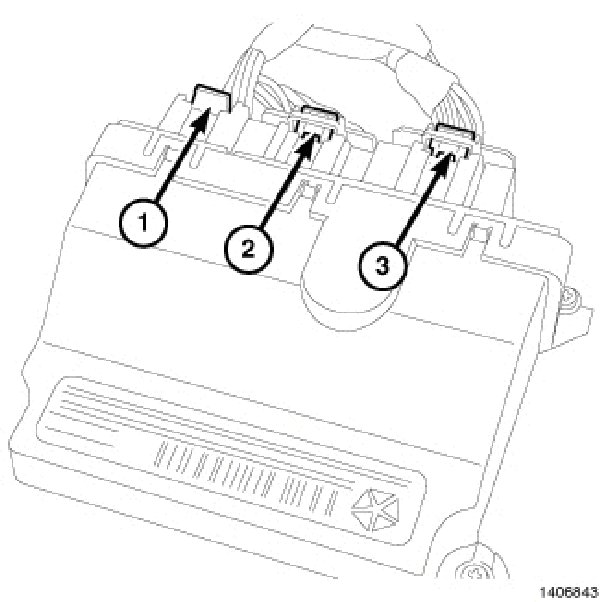

2. If applicable, first connect the black 12-way electrical connector (3), then connect the brown 20-way electrical connector (2). Then connect the black 10-way electrical connector to the module (1).

3. Install the door trim panel, Service and Repair

4. Connect the battery negative cable.
