Crankshaft Position Sensor - Installation

3.7L





1. Clean out machined hole in engine block.
2. Apply a small amount of engine oil to sensor o-ring.

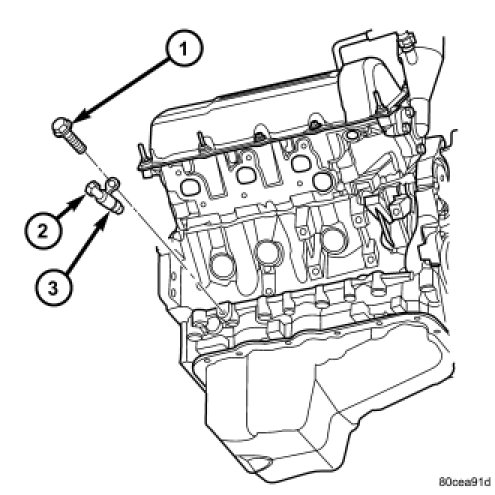

3. Install sensor (3) into engine block with a slight rocking and twisting action.

CAUTION: Before tightening sensor mounting bolt, be sure sensor is completely flush to cylinder block. If sensor is not flush, damage to sensor mounting tang may result.

4. Install mounting bolt (1) tighten to 28 Nm (21 ft. lbs.) torque.
5. Connect electrical connector to sensor.
6. Lower vehicle.
