Data Link Connector: Locations

Component ID: 85

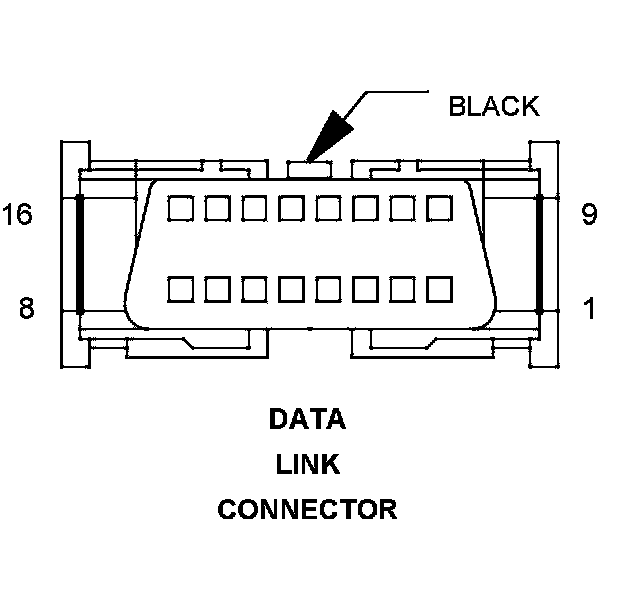

Component : DATA LINK CONNECTOR

Connector:
Name : DATA LINK CONNECTOR
Color : BLACK
# of pins : 16




Pin Circuit Description
1 - -
2 - -
3 - -
4 Z111 20BK/WT GROUND
5 Z11 20BK/LG GROUND
6 D72 20WT/LB DIAGNOSTIC CAN C (+)
7 - -
8 - -
9 - -
10 - -
11 - -
12 - -
13 - -
14 D71 20WT/DB DIAGNOSTIC CAN C (-)
15 - -
16 A108 20LG/RD FUSED B(+)

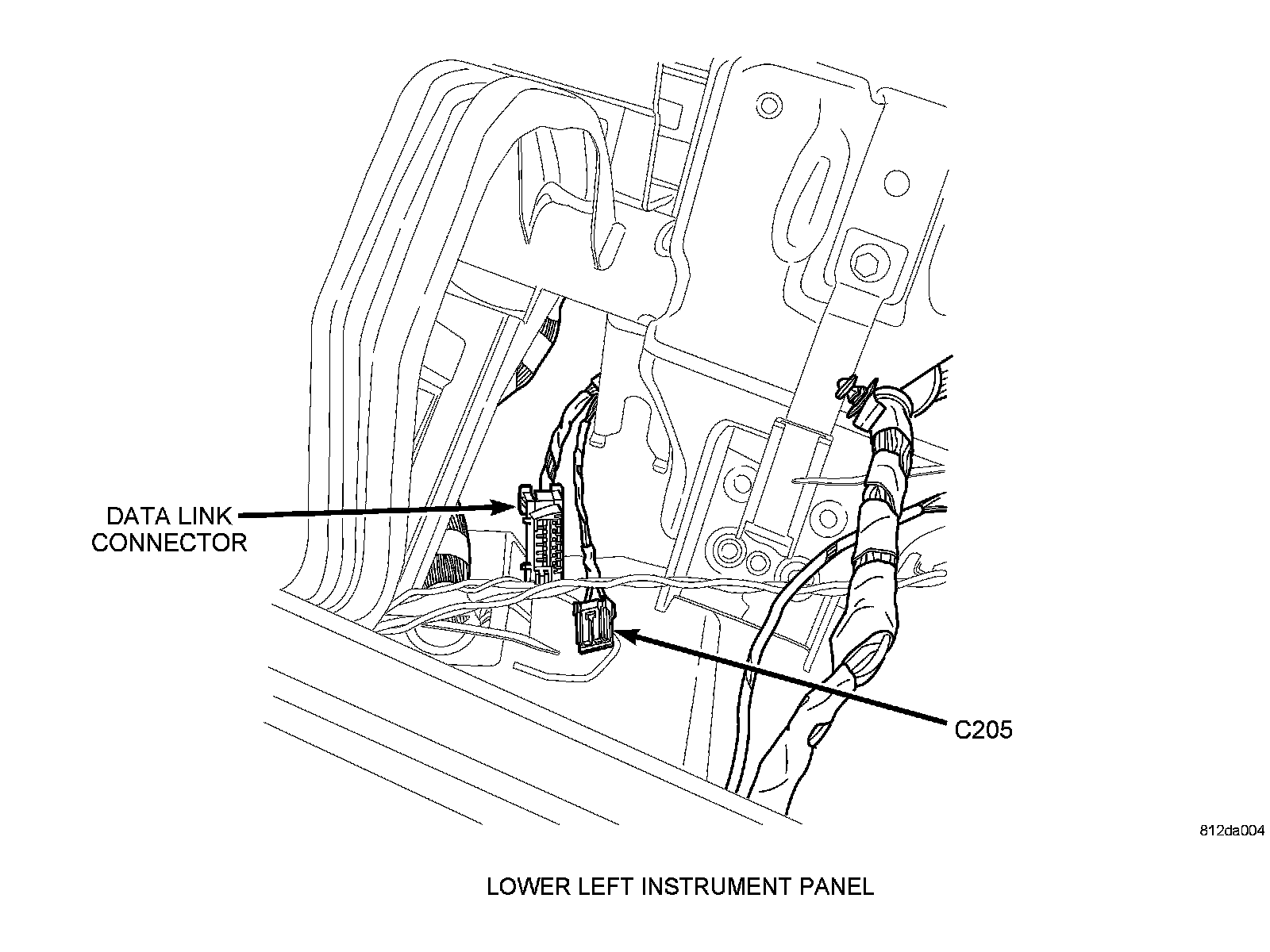

Component Location - 35
