Oil Pressure Sensor: Locations

Component ID: 507
Component : SENSOR-OIL PRESSURE

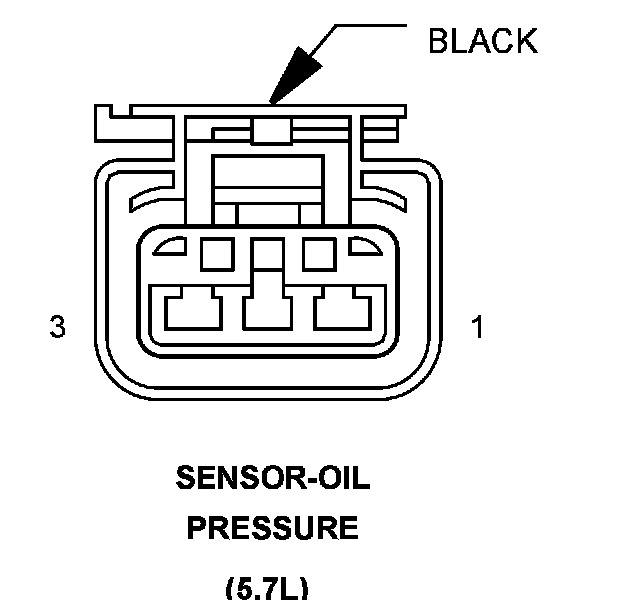

Connector:
Name : SENSOR-OIL PRESSURE
Color : BLACK
# of pins : 3
Qualifier : (5.7L)




Pin Circuit Description
1 F855 20PK/YL 5 VOLT SUPPLY
2 G6 20VT/GY ENGINE OIL PRESSURE SIGNAL
3 K900 20DB/DG SENSOR GROUND

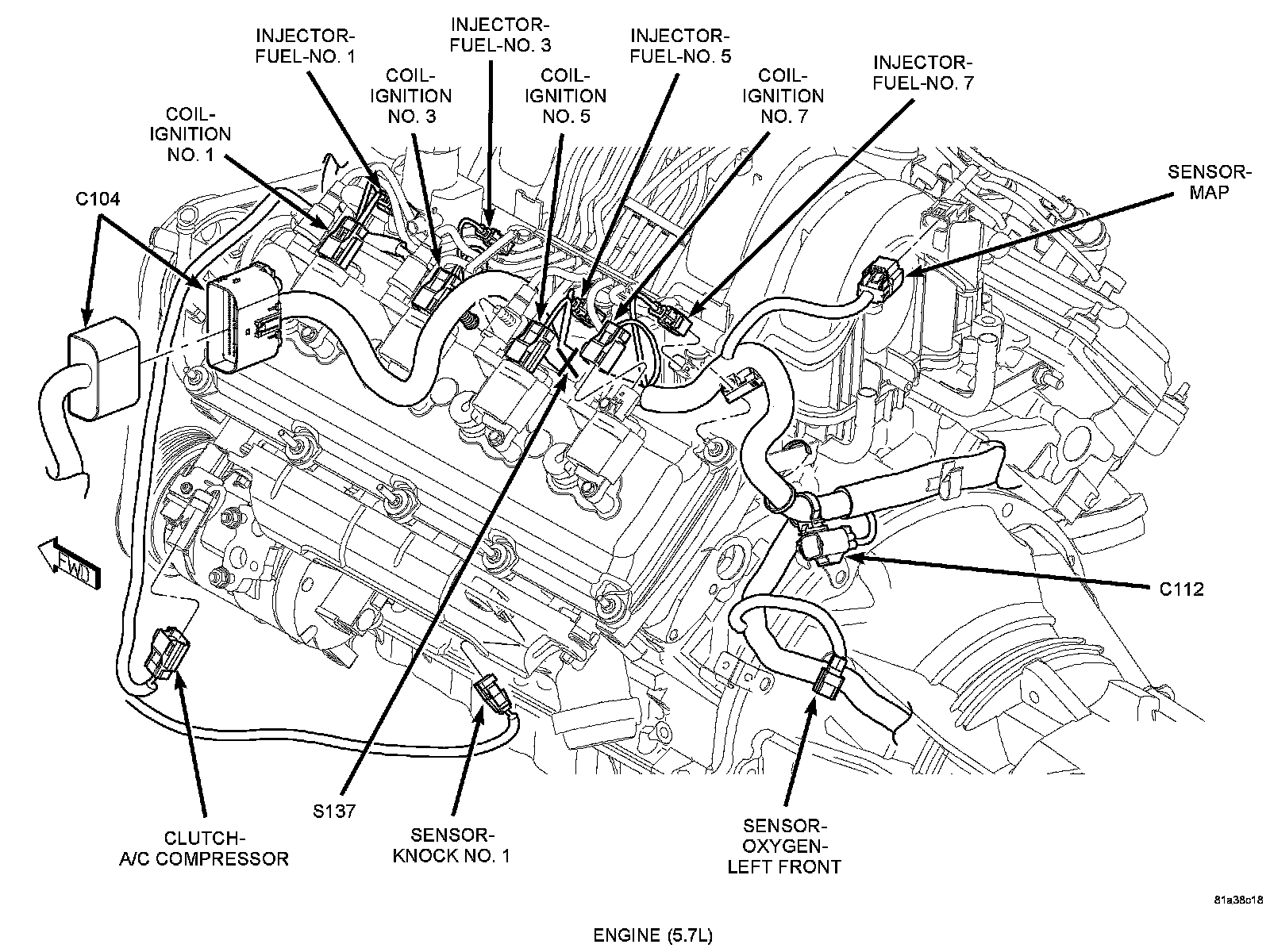

Component Location - 24

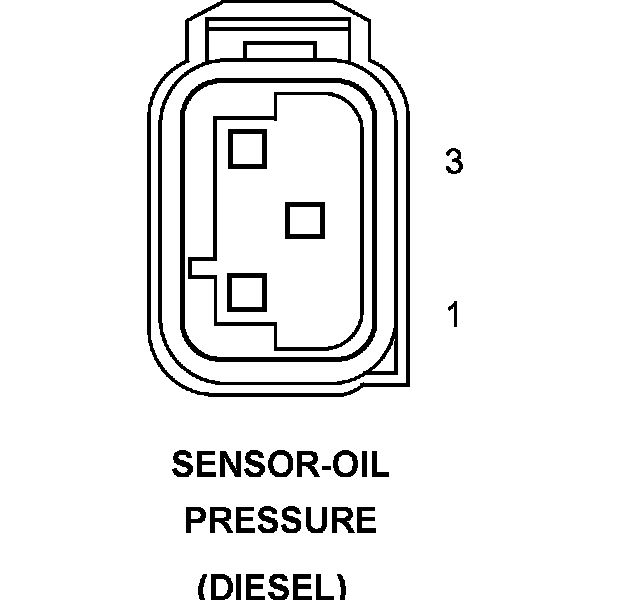

Connector:
Name : SENSOR-OIL PRESSURE
Color :
# of pins : 3
Qualifier : (DIESEL)




Pin Circuit Description
1 F851 20DG OIL PRESSURE SENSOR 5 VOLT SUPPLY
2 G6 20BL/RD OIL PRESSURE SENSOR SIGNAL
3 K936 20GY/PK OIL PRESSURE SENSOR GROUND

Component Location - 24
