Sensor-Oxygen-Left Rear

Component ID: 512
Component : SENSOR-OXYGEN-LEFT REAR

Connector:

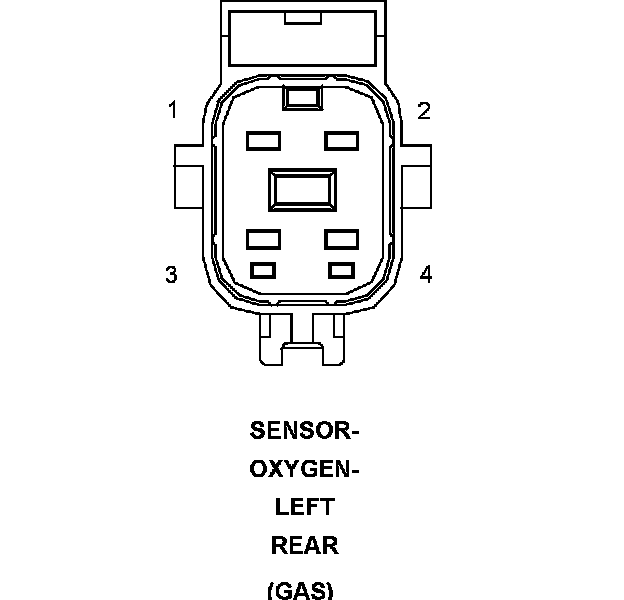

Name : SENSOR-OXYGEN-LEFT REAR
Color :
# of pins : 4
Qualifier : (GAS)




Pin Circuit Description
1 Z42 20BK/LG GROUND
2 K299 20BR/OR O2 1/2 HEATER CONTROL
3 K904 20DB/DG O2 RETURN (DOWNSTREAM)
3 K904 20DB/WT O2 RETURN (DOWNSTREAM)
4 K141 20DB/YL O2 1/2 SIGNAL

Component Location - 21




Component Location - 23




Component Location - 28
