Sensor-Oxygen-Right Front

Component ID: 513
Component : SENSOR-OXYGEN-RIGHT FRONT

Connector:

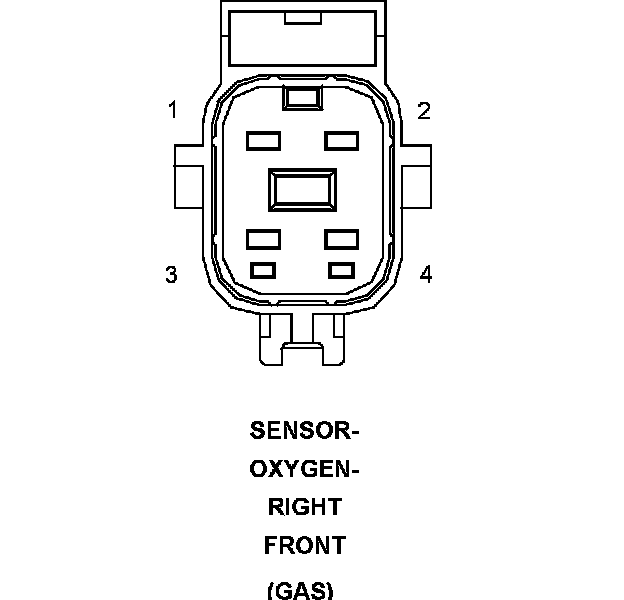

Name : SENSOR-OXYGEN-RIGHT FRONT
Color :
# of pins : 4
Qualifier : (GAS)




Pin Circuit Description
1 Z42 20BK/LG GROUND
2 K199 20BR/VT O2 2/1 HEATER CONTROL
3 K902 20BR/DG O2 RETURN (UPSTREAM)
4 K43 20DB/PK O2 2/1 SIGNAL
4 K43 20DB/LG O2 2/1 SIGNAL

Component Location - 21




Component Location - 23




Component Location - 28
