System Specifications

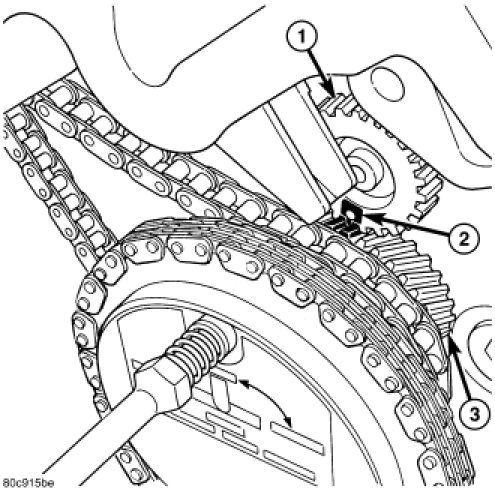

TIMING CHAIN TENSIONER TORQUE

Timing chain tensioner 28 Nm (250 in. lbs.).

IDLER SPROCKET TORQUE





Idler Sprocket 34 Nm (25 ft.lbs.).

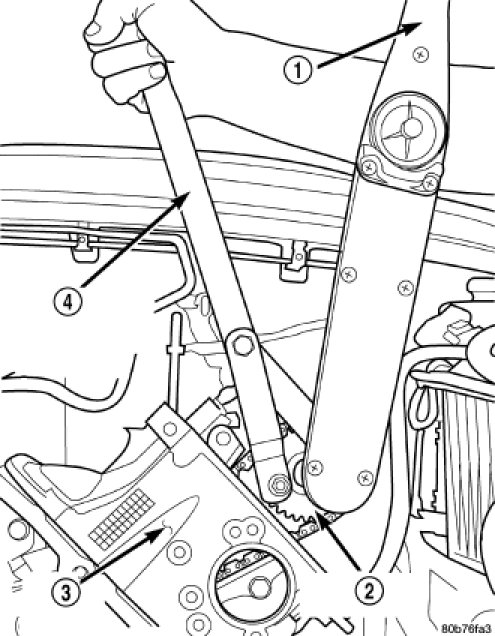

CAMSHAFT SPROCKET





Camshaft sprocket 122 Nm (90 ft.lbs.).

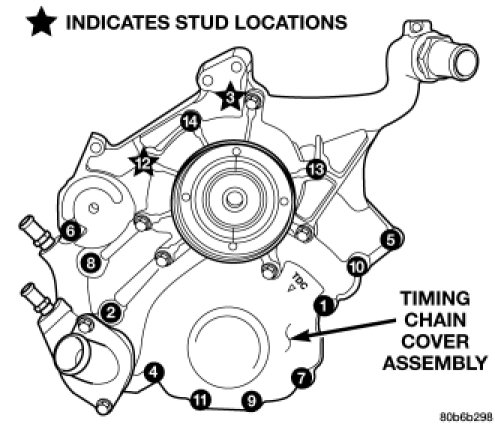

TIMING CHAIN COVER





Timing chain cover in sequence as shown 58 Nm (43 ft. lbs.).
