Transmission Control Module - Installation

3.7L GAS/3.0L DIESEL VEHICLES

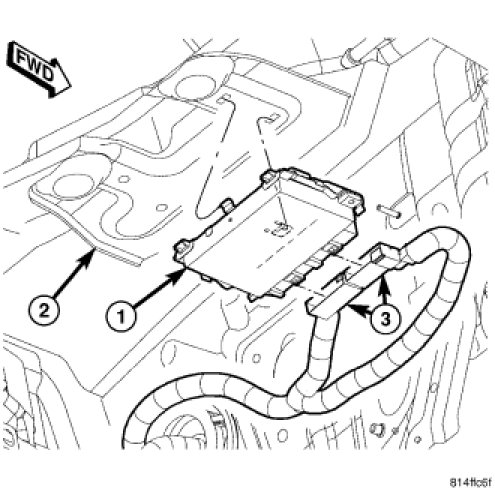

1. Connect the wiring connectors (3) to the transmission control module (1).
2. Install the module to the dash panel (2) or the mounting bracket.
3. Fold the dash panel silencer pad back over the module and retain the pad in place with suitable adhesive tape.
