Alternator

Component ID: 147
Component : GENERATOR

Connector:
Name : GENERATOR
Color :
# of pins : 1
Qualifier : (DIESEL EYELET)




Pin Circuit Description
1 A11 4BR/RD FUSED B(+)

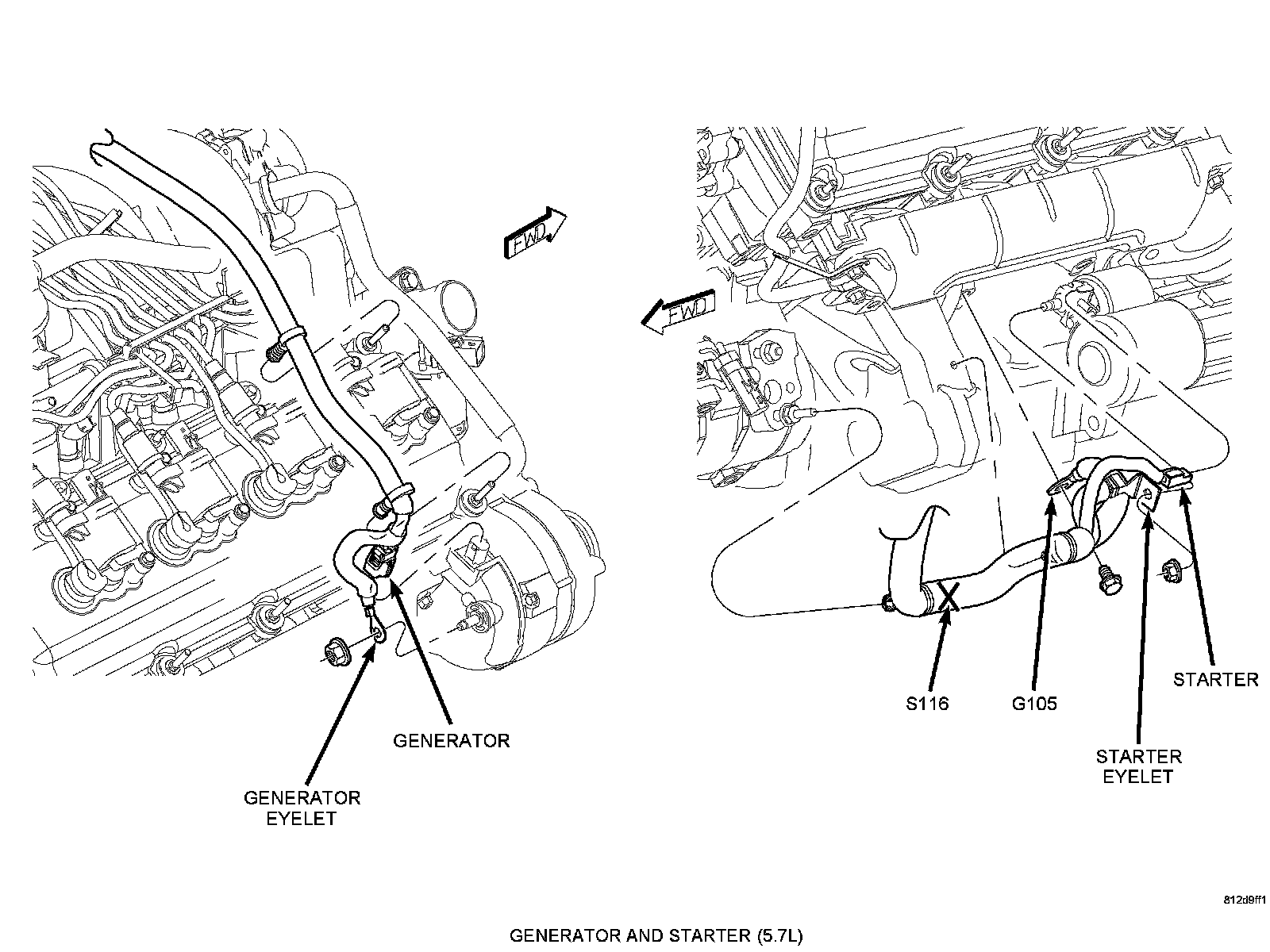

Component Location - 14




Component Location - 12

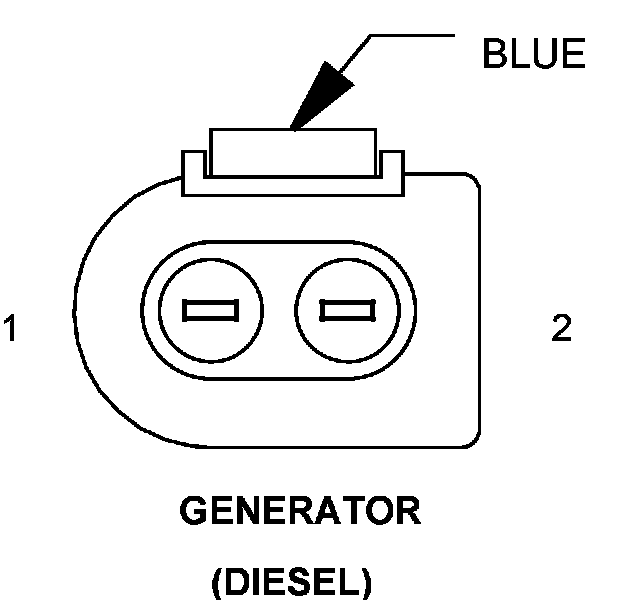

Connector:
Name : GENERATOR
Color : BLUE
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 D509 20WT/BL LIN BUS
2 A923 10RD FUSED B(+)

Component Location - 14




Component Location - 12

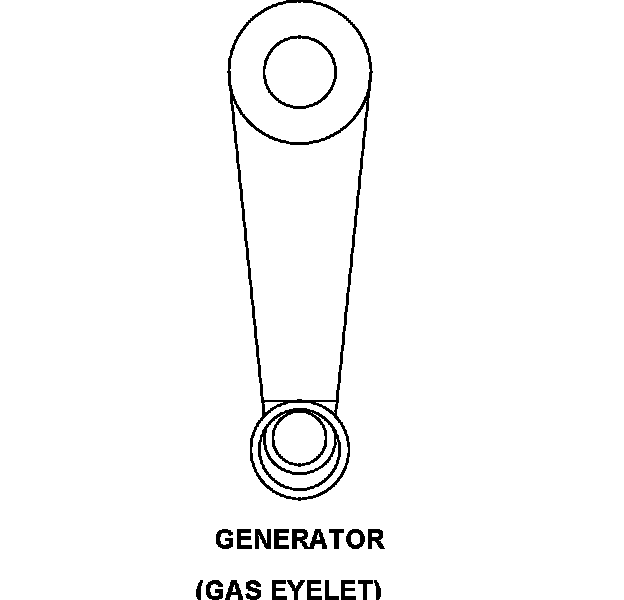

Connector:
Name : GENERATOR
Color :
# of pins : 1
Qualifier : (GAS EYELET)




Pin Circuit Description
1 A11 6BR/RD FUSED B(+)

Component Location - 14




Component Location - 12

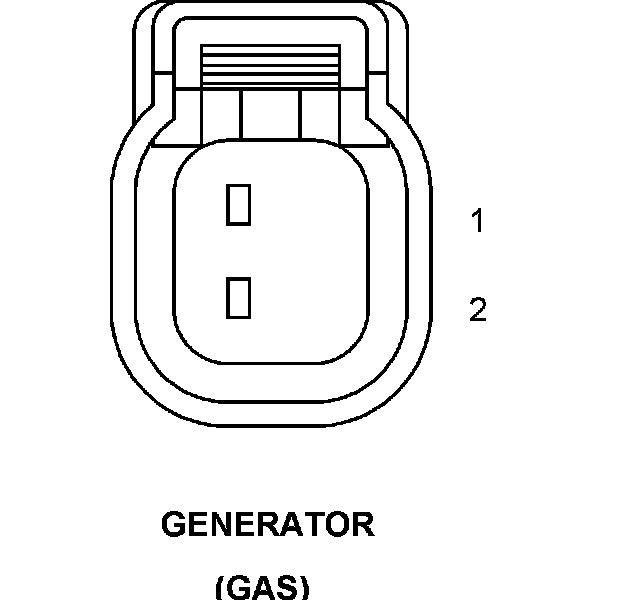

Connector:
Name : GENERATOR
Color :
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 K125 16BR/DG GEN FIELD CONTROL
2 A803 16BR/DG GEN SENSE
2 A803 16LB GEN SENSE

Component Location - 14




Component Location - 12
