Power Outlet-Console

Component ID: 260

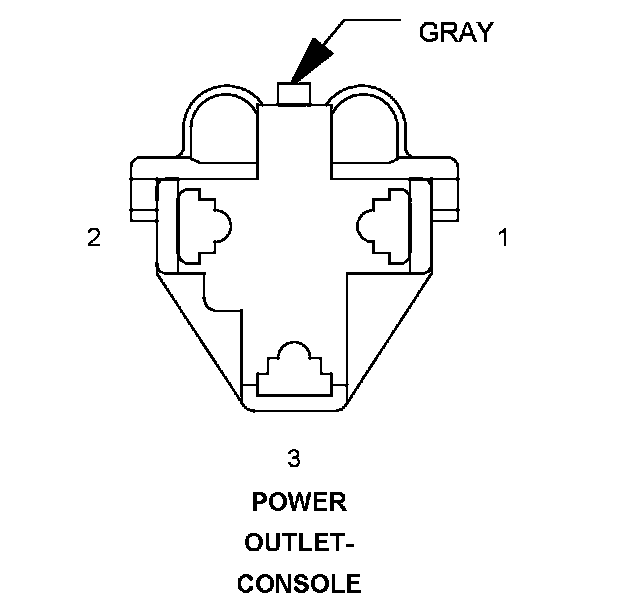

Component : POWER OUTLET-CONSOLE

Connector:
Name : POWER OUTLET-CONSOLE
Color : GRAY
# of pins : 3




Pin Circuit Description
1 A405 14RD/DB FUSED B(+)
2 - -
3 Z905 16BK GROUND

Component Location - 41
