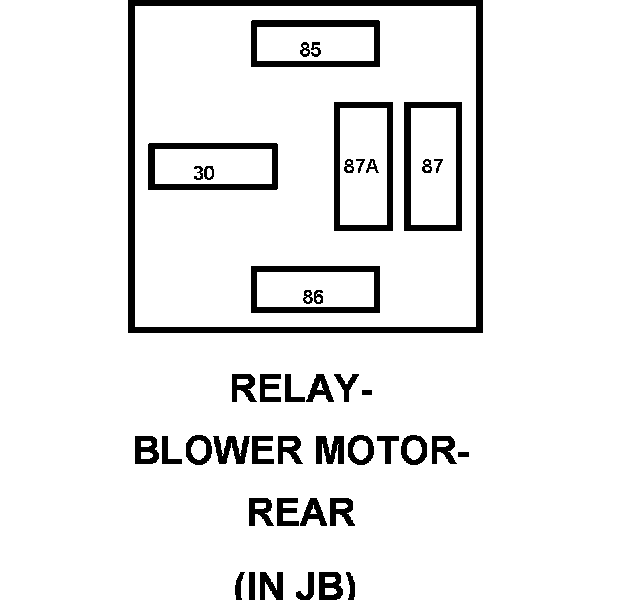

Relay-Blower Motor-Rear

Component ID: 272
Component : RELAY-BLOWER MOTOR-REAR

Connector:
Name : RELAY-BLOWER MOTOR-REAR
Color :
# of pins : 0




30 A611 14RD FUSED B(+)
85 Z911 20BK GROUND
86 C105 20LB/LG REAR HVAC CONTROL
87 C51 14LB/BR REAR BLOWER MOTOR RELAY OUTPUT
87A - -
