Motor-Blower-Rear

Component ID: 239
Component : MOTOR-BLOWER-REAR

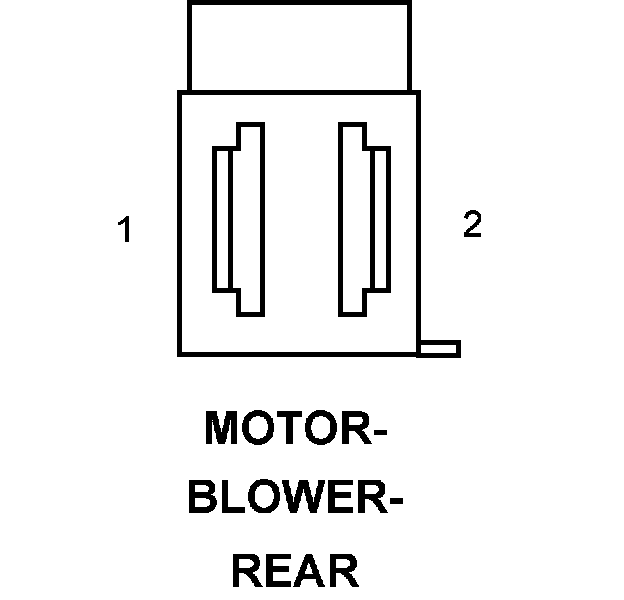

Connector:
Name : MOTOR-BLOWER-REAR
Color :
# of pins : 2




Pin Circuit Description
1 C951 14BK/WT REAR BLOWER HIGH SPEED
2 C51 14LB/BR REAR BLOWER MOTOR RELAY OUTPUT

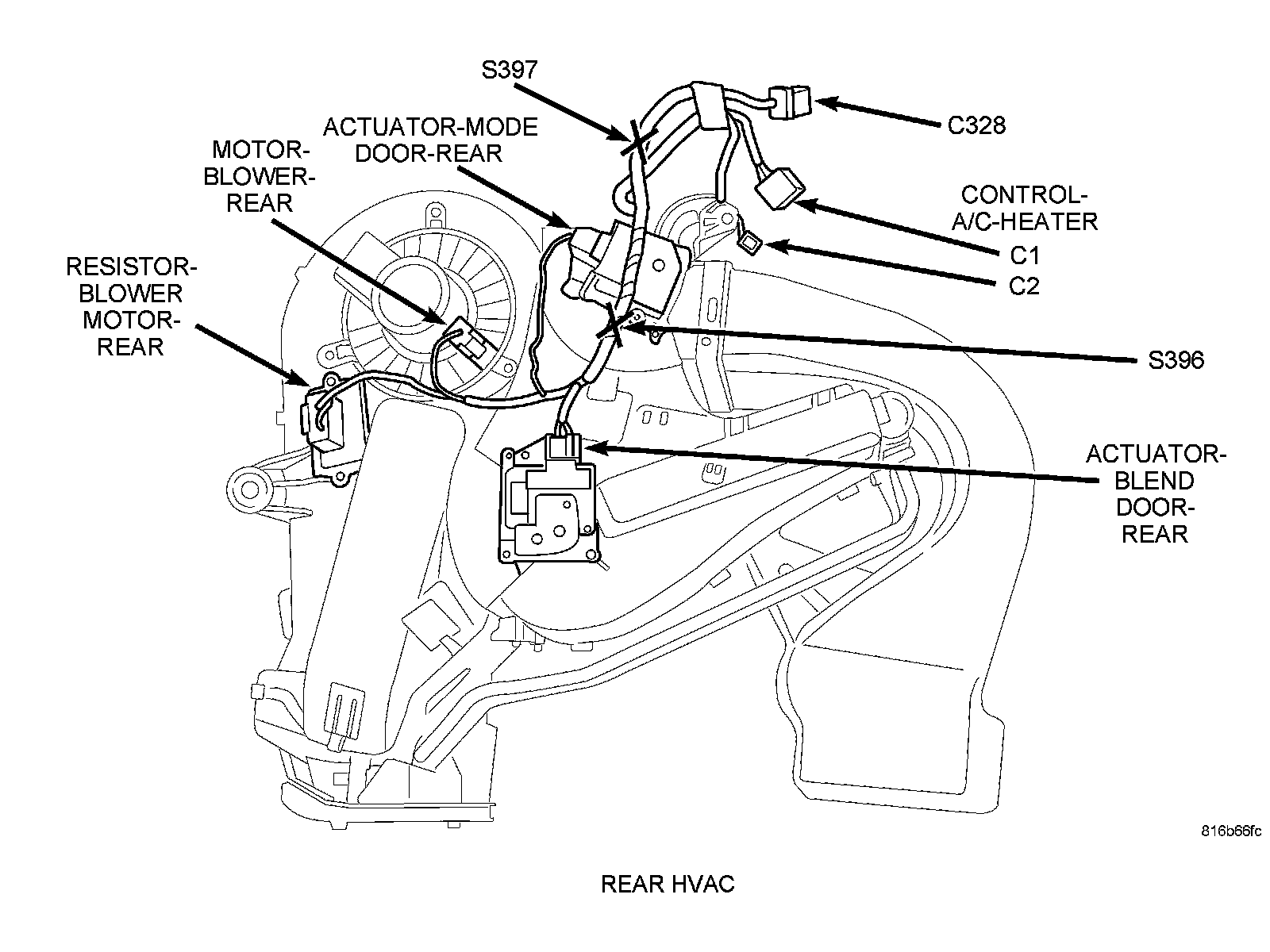

Component Location - 60
