Compressor Clutch Relay

Component ID: 268

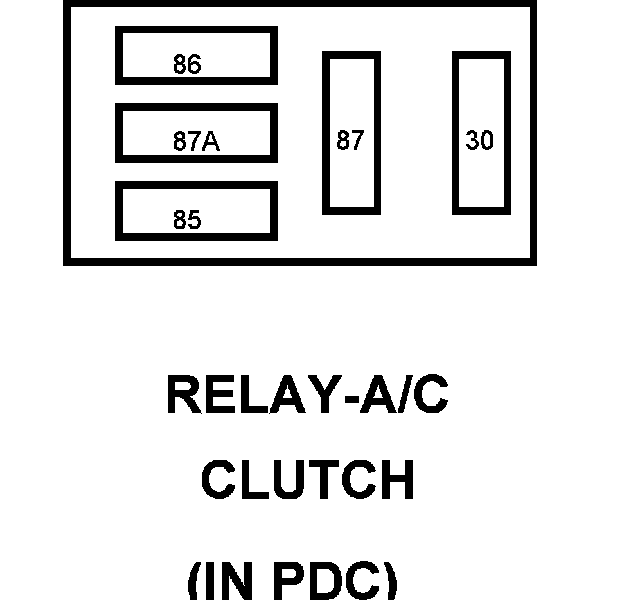

Component : RELAY-A/C CLUTCH

Connector:
Name : RELAY-A/C CLUTCH
Color :
# of pins : 0




30 A917 18RD/DG FUSED B(+)
85 C13 20LB/OR A/C CLUTCH RELAY CONTROL
86 A15 16RD/TN FUSED ASD RELAY OUTPUT
86 F942 20PK/LG FUSED IGNITION SWITCH OUTPUT (RUN-START)
87 C3 18DB/YL A/C CLUTCH RELAY OUTPUT
87A - -
