Sensor-Wheel Speed-ABS-Left Front

Component ID: 539
Component : SENSOR-WHEEL SPEED-ABS-LEFT FRONT

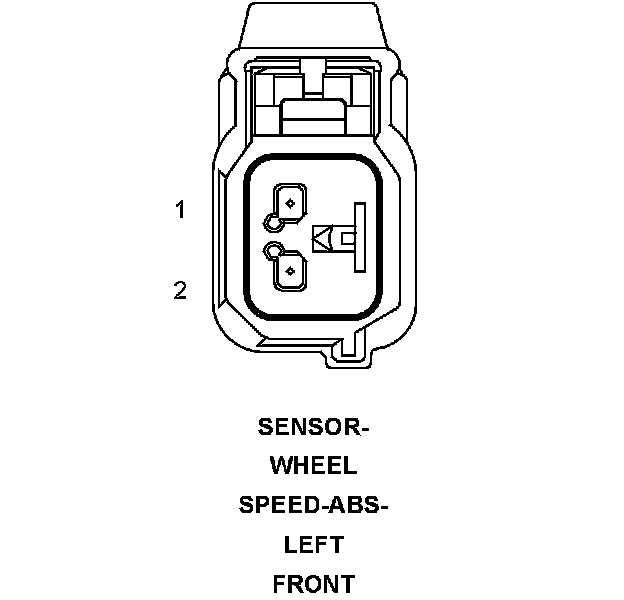

Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT FRONT
Color :
# of pins : 2




Pin Circuit Description
1 B9 20DG/LG LEFT FRONT WHEEL SPEED SENSOR SUPPLY
2 B8 20DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL

Component Location - 1
