Sensor-Wheel Speed-ABS-Left Rear

Component ID: 540

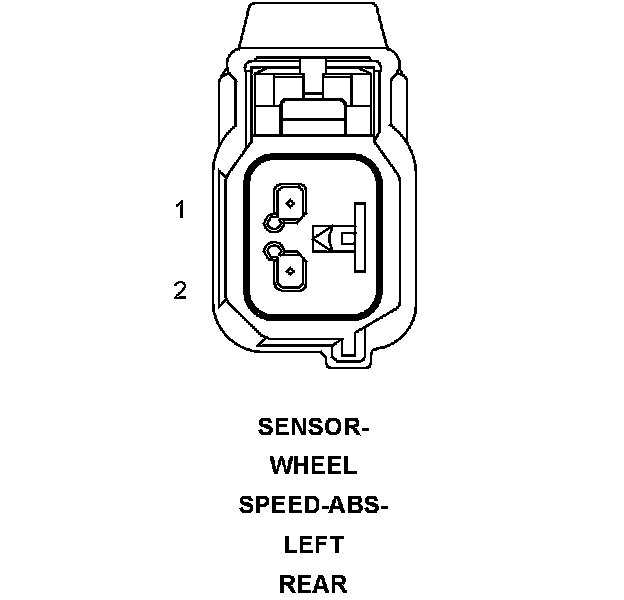

Component : SENSOR-WHEEL SPEED-ABS-LEFT REAR

Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT REAR
Color :
# of pins : 2




Pin Circuit Description
1 B4 20DG/WT LEFT REAR WHEEL SPEED SENSOR SUPPLY
2 B3 20DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL

Component Location - 69
