Sensor-Wheel Speed-ABS-Right Front

Component ID: 541
Component : SENSOR-WHEEL SPEED-ABS-RIGHT FRONT

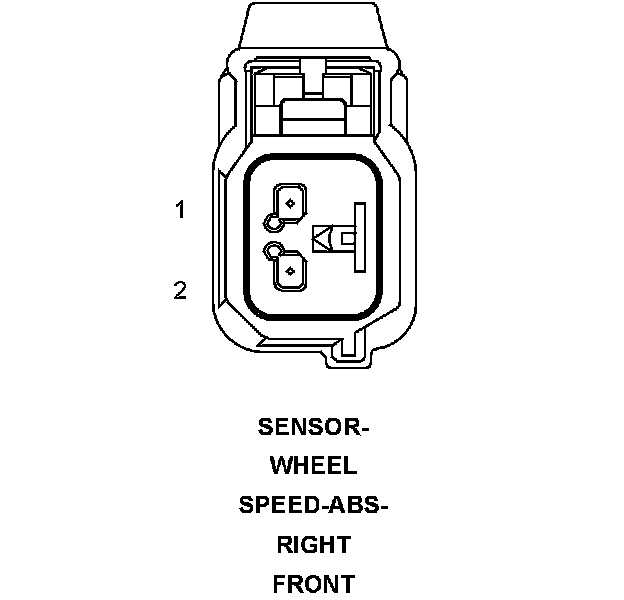

Connector:
Name : SENSOR-WHEEL SPEED-ABS-RIGHT FRONT
Color :
# of pins : 2




Pin Circuit Description
1 B7 20DG/VT RIGHT FRONT WHEEL SPEED SENSOR SUPPLY
2 B6 20DG/TN RIGHT FRONT WHEEL SPEED SENSOR SIGNAL

Component Location - 1
