Installation

INSTALLATION

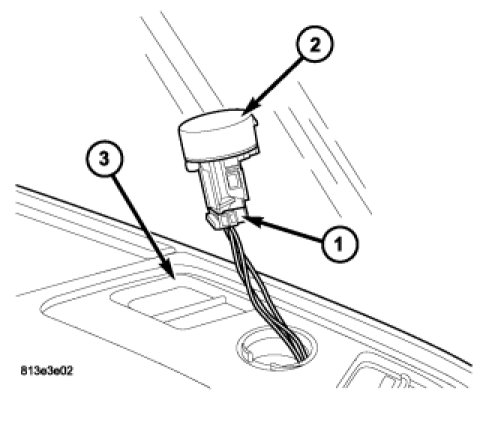

1. Position the sun sensor (2) near the instrument panel (3).
2. Connect the wiring harness connector (1) to the sun sensor.
3. Align the tab on the sun sensor with the opening in the instrument panel and install the sensor onto the instrument panel. Make sure that the sensor's retaining clips located at the front of the sensor near the windshield are fully engaged to the instrument panel.
4. Reconnect the negative battery cable.
