Interior Fuse Panel
Interior Fuses
The fuse panel is on the lower instrument panel just to the left of the steering column.

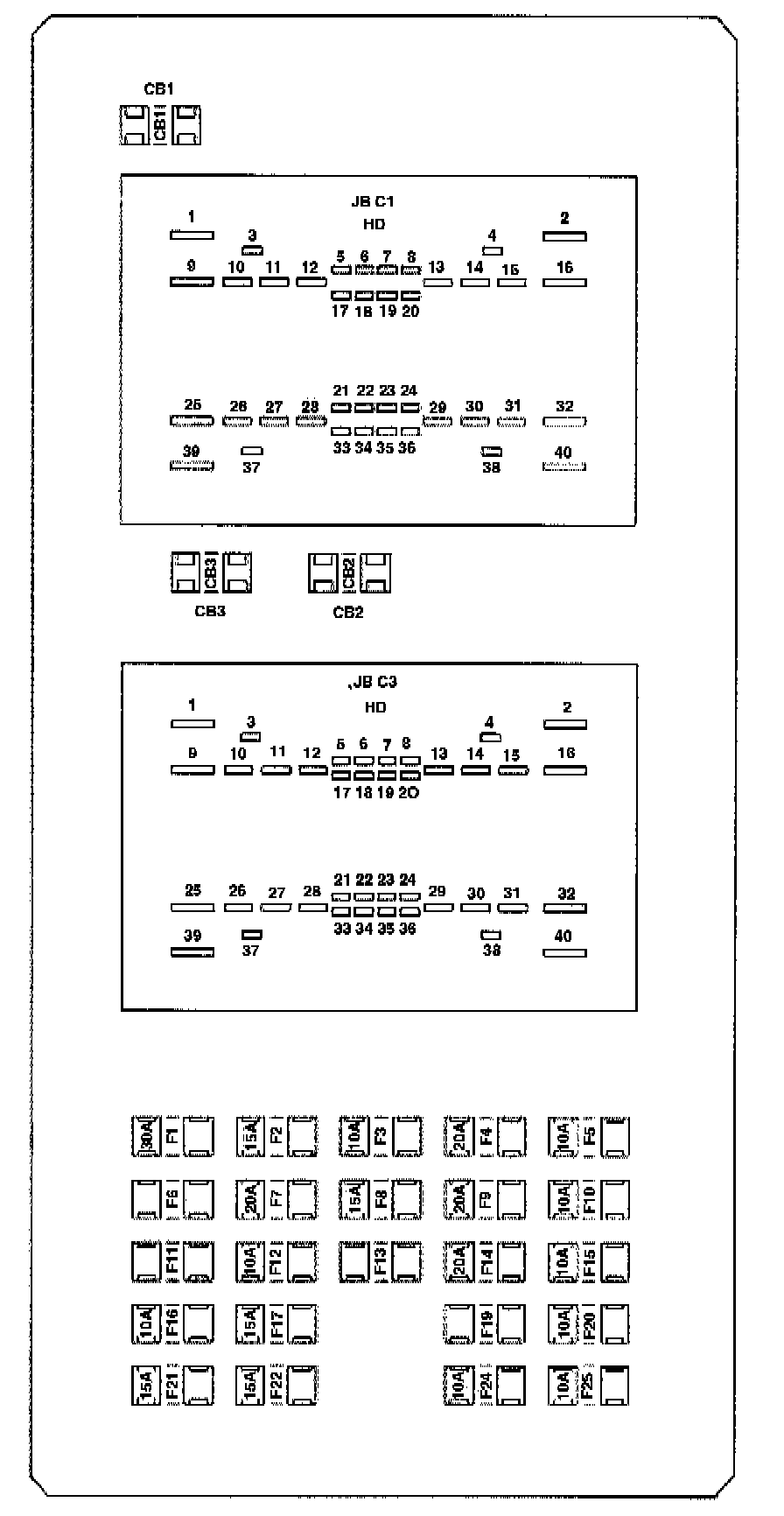

Interior Fuse Panel:

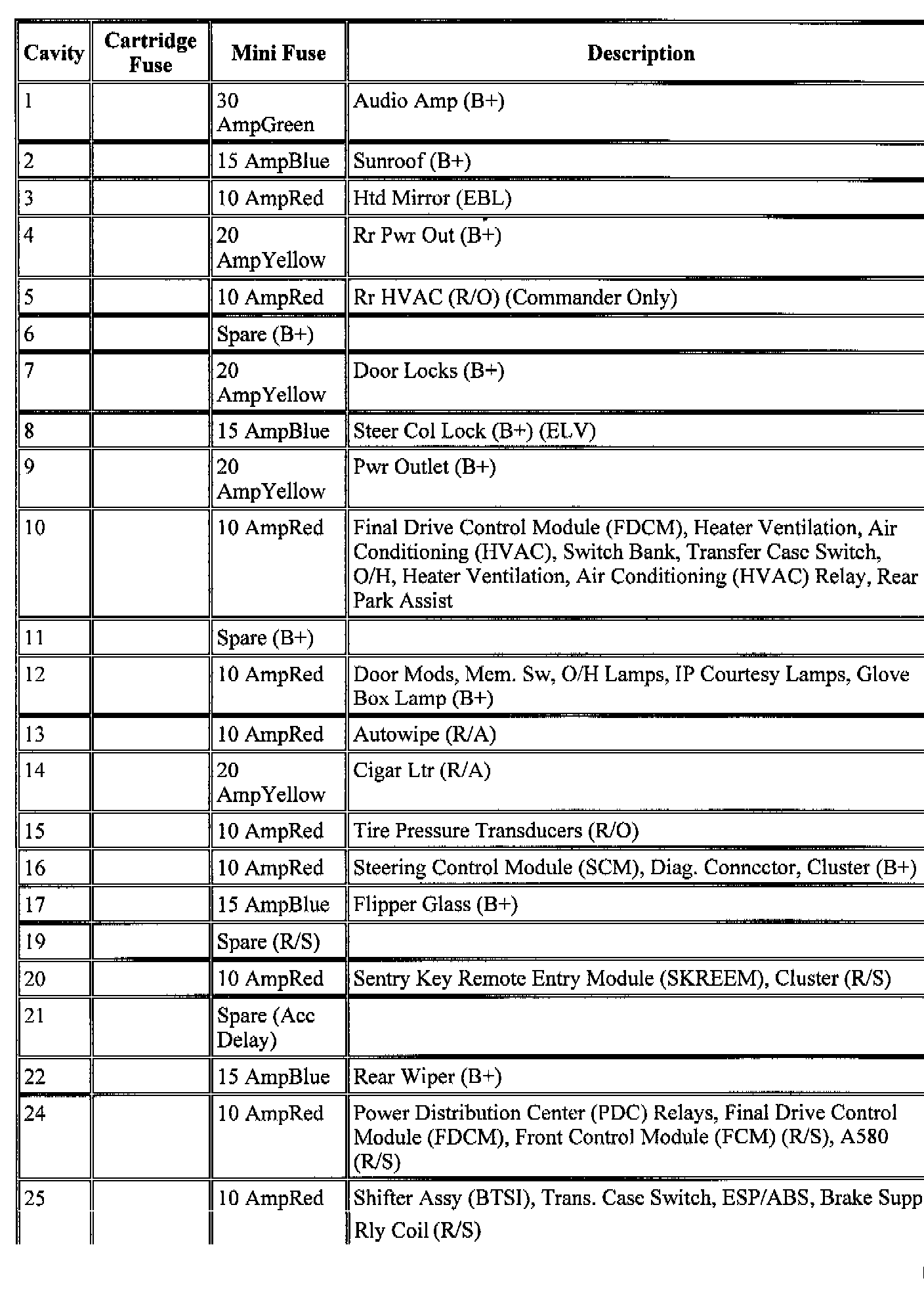

Fuse 1 - 25:
Interior Relays

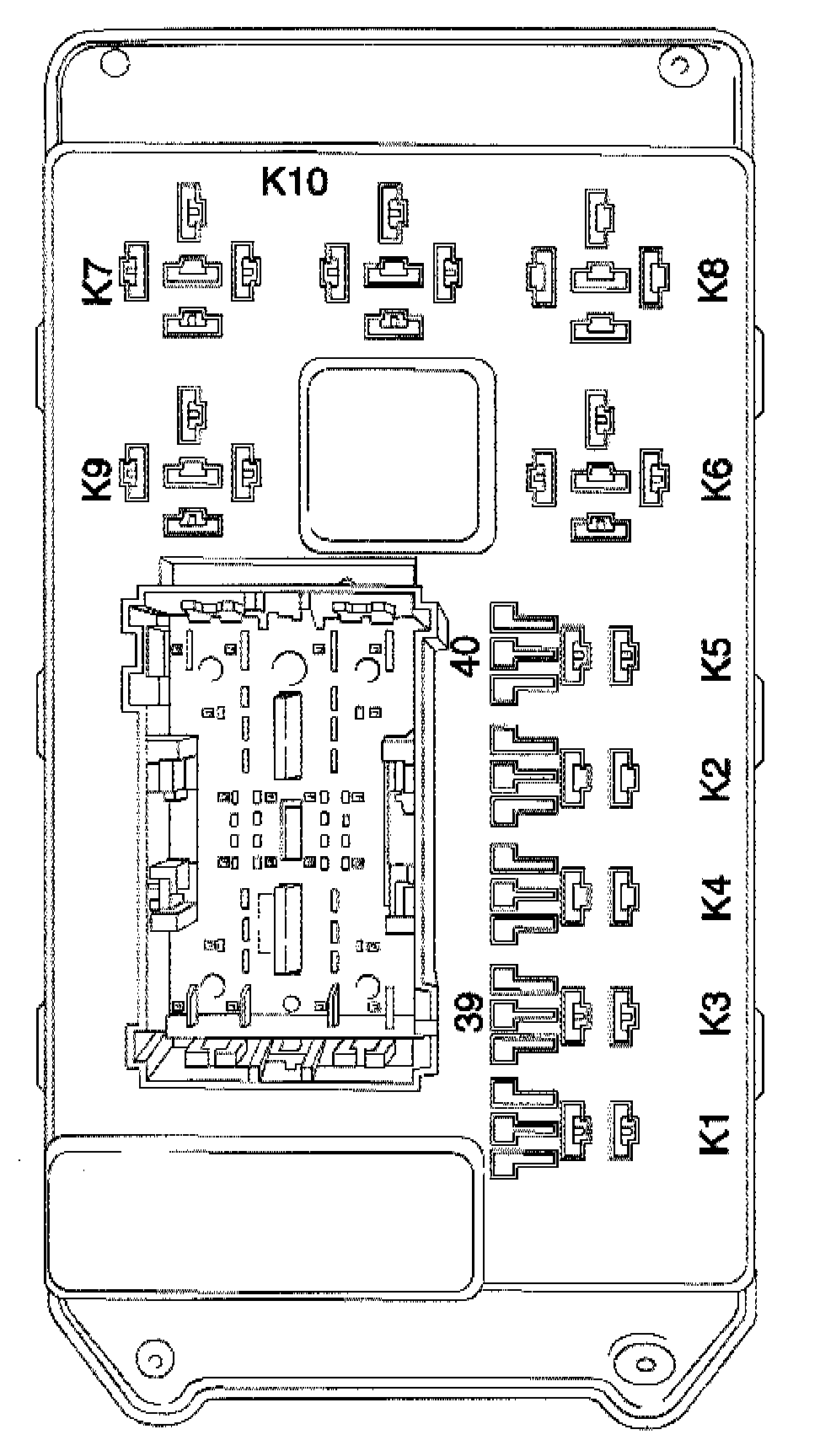

Interior Relays:

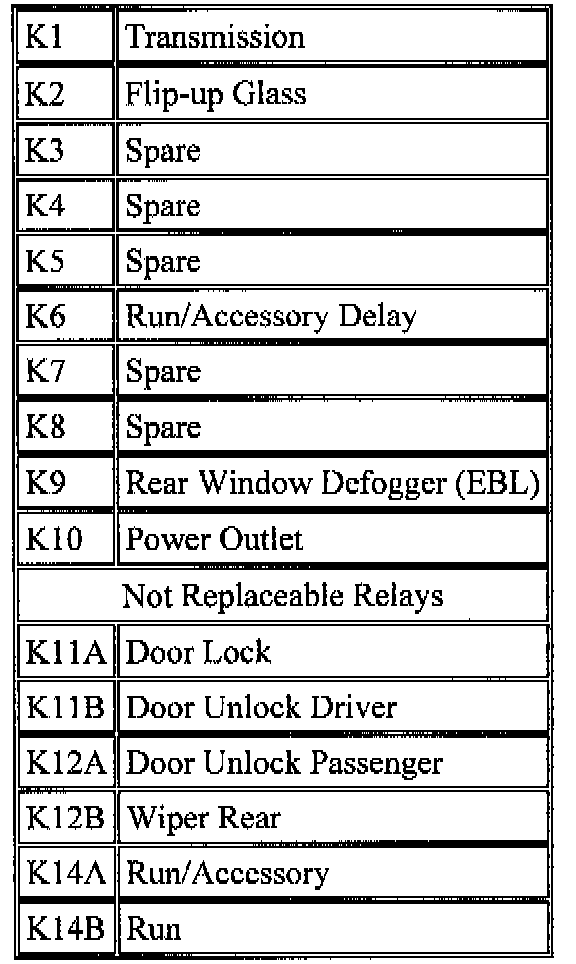

Relays K1 - K14B:
Interior Fuses
The fuse panel is on the lower instrument panel just to the left of the steering column.
Interior Relays
