Description
3.7L & 4.7L

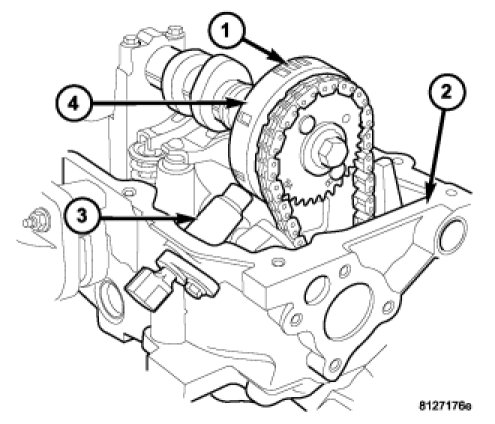

The Camshaft Position Sensor (CMP) (3) is bolted to the right-front side of the right cylinder head (2).
