Switch-Power Window-Left Rear

Component ID: 576
Component : SWITCH-POWER WINDOW-LEFT REAR

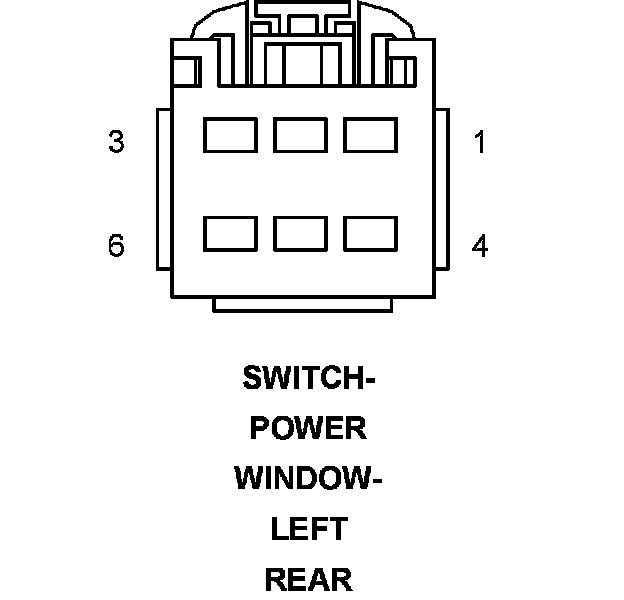

Connector:
Name : SWITCH-POWER WINDOW-LEFT REAR
Color :
# of pins : 6




Pin Circuit Description
1 Q611 16OR/GY MASTER WINDOW SWITCH LEFT REAR (DOWN)
2 Q211 16TN/LB LEFT REAR WINDOW DRIVER (DOWN)
3 Q111 16TN/YL LEFT REAR WINDOW DRIVER (UP)
4 Q411 16OR/WT MASTER WINDOW SWITCH LEFT REAR (UP)
5 - -
6 Q15 16OR/LB WINDOW LOCK OUT SWITCH OUTPUT

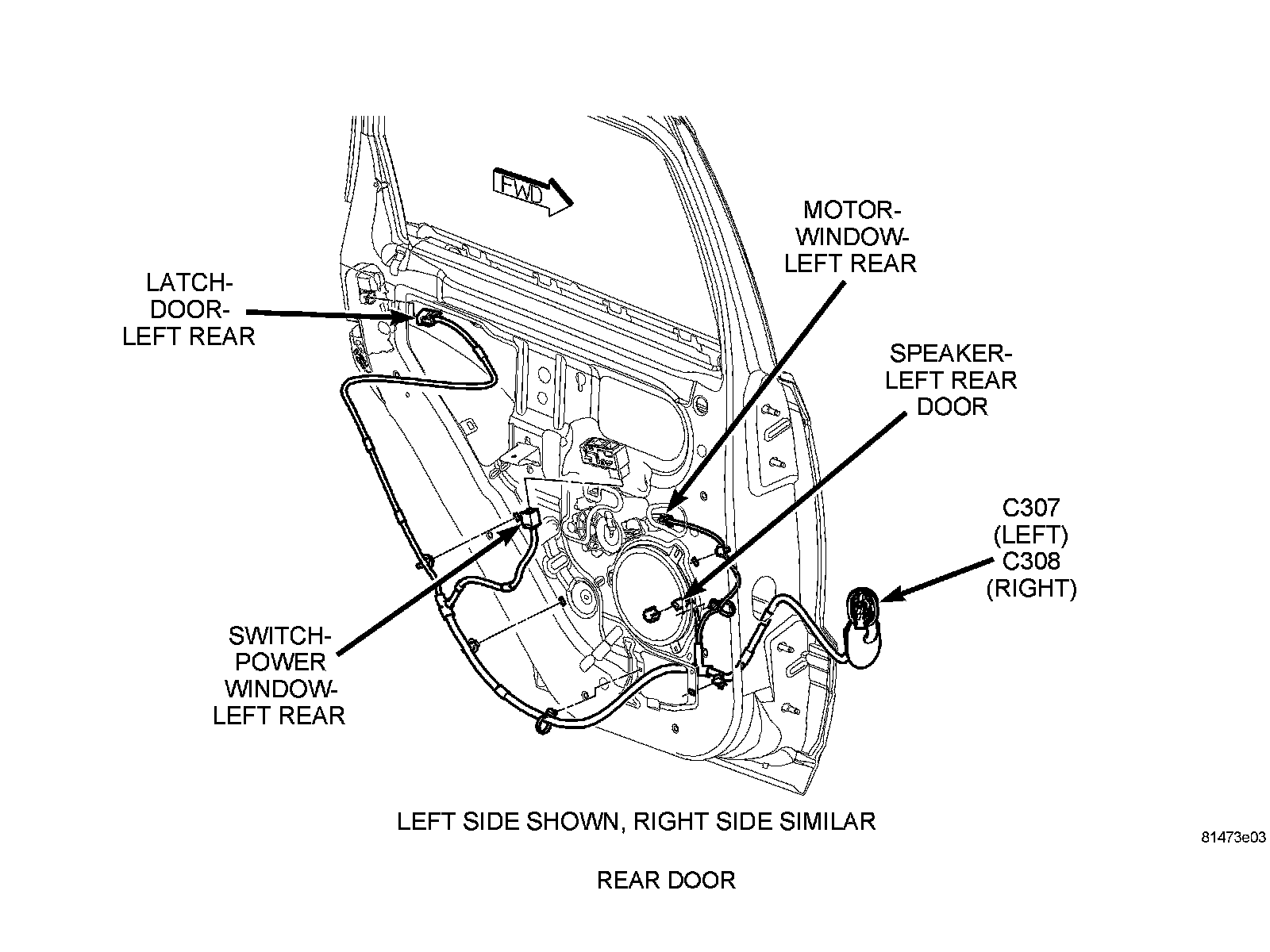

Component Location - 67
