Crankshaft Position Sensor - Installation

5.7L





CAUTION: Before tightening sensor mounting bolt, be sure sensor is completely flush to cylinder block. If sensor is not flush, damage to sensor mounting tang may result.

1. Clean out machined hole in engine block.
2. Apply a small amount of engine oil to sensor o-ring.

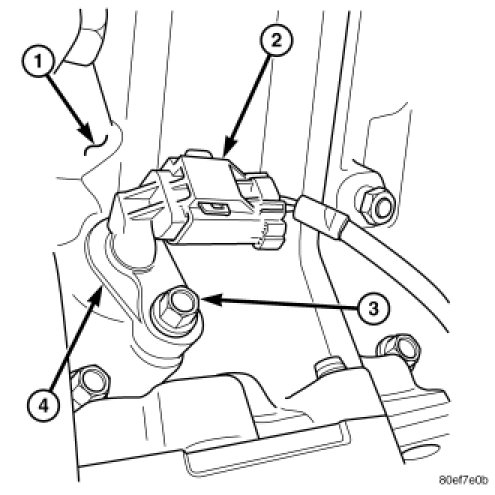

3. Install sensor (4) into engine block (1) with a slight rocking and twisting action.
4. Install mounting bolt and tighten to 28 Nm (21 ft. lbs.) torque(3).
5. Connect electrical connector (2) to sensor.
6. Lower vehicle.
